I. Overview

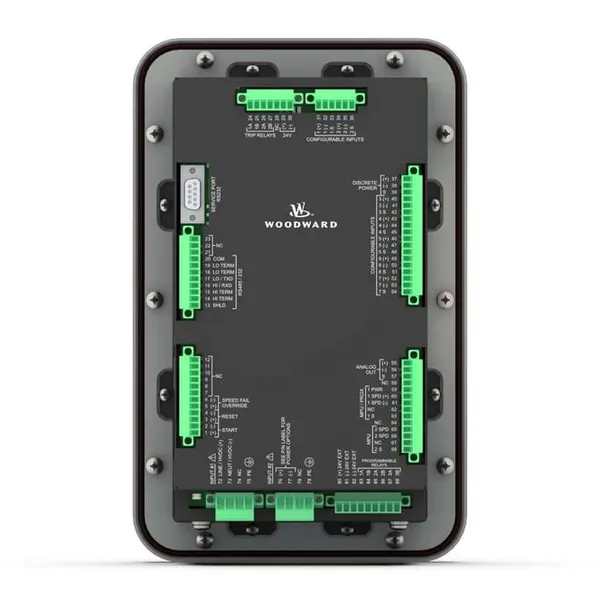

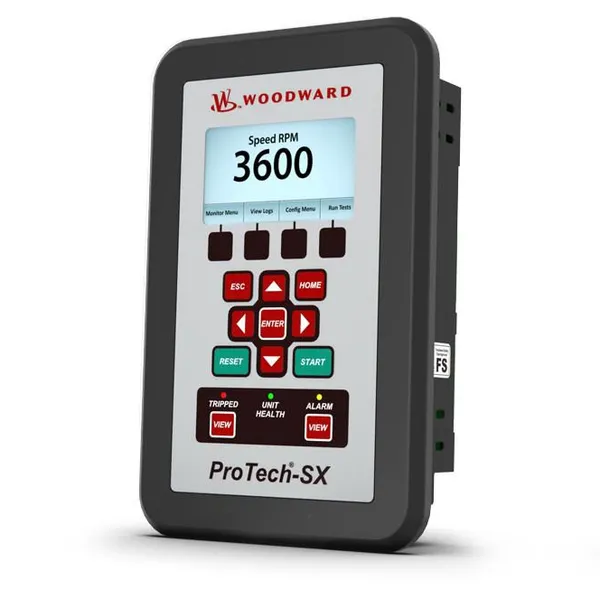

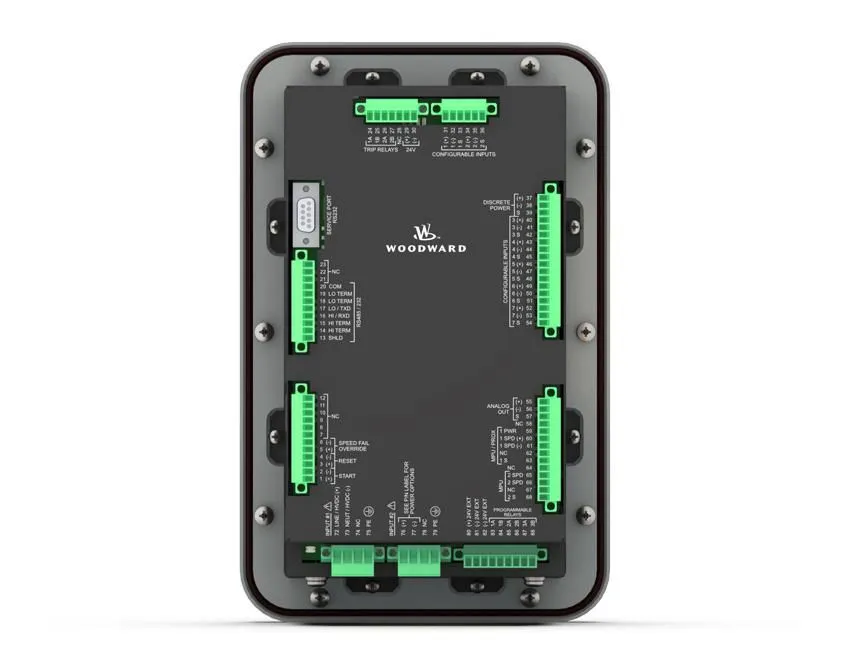

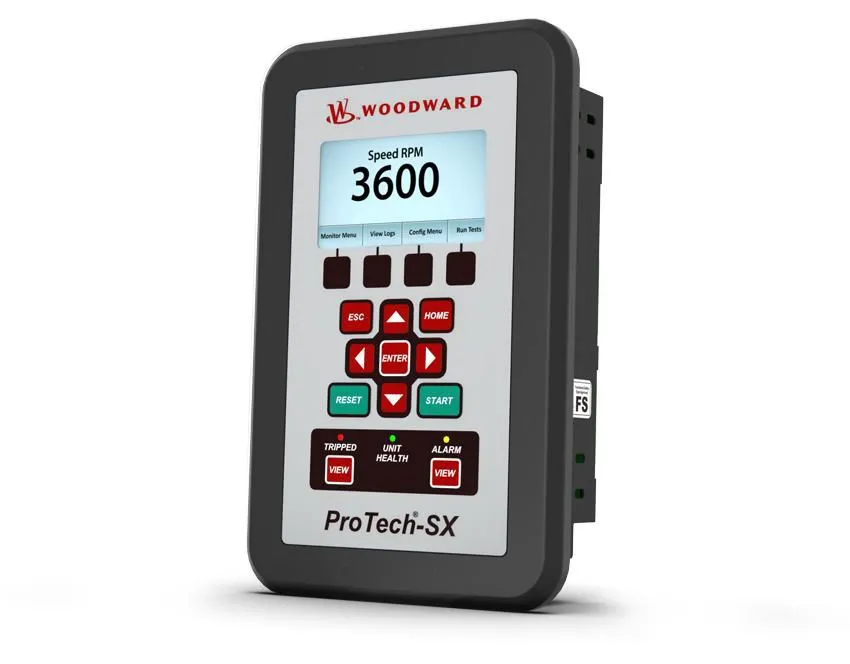

The WOODWARD 8237-1243 is a dedicated turbine controller based on high-precision digital microprocessor technology, belonging to the PROTECH-SX series. Its core positioning is an integrated control and safety protection unit for industrial turbines. Designed specifically for the control and monitoring of equipment such as steam turbines, gas turbines, turbo-generators, and turbo-expanders, this controller integrates functions including speed regulation, load control, synchronization control, and overspeed safety protection. It can achieve refined regulation of turbine operating status by precisely controlling the extraction valves and/or inlet valves of steam turbines.
With its triple redundant architecture, excellent real-time control performance, and comprehensive fault diagnosis capability, it is widely used in core fields such as thermal power plants, industrial energy stations, oilfield drive equipment, pipeline compressors, and power systems for ships and offshore platforms. It provides core technical support for the stable operation, energy efficiency optimization, and safety protection of turbines, serving as a key core component in the industrial energy control system.
The WOODWARD 8237-1243 adopts an industrial-grade highly integrated modular design, integrating core functions such as digital signal processing, multi-mode control logic, real-time data monitoring, fault self-diagnosis, and multi-protocol communication. It features wide voltage adaptability and good environmental compatibility, enabling stable operation in industrial environments ranging from -10℃ to 60℃. It supports seamless integration with DCS/PLC systems, and combined with menu-driven on-site programming functions and an intuitive operator control panel, it greatly reduces the difficulty of system integration and operation and maintenance, providing users with an efficient and reliable full-life-cycle control solution for turbines.
II. Product Features
Integrated Control and Safety Protection: It integrates multiple control modes including speed control, load control, and synchronization control (isochronous mode). It can drive steam inlet valves through staged actuators to achieve precise regulation of turbine speed and load. Built-in with overspeed protection function, it can real-time monitor abnormal speed and quickly trigger shutdown actions to prevent equipment damage or safety accidents. Adopting a triple redundant architecture design, it ensures that the system can still operate normally in the event of a single component failure, greatly improving operational reliability.
High-precision Digital Control and Flexible Programming: Based on a high-performance digital microprocessor and equipped with advanced control algorithms, it can realize complex control logic such as critical speed avoidance and valve limiting to ensure stable turbine operation. It supports on-site programming and flexible configuration, allowing parameter adjustment through the integrated operator control panel on the front of the device (two-line text display, 24 characters per line). The menu-driven software is easy to operate and can quickly adapt to the requirements of different working conditions.
Rich Input/Output and Convenient System Integration: Equipped with a complete set of input and output interfaces, including 16 contact inputs (4 fixed-function and 12 programmable) and 6 programmable 4-20mA current inputs, it can meet the access requirements of diverse signals such as speed, temperature, and pressure. It outputs 0-10V DC analog signals for driving actuators and valves, and also provides multiple relay outputs for triggering shutdowns or alarms. Standard-equipped with RS-232 and Ethernet communication interfaces, it supports mainstream protocols such as Modbus, enabling high-speed data interaction with DCS/PLC systems to facilitate remote monitoring and data acquisition.
Adaptability to Harsh Environments and High Reliability: Adopting industrial-grade high-stability components and a sealed protective structure, it has an IP56 protection rating, providing excellent dustproof and splash-proof performance, suitable for dusty, humid, and other complex industrial environments. Having passed rigorous vibration and shock tests, it can operate stably in vibration-prone environments such as turbine rooms and offshore platforms. With an operating temperature range of -10℃ to +60℃, it can withstand temperature fluctuations in industrial sites, meeting the stringent working condition requirements of core energy fields.
Comprehensive Fault Diagnosis and Safety Certification: It has a complete self-diagnosis function, which can real-time monitor turbine performance data (such as speed, temperature, pressure) and its own working status. Upon detecting a fault, it immediately sends an alarm signal and records fault information, facilitating quick troubleshooting by maintenance personnel. The product has obtained CE and UL certifications, supports explosive environments (with optional enclosure), complies with Class I, Division 2 safety standards, and can be safely used in hazardous industrial environments such as flammable and explosive areas.
Compact Design and Convenient Operation & Maintenance: Adopting a compact structural design with small dimensions (approximately 15.2 cm × 5.1 cm × 20.3 cm) and a weight of only about 0.7 kg, it is easy to install in confined spaces. Key parameters can be flexibly adjusted through the on-site panel or remote communication without complex disassembly. Fault alarm signals are clear and intuitive, and combined with detailed fault logs, it greatly reduces the difficulty of operation and maintenance and shortens downtime.
III. Technical Parameters
1. Core Basic Parameters
Product Model: WOODWARD 8237-1243
Product Type: Industrial Turbine Digital Controller (with overspeed protection function)
Brand Series: WOODWARD PROTECH-SX Series
Core Functions: Turbine speed control, load control, synchronization control, overspeed protection, real-time data monitoring, fault self-diagnosis, remote communication
Control Architecture: Triple Redundant Architecture
Compatible Equipment: Steam turbines, gas turbines, turbo-generators, turbo-expanders, pipeline compressors
Safety Certification: CE certification, UL certification, Class I, Division 2 explosion-proof standard (with optional enclosure)
Application Fields: Thermal power plants, industrial energy stations, oilfield drive equipment, pipeline compressor control, marine propulsion systems, offshore platform backup power systems, etc.
2. Electrical Performance Parameters
Input Voltage: Supports high-voltage/low-voltage (HV/LV) dual-power supply configuration
Input Signal Type: 16 contact inputs (4 fixed + 12 programmable), 6 programmable 4-20mA current inputs; compatible with input from various speed sensors such as magnetic pickups and proximity probes
Output Signal Type: 0-10V DC analog output (for driving actuators/valves), multiple relay outputs (for shutdown/alarm)
Communication Interfaces: RS-232, Ethernet (supports Modbus protocol)
Display Interface: Two-line text display panel, 24 characters per line
Programming Method: Menu-driven on-site programming, remote communication programming
3. Environmental and Physical Parameters
Operating Temperature: -10℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Relative Humidity: 5% ~ 95% RH (non-condensing)
Protection Rating: IP56 (complies with IEC 60529 standard)
Dimensions: 15.2 cm (length) × 5.1 cm (width) × 20.3 cm (height)
Weight: Approximately 0.7 kg
Mounting Method: Panel-mounted (compatible with industrial standard mounting interfaces)
Vibration Resistance: Meets the requirements of vibration environments in industrial turbine sites, and has passed rigorous vibration and shock tests
IV. Working Principle
The core working principle of the WOODWARD 8237-1243 turbine digital controller is a closed-loop control process of multi-source signal acquisition - real-time calculation and decision-making - precise drive control - safety monitoring and protection. Through the coordinated operation of digital microprocessor modules, signal acquisition modules, drive output modules, communication modules, and safety protection modules, it achieves refined control and safety protection of the entire turbine operation cycle. The specific working process can be divided into five core stages:
Stage 1: Multi-source Signal AcquisitionThe controller real-time collects turbine operation data (speed, temperature, pressure), upper-level system control commands, and equipment status signals through built-in contact input interfaces, 4-20mA current input interfaces, and speed sensor interfaces. The signal acquisition module performs filtering, amplification, and verification processing on the received signals, eliminating signal clutter caused by electromagnetic interference in industrial sites, and converting them into standard signals recognizable by the digital microprocessor, providing accurate data support for subsequent calculation and decision-making.
Stage 2: Real-time Calculation and Decision-makingBased on the preset control mode (speed control, load control, or synchronization control), the digital microprocessor compares and calculates the collected real-time data with upper-level commands, and generates corresponding drive control commands in combination with built-in high-precision control algorithms (including critical speed avoidance and valve limiting logic). At the same time, the safety monitoring unit real-time compares key parameters such as speed with preset safety thresholds to determine whether the equipment is in a safe operating state.
Stage 3: Precise Drive ControlThe drive output module converts the control commands generated by the microprocessor into electrical signals (0-10V DC analog signals) that can drive actuators, and controls the opening degree of steam inlet valves or extraction valves through staged drive methods to achieve precise regulation of turbine speed and load. During the regulation process, the controller real-time monitors the action feedback signals of the actuators and dynamically optimizes drive parameters to ensure a stable and non-overshooting regulation process.
Stage 4: Safety Protection TriggeringIf the safety monitoring unit detects that the turbine speed exceeds the preset overspeed threshold or other fatal faults occur, it will immediately trigger the triple redundant safety protection mechanism, send an emergency shutdown signal through the relay output module, quickly cut off dangerous working conditions, and prevent equipment damage or the expansion of safety accidents. Meanwhile, the system automatically records key information such as fault trigger time and fault parameters, providing a basis for subsequent fault troubleshooting.
Stage 5: Status Feedback and CommunicationThe controller feeds back real-time turbine operation parameters (speed, load, valve opening), its own working status, and fault information to the upper-level DCS/PLC system through RS-232 or Ethernet interfaces, facilitating remote monitoring and global scheduling by operators. At the same time, on-site operators can view equipment status through the front text display panel and flexibly adjust control parameters through the menu-driven interface to achieve on-site operation and maintenance and debugging.
