Home > Construction & Decoration > Fire Retardant & Fireproof Material > Fireproof Board > Lightweight Calcium Silicate Board for Ceiling and Wall Systems in Commercial Buildings

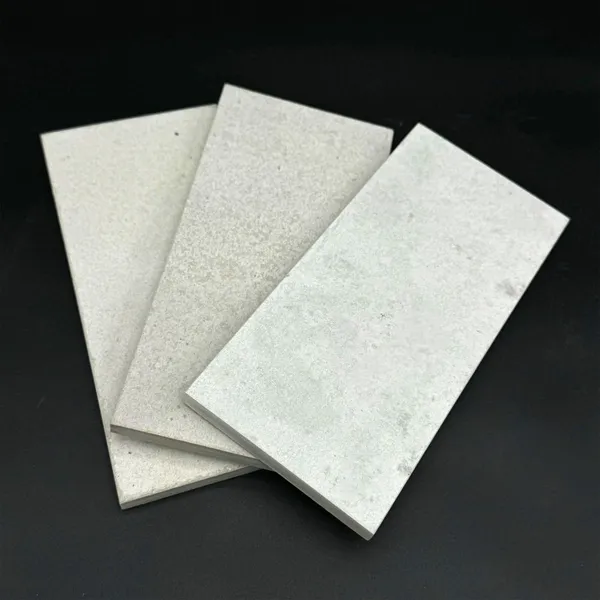

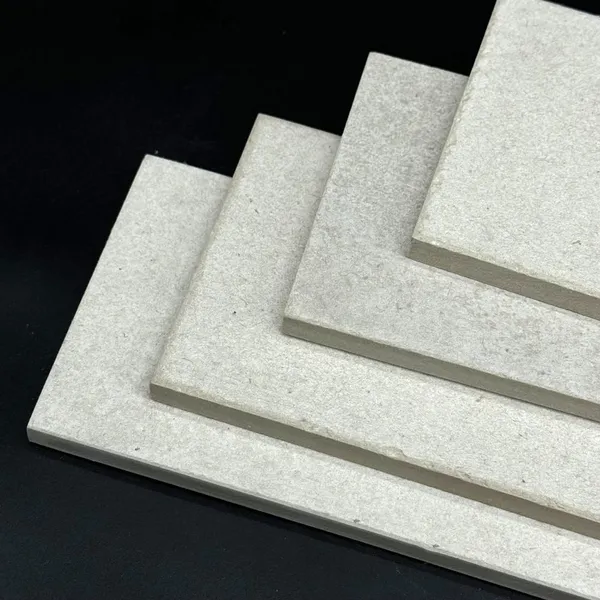

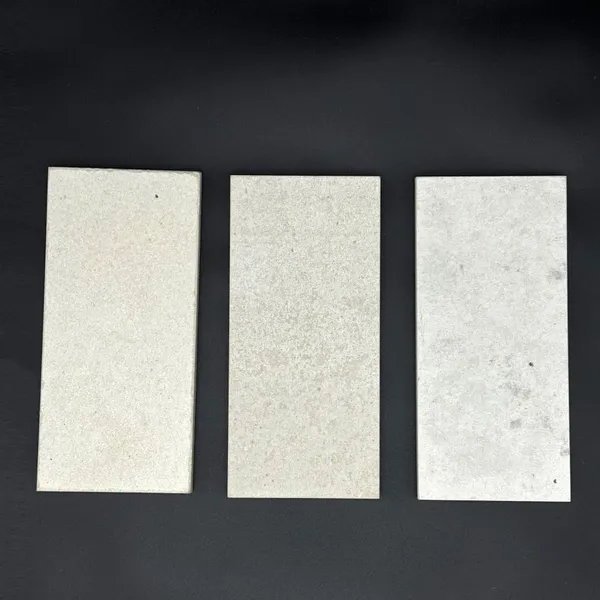

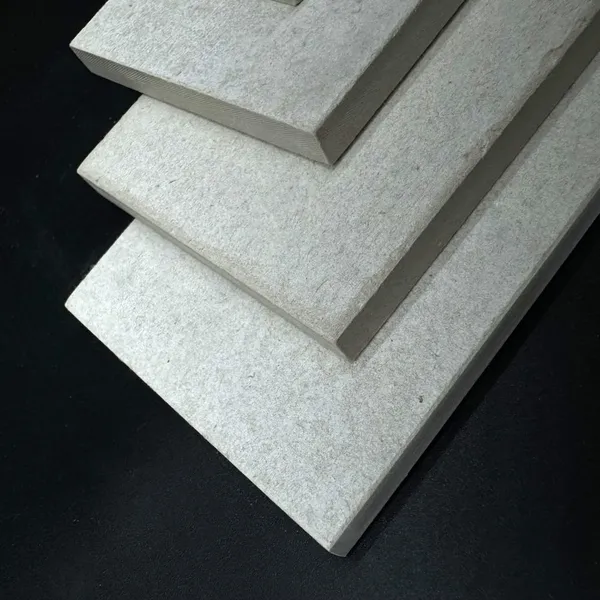

Lightweight Calcium Silicate Board for Ceiling and Wall Systems in Commercial Buildings
US$ 2.3 - 6.8
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Material:
Other, Calcium Silicate
Thickness:
6mm, 8mm, 10mm, 12mm
Size:
1220x2440mm, Customizable
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
Calcium Silicate Fireproof Board for HVAC Duct Insulation and Fire ProtectionUS$ 2.3 - 6.8MOQ: 1000 Pieces -
Industrial-Grade Calcium Silicate Panel for Thermal Insulation in Power PlantsUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Calcium Silicate Insulation Panel for High-Temperature Applications in Industrial SettingsUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Non-Combustible Calcium Silicate Panel With Low Thermal Conductivity for Energy EfficiencyUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Fire-Resistant Calcium Silicate Board With Excellent Thermal Insulation Properties for BuildingsUS$ 2.3 - 6.8MOQ: 1000 Pieces
Material
Other, Calcium Silicate
Thickness
6mm, 8mm, 10mm, 12mm
Size
1220x2440mm, Customizable
Application
Commercial Ceiling & Wall Systems
Fire Resistance
Class A Non-combustible
Moisture Resistance
High Humidity Environments
Certifications
ISO9001, ISO14000
Surface
Smooth, Painter-friendly
Weight
Lightweight Design
As a leading manufacturer with ISO-certified facilities in Shanxi, Shanxi Pano Building Materials specializes in high-performance construction solutions for global markets. Our lightweight calcium silicate boards deliver exceptional fire safety and durability for modern commercial interiors, combining easy installation with long-term reliability to reduce project timelines and maintenance costs.
- Superior Material Composition: Engineered with reinforced calcium silicate core for enhanced structural integrity and dimensional stability in fluctuating temperatures.
- Precision Dimensions: Standard 1220x2440mm panels with thickness options from 6mm to 12mm ensure seamless integration with various framing systems.
- Multi-Surface Application: Ideal for suspended ceilings, partition walls, and fire-rated assemblies in offices, hospitals, and retail spaces.
| Property | Performance Data |
| Fire Rating | ASTM E84 Class A (Flame Spread ≤25) |
| Density | Approx. 1.0-1.2 g/cm³ |
| Thermal Conductivity | 0.065 W/(m·K) |
| Moisture Absorption | <35% after 24h immersion |
Key advantages include reduced structural load (30% lighter than cement boards), mold resistance in humidity up to 90% RH, and tool-friendly workability for on-site adjustments. Architects benefit from smooth surfaces ready for paint or veneer finishes, while contractors appreciate the dust-free cutting and screw-holding capacity.
Backed by annual exports exceeding US$2.5 million to 15+ global markets including North America and Western Europe, our 30,000+ sqm factory employs rigorous quality control. With shipments available from Tianjin/Qingdao ports, we provide consistent supply for large-scale projects. Choose our boards for code-compliant, sustainable building envelopes that minimize lifecycle costs.
FAQ:
-
Q: What framing systems are compatible?
A: Compatible with steel studs, wood furring, and grid systems. Minimum support spacing: 600mm for ceilings. -
Q: Is additional waterproofing required for wet areas?
A: Boards naturally resist moisture but recommend sealants in showers/kitchens per local codes. -
Q: Can these be curved for architectural features?
A: Yes, minimum curvature radius varies by thickness (e.g., 1.5m for 8mm boards). -
Q: What paint types adhere best?
A: Latex, acrylic, and epoxy coatings bond effectively without priming. -
Q: How do you ensure shipment protection?
A: Waterproof pallet wrapping with edge guards prevents transit damage. -
Q: Are custom sizes available?
A: Yes, request non-standard dimensions during quotation.
