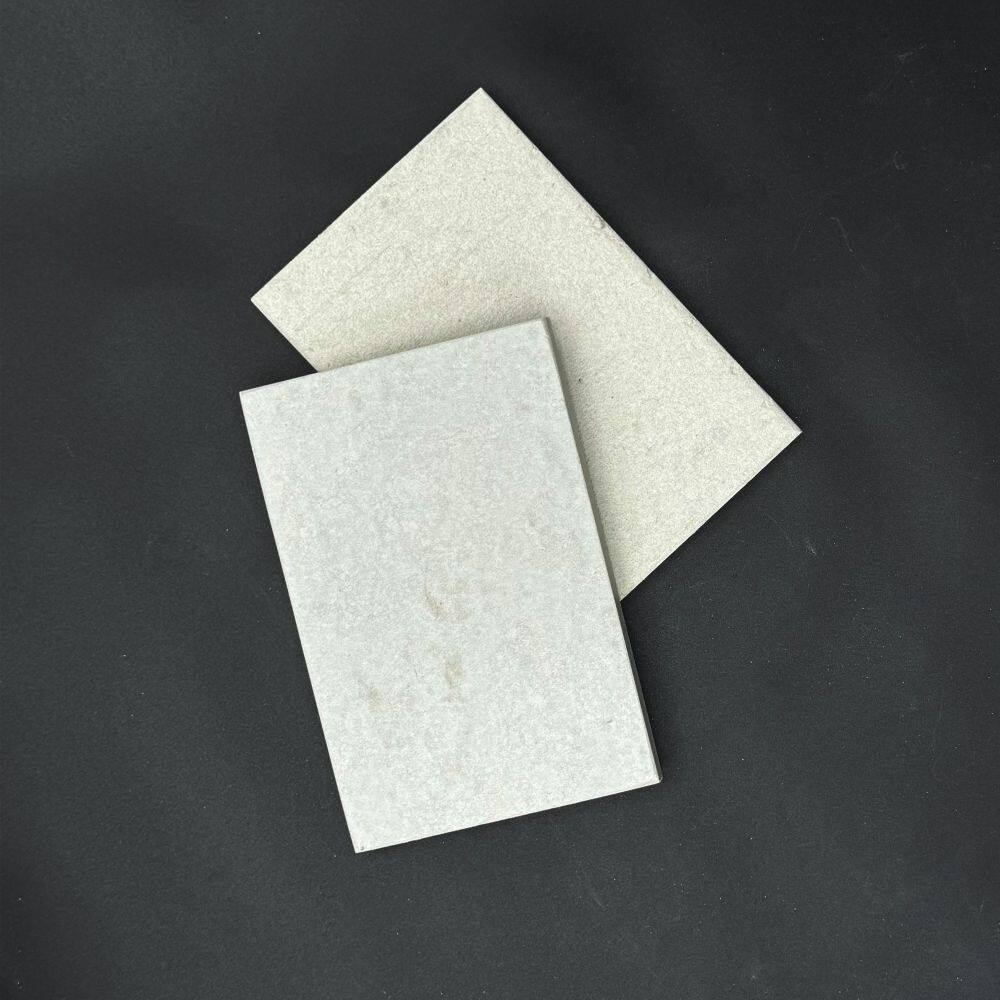

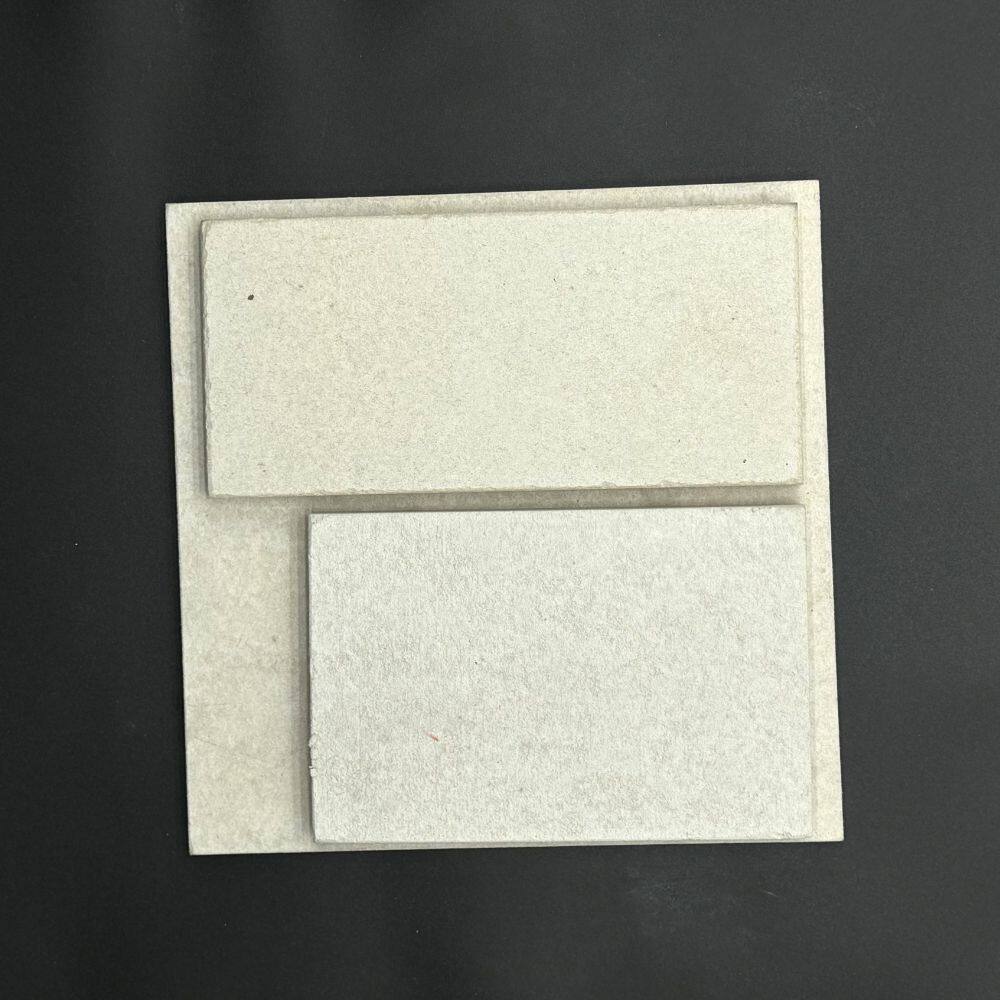

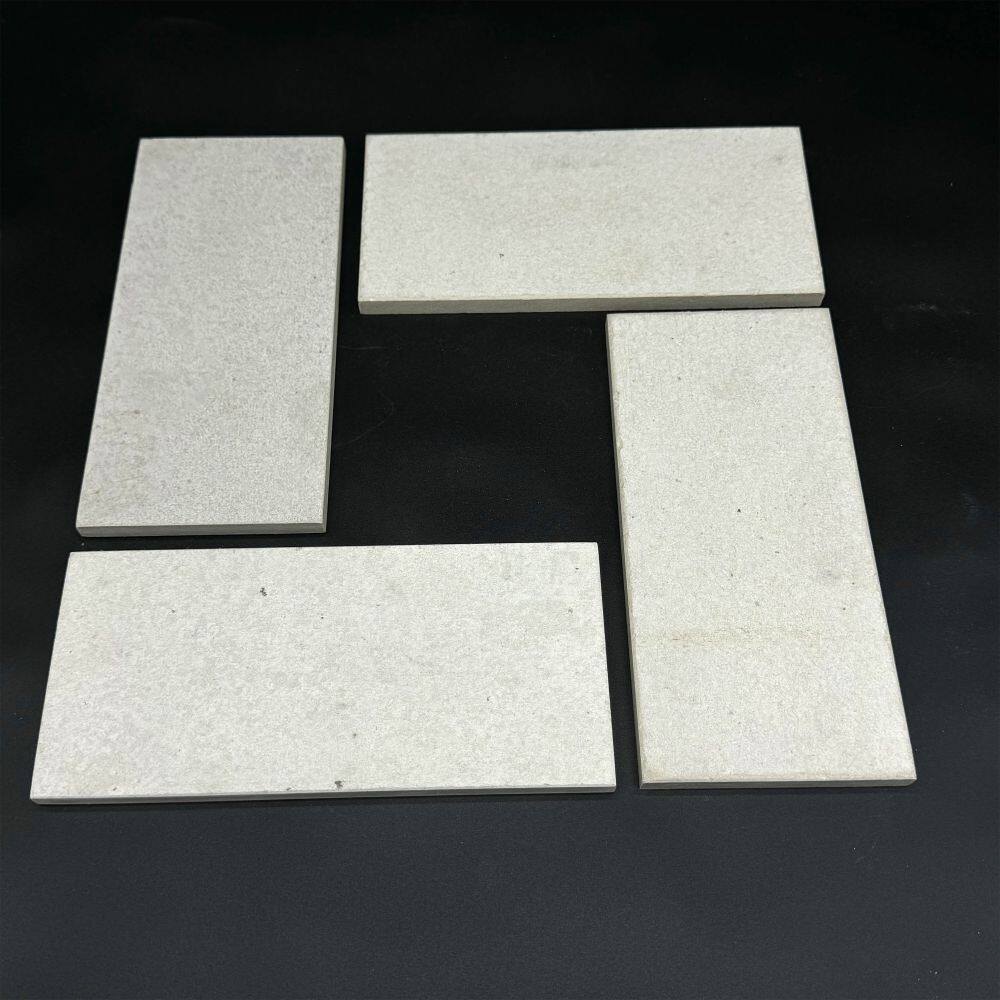

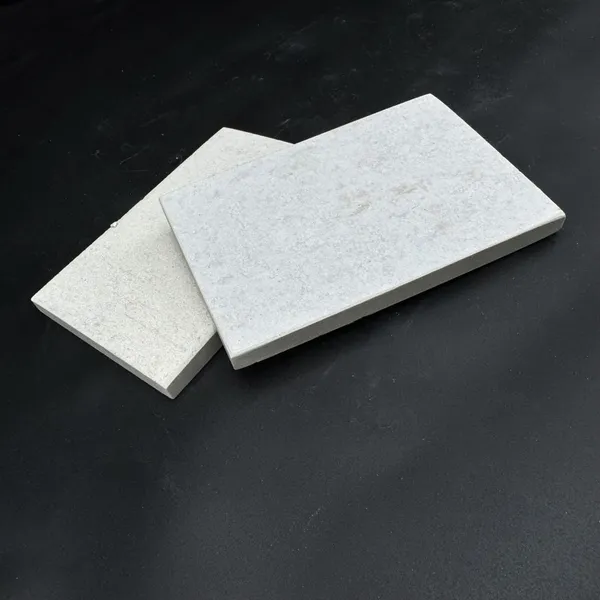

Help CenterIndustrial-Grade Calcium Silicate Panel for Thermal Insulation in Power Plants
Related Products
-
Calcium Silicate Insulation Panel for High-Temperature Applications in Industrial SettingsUS$ 2.3 - 6.8MOQ: 1000 Pieces -
Non-Combustible Calcium Silicate Panel With Low Thermal Conductivity for Energy EfficiencyUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Fire-Resistant Calcium Silicate Board With Excellent Thermal Insulation Properties for BuildingsUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Customizable Calcium Silicate Fireproof Board in Various Thicknesses, Ideal for Industrial Furnace InsulationUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Calcium Silicate Fireproof Board for Building Facades, Fire Doors, and Tunnel Linings, BMiddle DensityUS$ 2.3 - 6.8MOQ: 1000 Pieces
Shanxi Pano Building Materials Co., Ltd, established in 2021, specializes in manufacturing premium industrial insulation solutions. Our Industrial-Grade Calcium Silicate Panel is engineered for extreme thermal management in power plants, delivering exceptional heat resistance and structural stability. With a 30,000-50,000 m² facility and rigorous ISO certifications, we export globally while maintaining stringent quality control. This product exemplifies our commitment to enhancing operational safety and energy efficiency for clients across North America, Europe, Asia, and beyond.
Designed for high-temperature environments, these panels offer:
- Superior Thermal Resistance: Withstands temperatures up to 1000°C, preventing heat loss in boilers, turbines, and exhaust systems.
- Low Thermal Conductivity (0.05-0.07 W/m·K) significantly reduces energy consumption.
- Non-combustible A1 Fire Rating ensures compliance with strict industrial safety standards.
- Easy Installation: Pre-cut or customizable dimensions minimize on-site labor time.
Key technical specifications include:
| Parameter | Value |
|---|---|
| Density | 220-280 kg/m³ |
| Compressive Strength | ≥0.5 MPa |
| Linear Shrinkage | ≤2% (650°C) |
| Standard Sizes | 600x300mm, 1200x600mm |
Applications extend to boiler casings, chimney linings, duct insulation, and equipment protection. The panels’ resistance to thermal shock and corrosion minimizes maintenance costs, while their lightweight nature (compared to traditional ceramics) simplifies retrofitting in existing infrastructure. Custom thicknesses (10-100mm) and machining services accommodate project-specific requirements.
Backed by US$2.5-5 million annual exports and a 101-200 person workforce, we guarantee consistent quality through automated production lines. Shipments via Tianjin/Qingdao ports reach major markets within 15-30 days. Partner with us for:
- 20% longer service life versus standard insulation materials
- Technical support for complex installations
- Bulk order discounts for power plant projects
FAQ:
Q1: What is the maximum continuous operating temperature?
A1: 1000°C with minimal thermal degradation.
Q2: Are custom sizes available?
A2: Yes, panels can be pre-cut to your drawings.
Q3: How does it compare to ceramic fiber boards?
A3: Higher mechanical strength and lower dust emission.
Q4: Is the product asbestos-free?
A4: Absolutely, compliant with international health standards.
Q5: What packaging is used for export?
A5: Wooden pallets with waterproof wrapping.
Q6: Can it be used in humid environments?
A6: Yes, hydrophobic additives are optional.
Q7: Do you provide installation guides?
A7: Detailed manuals and videos are supplied.
Q8: What is the lead time for 500m² orders?
A8: Typically 7-10 days after confirmation.
