The Blueprint Cabinet BP-C535 is engineered specifically for the general contractor, the site superintendent, and the project manager who need their plans protected but easily accessible in the field.
Built for the Field: Key Rugged Features
When we designed the BP-C535, we focused on "Field Survival." In the UK and international markets, site offices are often temporary and subject to movement. This cabinet is built to handle that lifestyle.
1. Reinforced Load-Bearing Chassis

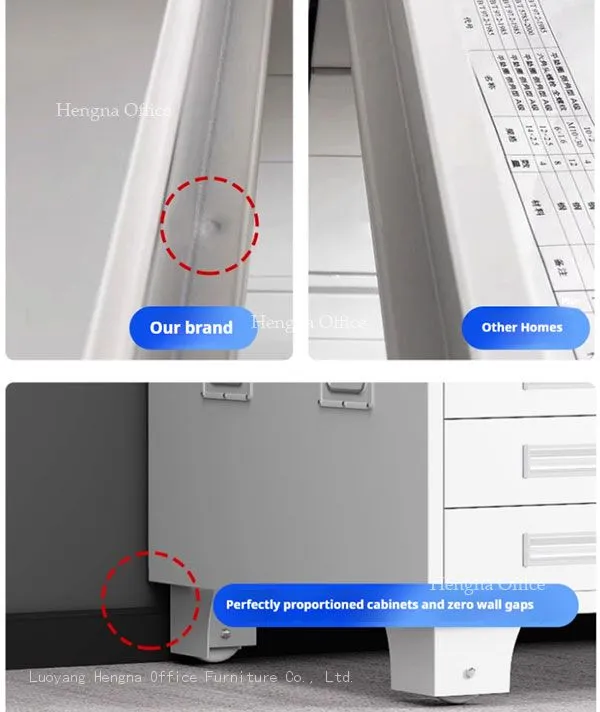

At the heart of the BP-C535 is a reinforced bottom structure. On a construction site, files are often heavy, containing hundreds of sets of MEP (Mechanical, Electrical, and Plumbing) drawings. Our reinforced beams prevent the cabinet from warping, even if the floor of the site trailer isn't perfectly level.
2. Heavy-Duty Steel Side Handles
Mobility is essential. As projects move from Phase 1 to Phase 2, site offices often get rearranged. The BP-C535 features integrated all-steel side handles. These aren't just for show; they are bolted to the internal frame, allowing two workers to easily reposition the cabinet without damaging the exterior shell.

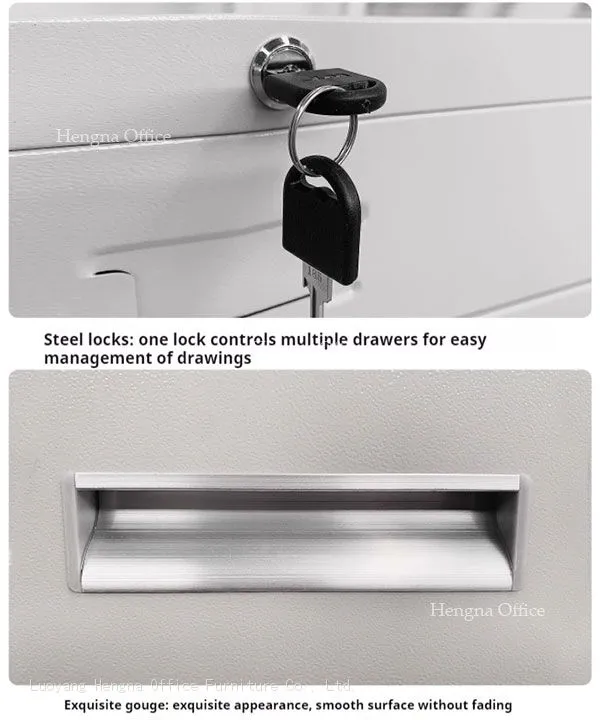

3. High-Security Steel Locking System
Vandalism or unauthorized access to sensitive project plans can stall a job. The BP-C535 uses a centralized steel lock that secures all drawers at once. It’s a simple, rugged mechanism that doesn’t jam even in dusty conditions.
Comparison: Why the BP-C535 Outperforms Standard Office Files
| Feature | BP-C535 (Rugged Series) | Standard Office File |
| Steel Grade | High-Tensile SPCC (Thickened) | Standard Grade Steel |
| Drawer Rails | Cold Rolled Double-Track | Single-Track Plastic Rollers |
| Mobility | Dual Side Steel Handles | No Handles |
| Environment | Dust & Vibration Resistant | Indoor Only |
| Support | Custom UK Specs Supported | Mass Market Only |

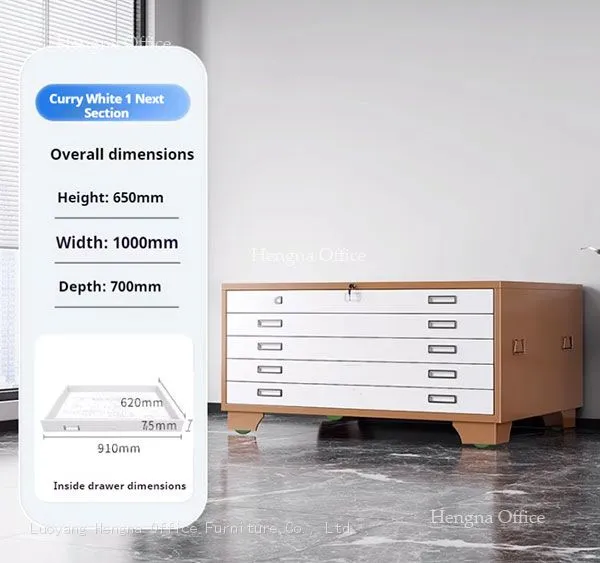

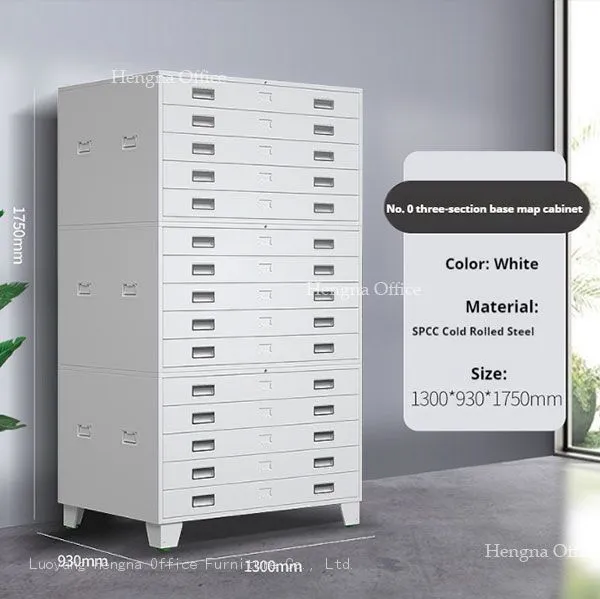

Technical Data & Dimensions
Model: BP-C535 (Field Edition)
Material: Heavy-duty Cold Rolled Steel
Finish: Anti-corrosion industrial powder coat
Drawer Depth: Optimized for A0 & Arch E Drawings
Hardware: Industrial-grade rollers and steel recessed pulls
Customization for the UK & International Market
We understand that UK construction standards often require specific labeling or sizing (like Arch E or custom sheet sizes). We offer Custom Support for the UK market, allowing you to specify:
Internal Dividers: Split drawers into smaller sections for A1 or A2 sets.
Anti-Tip Safety: Integrated counterweights to prevent the cabinet from tipping when multiple drawers are open.
Branding: Powder coating in your company’s corporate colors (e.g., Safety Yellow or High-Vis Blue).
Engineered for Easy Access (Even with Gloves)
Time is money on a job site. You don't have time to faff around with sticky drawers. The BP-C535 uses a double-track roller system. This ensures that even if you are wearing work gloves, the drawer pulls open smoothly with one hand. The "Exquisite Gouge" handle design is wide enough for easy grip but recessed to save space in narrow trailers.
Dust-Resistant Engineering
Job sites are dusty. Our drawer fronts are designed with a tight-seal overlap. This helps keep sawdust, drywall dust, and moisture out of your expensive blueprint sets, ensuring your drawings stay legible from the ground-breaking ceremony to the final inspection.
FAQ: Construction Site Edition
Q1: Can this cabinet be stacked to save space in a small site trailer?
Absolutely. The BP-C535 is designed with a modular top-plate. You can securely stack two units on top of each other to double your storage capacity while keeping the same footprint.
Q2: Is the finish resistant to scratches and rust?
Yes. We use an industrial-grade, scratch-resistant powder coating. It is specifically treated to resist rust, making it ideal for the humid or damp environments often found in temporary construction structures.
Q3: How heavy are the drawers when empty?
The drawers are made of solid steel but are surprisingly light to handle due to the high-efficiency roller tracks. However, once loaded with 50+ blueprints, the weight provides the stability needed for smooth, heavy-duty operation.
If you need a "set it and forget it" storage solution that can handle the grit of a construction site, the Blueprint Cabinet BP-C535 is the industry choice. It’s rugged, mobile, and built to last the entire lifecycle of your project.
