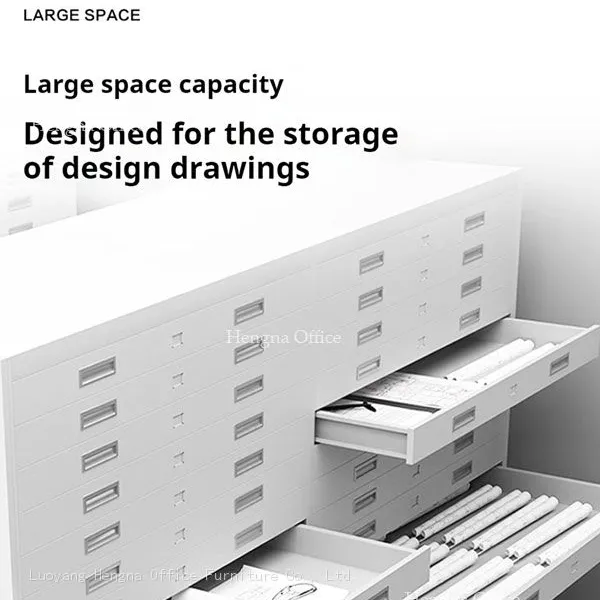

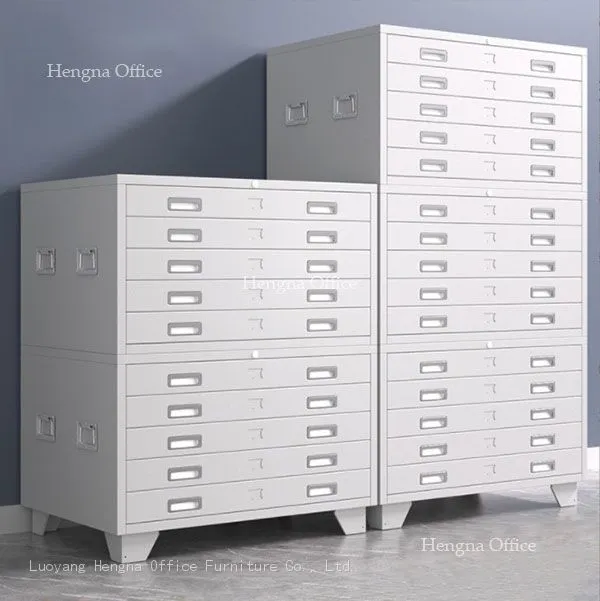

The Architectural Storage Cabinet BP-A364 is our widest standard model, specifically built to handle the sheer scale of A0-size engineering blueprints and technical schematics.
At 1300mm wide, this cabinet provides the extra "breathing room" that prevents the edges of your large-format plans from getting frayed or torn during filing.
High-Capacity Double Tracks: The Secret to Stability
Most standard cabinets use a single-track system. However, engineering firms often store hundreds of heavy-bond paper sets. The BP-A364 features High-Capacity Double Tracks.
Why Double Tracks? They distribute the weight of the drawer across two parallel steel rails. This prevents the drawer from "tilting" when you pull it out, even if it is loaded with 50kg of technical drawings.
Zero-Friction Glide: Despite the heavy load, the double-track system allows for a smooth, one-finger pull operation.
Technical Performance Data
| Specification | Metric Value | Engineering Benefit |

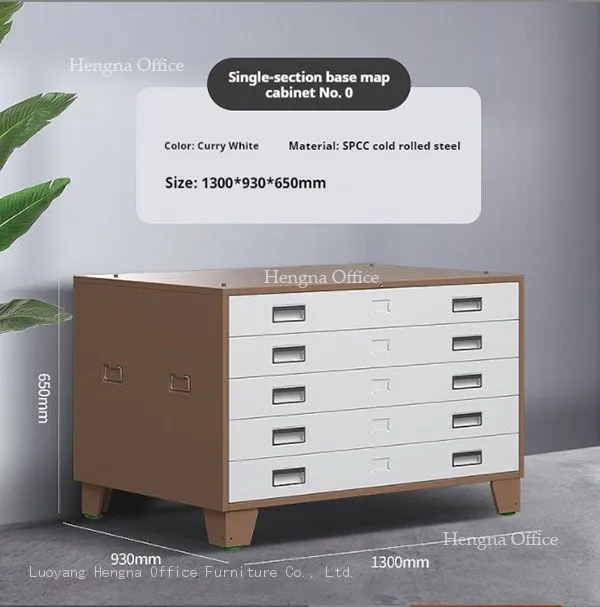

| External Width | 1300mm | Fits A0+ Oversized Drawings |
| Drawer System | Reinforced Double-Track | Superior Weight Distribution |
| Steel Thickness | 0.8mm - 1.2mm (Customizable) | Industrial Grade Rigidity |
| Loading Capacity | 45kg+ Per Drawer | Safe for Thick Blueprint Sets |

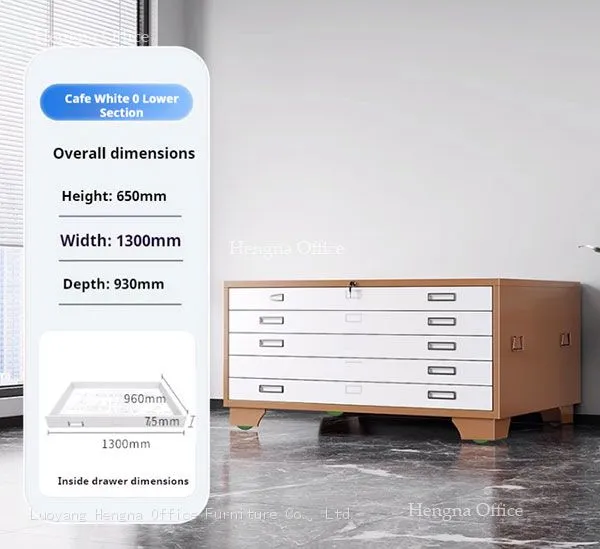

| Internal Depth | 930mm | Prevents "Plan Overhang" |
Built for Civil & Mechanical Excellence
1. Extra-Wide Format (A0 & Beyond)
Standard cabinets can be a tight squeeze for A0 paper (841 x 1189mm). The 1300mm width of the BP-A364 ensures that you have over 100mm of clearance. This makes it much easier to organize files and ensures that the corners of your important technical drawings never get crushed against the sides.
2. Cold-Rolled Steel Durability
Engineering offices are busy places. Equipment needs to be tough. Our cabinets are made from premium cold-rolled steel with an anti-corrosion finish. Whether your office is in a city skyscraper or near a dusty industrial plant, this cabinet is built to resist wear, tear, and rust.

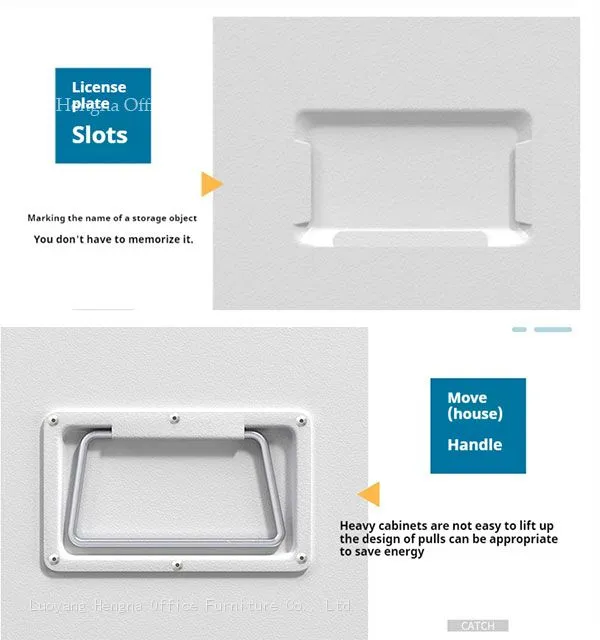

3. Integrated Labeling & Organization
In a project with thousands of parts or miles of pipeline, finding the right page is vital. The BP-A364 includes precision label holders on every drawer. This allows your team to index projects by "Phase," "System," or "Revision Date" for lightning-fast retrieval.
The Professional Choice for Engineering Firms
The BP-A364 isn't just a drawer; it's a productivity tool. It keeps your workspace organized, protects your expensive physical backups, and presents a professional image to clients when they visit your office.
FAQ: The Engineering Edition
Q1: Can this cabinet handle heavy plotting paper or Mylar?
Yes. Mylar and heavy plotting papers are much heavier than standard office paper. The reinforced double-track system is specifically designed to handle these heavier materials without the drawers sagging or sticking.
Q2: Is the 1300mm width the total size including handles?
1300mm is the width of the cabinet body. Because we use recessed "Gouge Handles," the cabinet remains compact and has a smooth profile with no parts sticking out that could catch on clothing.
Q3: Can we lock individual drawers separately?
The BP-A364 comes with a central "Master Lock" system for efficiency. However, for engineering firms with high security needs, we can customize the unit with individual locks for each drawer upon request.
The BP-A364 Architectural Cabinet is the professional’s choice for large-scale document management. With its 1300mm wide frame and heavy-duty double tracks, it is built to survive the demands of any busy engineering department.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
