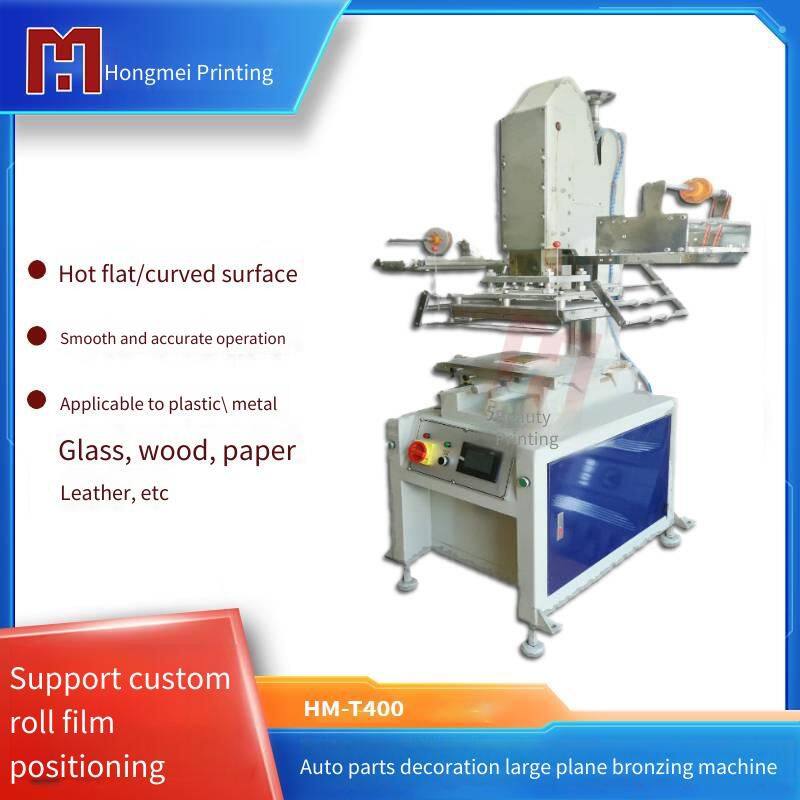

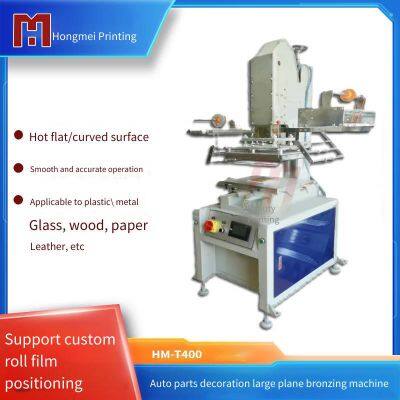

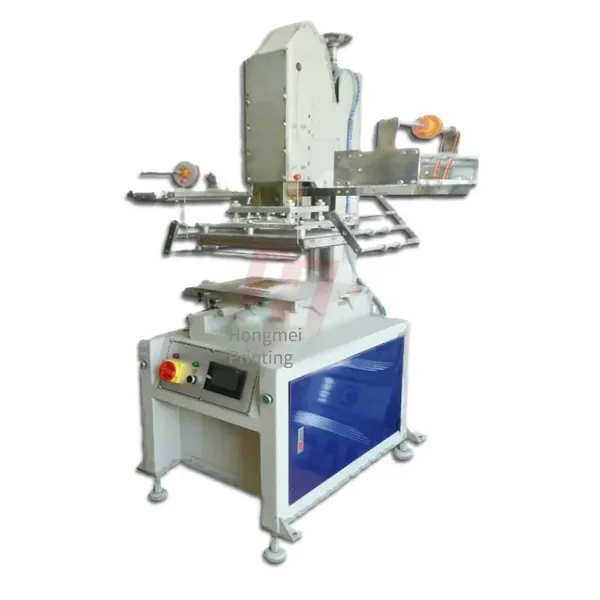

Help CenterH-400 Flat Automatic Gold Stamping Machine, Hot Press Stamping Machine for Plastic Shells, Gold Stamping Machine for Auto Parts
Related Products
-
Hongmei Washing Machine Lid Ring Decoration With Gilt Silver Edge, Gold Foil Stamping on Car Wheel Hub Caps, Automatic Rotation for Smooth DockingUS$ 6107.69 - 6123.08MOQ: 1 Unit -
Hongmei Single-color Pad Printing Machine, Printing Machine for Syringe Scale Lines, Marking Machine for Medical TubesUS$ 1384.62 - 1415.38MOQ: 1 Unit
-
Hongmei Automatic Plate Printing Machine, Disposable Plate Gilding Machine, Plastic Plate and Ceramic Bowl Embossing MachineNegotiableMOQ: 0 Unit
-
Hongmei Four-color Pad Printing Machine for Catheter Scale Rings, Plasma Treatment Printing Machine for Rubber Hoses, Capable of Full-circle and Single-sided PrintingNegotiableMOQ: 0 Unit
-
Hongmei Large-scale Servo Eight-color Pad Printing Machine, Logo Printing Machine for New Energy Charging Piles, Automatic Rotating Multi-sided Printing MachineNegotiableMOQ: 0 Unit
Functional Features:
1. The bronzing machine is controlled by Siemens LOGO! Controller to ensure the stable and reliable operation of the machine.
2. It adopts Omron temperature controller to ensure stable heating temperature and high-quality bronzing.
3. The toggle mechanism design consumes less compressed air and provides strong pressure.
4. The bronzing pressure, temperature, and pressing time are adjustable.
5. The workbench can move forward and backward automatically for safe and fast operation.
6. The workbench can be adjusted forward and backward, left and right, and rotated.
7. Automatic paper feeding and collecting, and adjustable.
8. After installing a photoelectric tube (electric eye), it can perform tracking and in-place control on the thermal transfer paper with contacts.
9. The height of the bronzing head can be adjusted for bronzing larger workpieces.
10. The flat bronzing machine uses an air-oil conversion device, and the shuttle workbench drives the workpiece to rotate smoothly for bronzing.
11. It is equipped with a safety protection device to ensure the safety of the operator.
Supply Flat Bronzing Machine H-400, the designated bronzing machine by Gree, and the special bronzing machine for Gree Electric Appliances
Technical Parameters:
Bronzing plate area: 300×400mm
Bronzing plate height adjustment range: 380mm
Bronzing temperature selection range: Room temperature ~ 280°C
Bronzing paper winding length: ≤450mm
Bronzing pressure: 2500kgf (7bar)
Bronzing speed: 900pcs/hr
Power supply: 110/220V 60/50Hz
Heating power: 2500W
Air consumption: 142L/min
Overall dimensions: 870×1050×1830mm
Weight: 407kg
