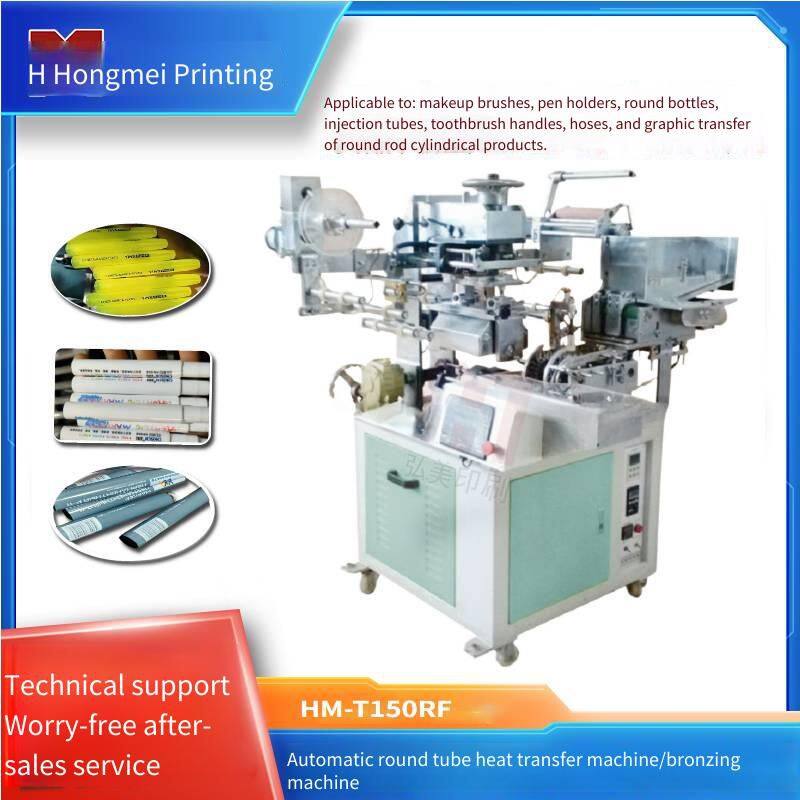

Fully automatic pen barrel thermal transfer printing machine, round tube printing machine, logo thermal transfer printing machine manufacturer for markers and whiteboard pens
Functional features:
1. Controlled by a programmable controller, with a programmable terminal LCD display, and built - in various operation control programs and adjustable parameters.
2. The rubber roller rotates for heat transfer stamping. The stamping head can adjust the front - rear inclination, so it can stamp round workpieces with a small taper.
3. It is equipped with high - precision photoelectric tubes (electric eyes) to track and control the transfer paper with contacts in place. For transfer paper without contacts, the method of timed paper feeding is adopted.
4. Automatic feeding and discharging. Suitable for the mass production of stationery and cosmetic tubes.
5. Using a stepping motor for paper collection can greatly improve the positioning accuracy of the transfer paper.
6. The stamping pressure, temperature, and speed are all adjustable.
7. It is equipped with a five - digit counter.
8. The lifting of the stamping head is adjustable
Technical parameters:
Rubber roller size: φ180×102mm
Size of stamped workpieces: φ8 - 20mm×170mm (can be customized according to size)
Selection range of stamping temperature: Room temperature ~ 280 degrees
Operating air pressure: 5 - 7bar
Stamping pressure: 2138 (7bar)
Stamping speed: 2000pcs/hr
Power supply: 110/220V 60/50H
Heating power: 1200W
Air consumption: 281L/min
Overall dimensions: 1750×1100×1050mm
Weight: 480kg
