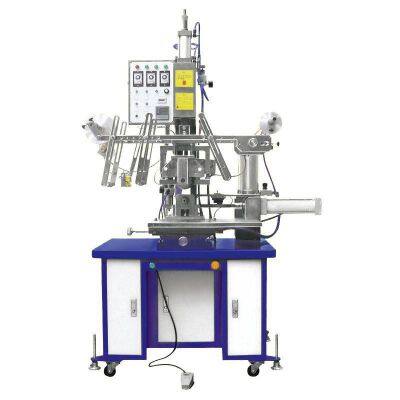

Help CenterHongmei Profile Gold Stamping Thermal Transfer Machine, Polygonal and Square Aviation Cup Hot Stamping Machine, Special-shaped Thermal Transfer Machine Equipment
Related Products
-
Fully Automatic Ice Cream Cup Mouth Decoration Gold Stamping Machine, Gold Stamping on the Rim of Disposable Champagne Cups, Plastic Cups, and Space CupsNegotiableMOQ: 0 Unit -

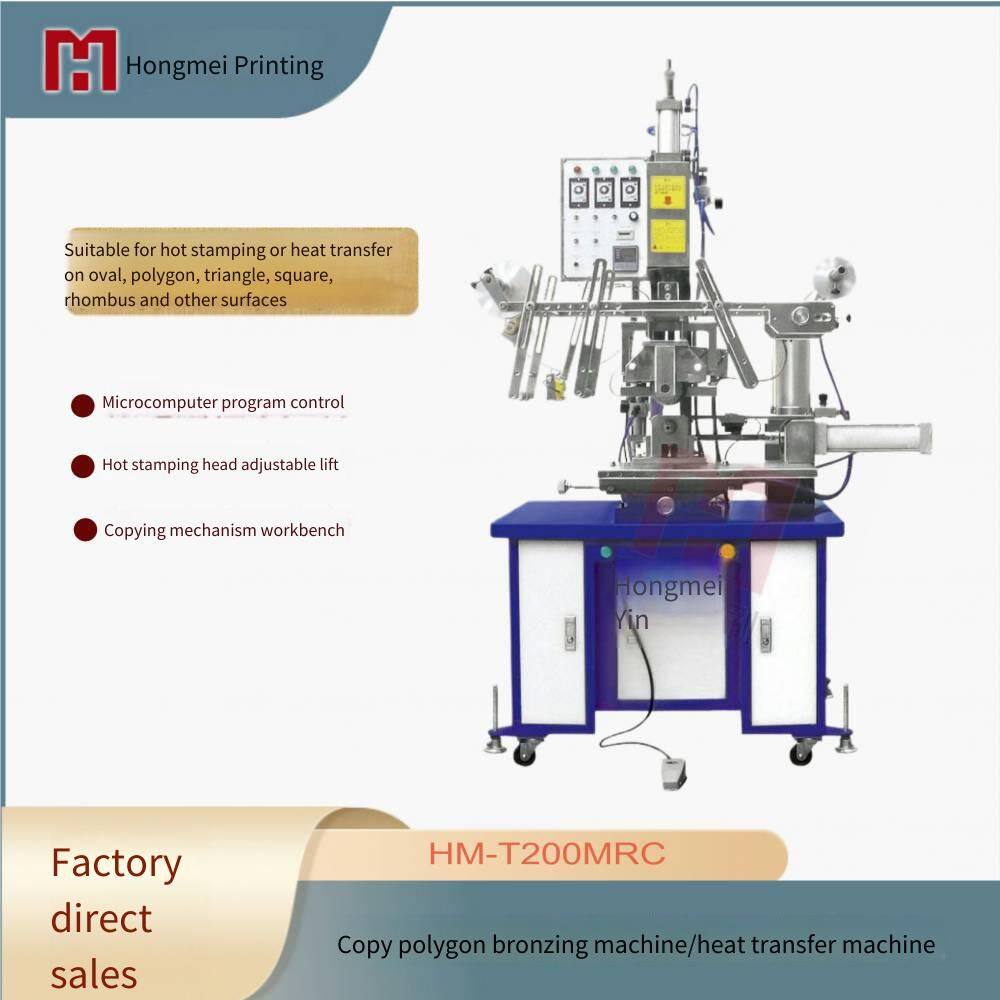

Hongmei M-200mrc Profiling Heat Transfer Machine, Special-shaped Heat Transfer Machine, Polygonal and Square Hot Stamping MachineUS$ 3969.23 - 4892.31MOQ: 1 Unit
-
Supply of Hongmei Hm-400s Curved Surface Gold Stamping Machine, Round Ceramic Gold Stamping Machine, and Manufacturer of Flat Stamping MachinesUS$ 4738.46 - 5507.69MOQ: 1 Unit
-
Long-term Supply of Bronzing Machines, Thermal Transfer Machines, Screen Printing Machines, Pad Printing Machines, Inks, and Pad Printing Rubber HeadsUS$ 1230.77 - 1369.23MOQ: 1 Unit
-
Hongmei 4060 Fully Electric Screen Printing Machine, 400*600 Glass Screen Printing Machine, pc Board Pneumatic Flat Screen Printing MachineUS$ 5982.77 - 7523.08MOQ: 1 Unit
Functional features:
1. The profiling thermal transfer printer is equipped with a profiling mechanism, which can emboss various polygons and irregular surfaces that ordinary thermal transfer printers cannot emboss.
2. The profiling mechanism of the profiling thermal transfer printer drives the workpiece to rotate and the rubber roller to rotate for heat transfer embossing.
3. Controlled by a microcomputer program, it is simple and convenient to operate.
4. The embossing pressure, temperature, and speed are all adjustable.
5. The embossing head can be adjusted up and down.
6. It is equipped with a five - digit automatic counter.
7. The workbench can be adjusted forward, backward, left, and right.
8. The air - oil conversion device is used to ensure smooth rotation and embossing of the workpiece
Technical parameters:
Rubber roller size: 100X￠100mm
Embossing speed (theoretical): 500 - 1000 times/hour
Air source pressure: 5 - 7bar
Embossing temperature: 0 - 400℃
Total machine power: 2.0kw
Power supply information: 220V/50H
Mechanical weight: 180kg
Overall dimensions: 1200X650X1850mm
Functional features:
1. The profiling thermal transfer printer is equipped with a profiling mechanism, which can emboss various polygons and irregular surfaces that ordinary thermal transfer printers cannot emboss.
2. The profiling mechanism of the profiling thermal transfer printer drives the workpiece to rotate and the rubber roller to rotate for heat transfer embossing.
3. Controlled by a microcomputer program, it is simple and convenient to operate.
4. The embossing pressure, temperature, and speed are all adjustable.
5. The embossing head can be adjusted up and down.
6. It is equipped with a five - digit automatic counter.
7. The workbench can be adjusted forward, backward, left, and right.
8. The air - oil conversion device is used to ensure smooth rotation and embossing of the workpiece
Technical parameters:
Rubber roller size: 100X￠100mm
Embossing speed (theoretical): 500 - 1000 times/hour
Air source pressure: 5 - 7bar
Embossing temperature: 0 - 400℃
Total machine power: 2.0kw
Power supply information: 220V/50H
Mechanical weight: 180kg
Overall dimensions: 1200X650X1850mm
