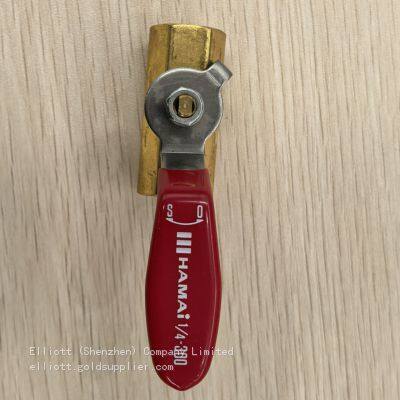

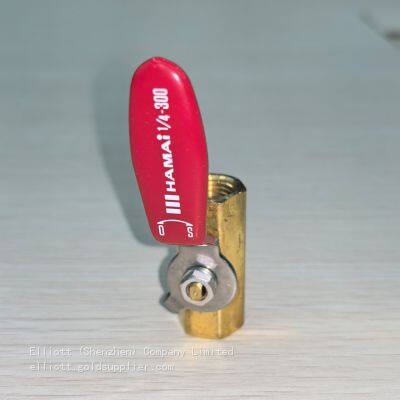

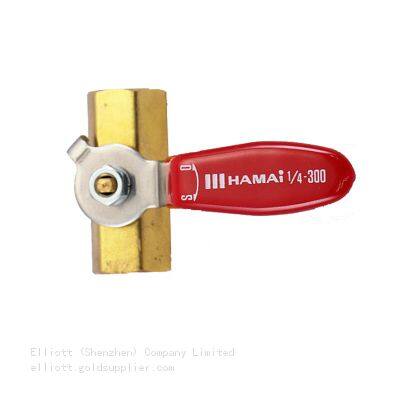

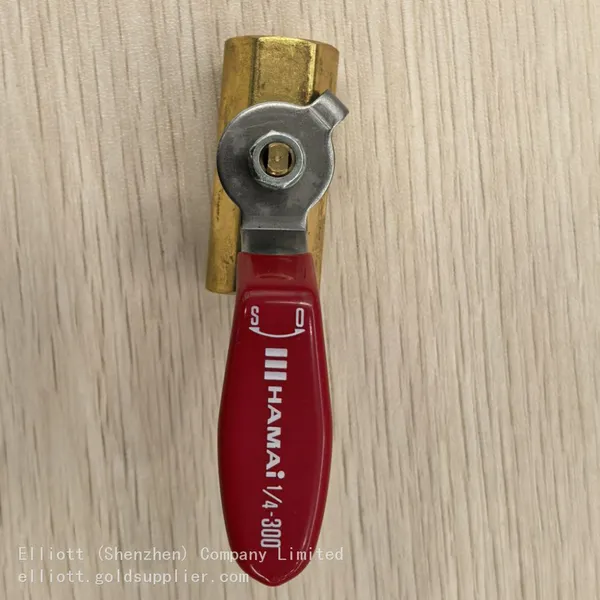

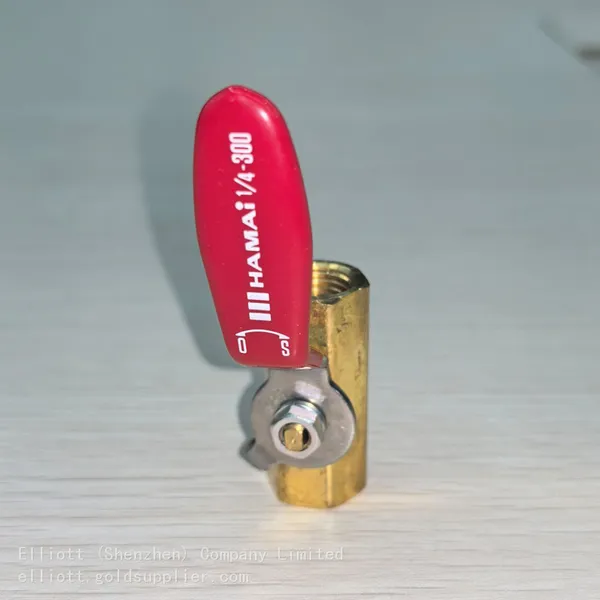

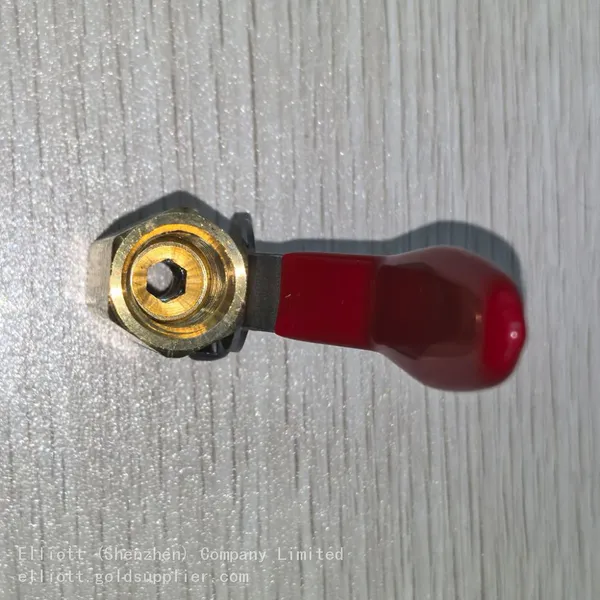

Help CenterHamai BBS-01 Series Brass Small Shut Ball Valve Manual Control for LPG Gas Lever Handle Threaded for Air Oil Flow-Plumbing
Related Products
-
HAMAI BSS-01-10Rc Series Stainless Steel 316 Pneumatic Air Ball Valve for Kitchen Gas Shut-Off Water Oil Flow Control ValvesNegotiableMOQ: 1 Piece -
DC407L Ductile Iron JIS20K Flange Swing Type LPG Gas Back Pressure Check Valve 2" Flow Control ValveNegotiableMOQ: 1 Piece
-
REGO CBH300 Dewar Bottle Regulating Valve Storage Tank Low Temperature Gas Economical Combination Booster ValveNegotiableMOQ: 1 Piece
-
REGO C9453 Cryogenic Gas Globe Valve Dewar Bottle FittingsNegotiableMOQ: 1 Piece
-
High Pressure DB-280 Globe Valves for LPG Gas Ductile Iron Fixed Flange Ball ValveNegotiableMOQ: 10 Pieces
Technical Parameters:

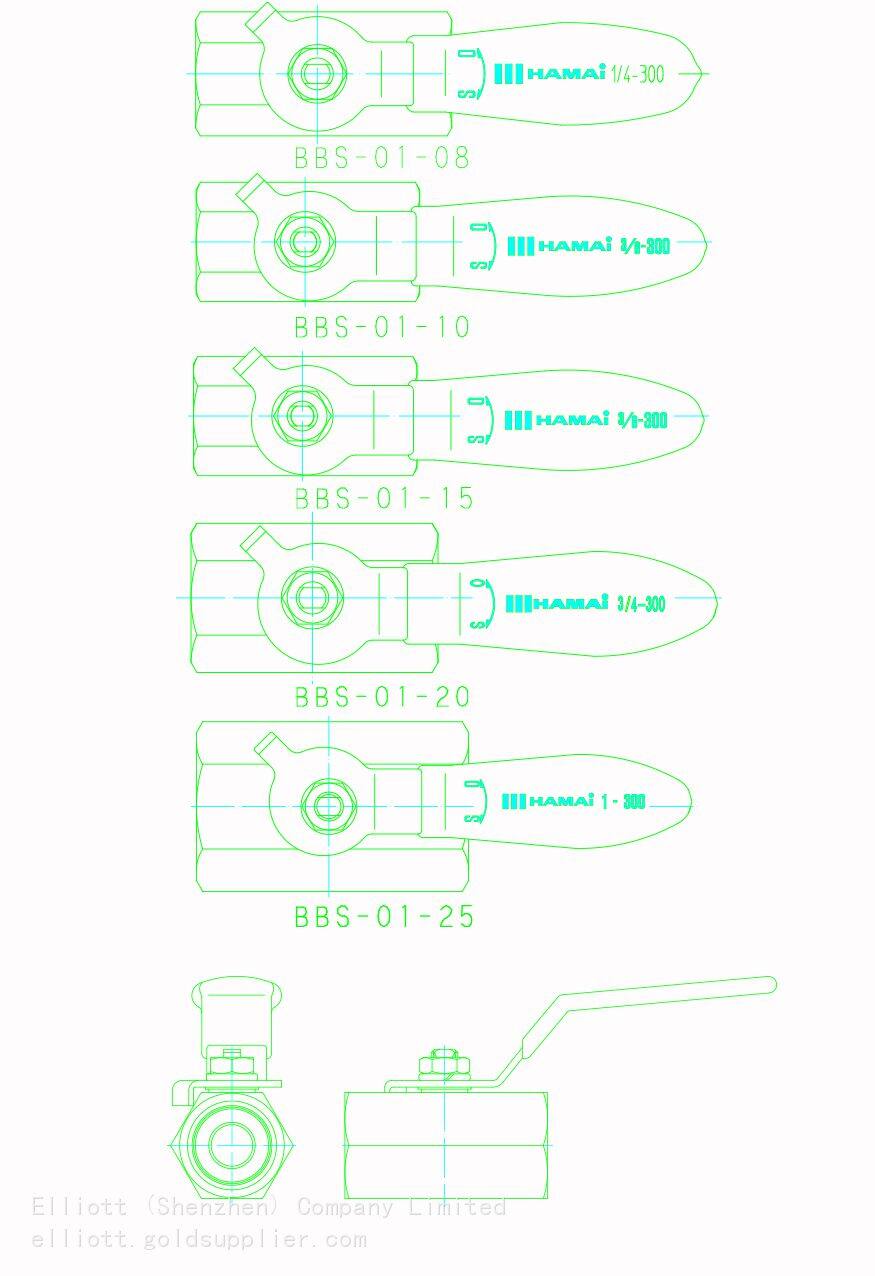

Model: BBS-01 type
Size: Rc 1/4, Rc 3/8, Rc 1/2, Rc 3/4, Rc 1
Medium: water, oil, gas, etc.
Material: Brass
Working pressure (max): 1.96 MPa
Operating temperature range: -10°C to +120°C (thawed)
Feature description:
1. Using lever handle, excellent operability.
2. Minimize the risk of external leakage through the high toughness of the seamless single-piece (monolithic) structure through hot forging.
3. Adopt float valve structure.
(Floating ball valve structure...Using excellent airtightness of PTFE material, the flow direction of the supporting ball, through the complete closure of the, airtight pressure difference Press the ball against the secondary side seat to close the flow path in a more stable state)
4. All seal-retaining parts use PTFE with excellent corrosion resistance and durability.
-Joined from the inside of the valve body, the structure prevents ejection.
5. Due to the internal pressure and the spring effect of the conical spring (disc spring), the air tightness further improves the air tightness.
6. By rotating the handle 90 degrees to easily open and close, you can clearly distinguish the open/closed state of the valve at the position of the handle.
Product material:
Valve body...................................... ............Brass
handle................................................. Chrome plating (ZDC 2)
filler................................................. .......PTFE (with glass fiber)
Cone spring.............................................. Stainless steel (304)
washer................................................. SWRH (chromate treatment)
