Product Details
Technical Specifications:

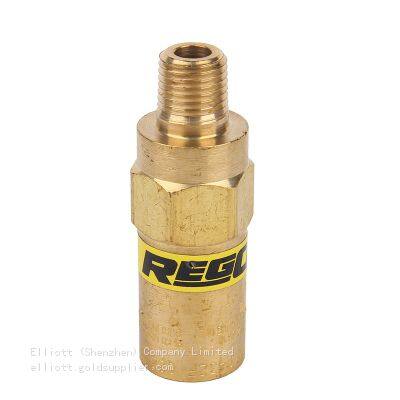

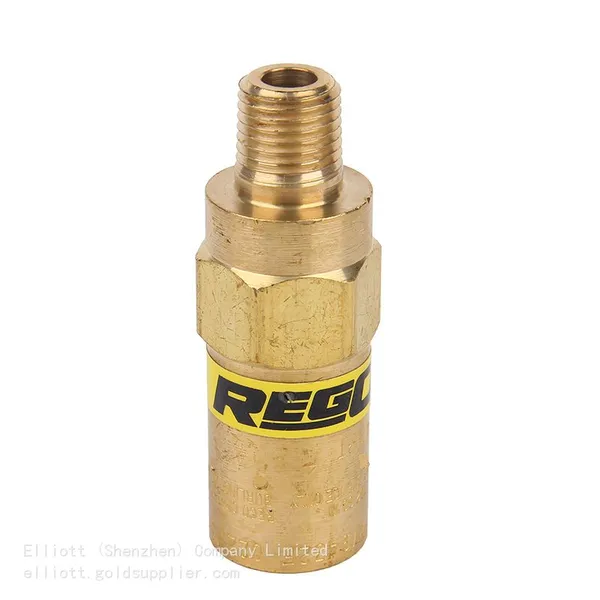

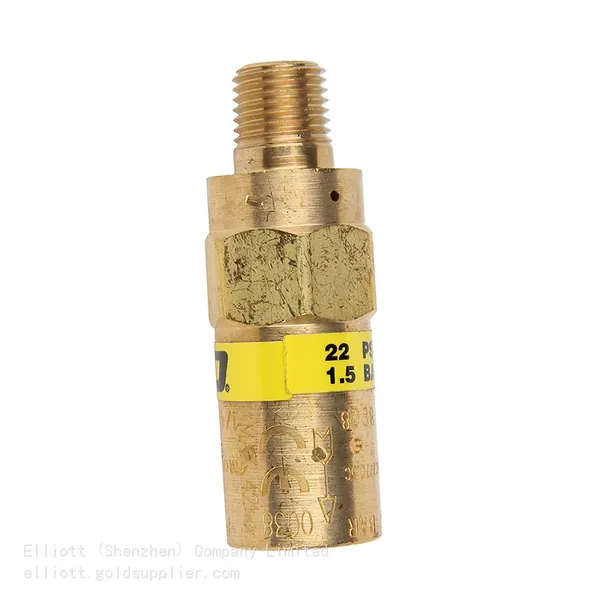

Model: PRV9432
Size: 1/4“
Material: Brass
Set pressure range: 17~600psi
Working temperature range: -196 ℃ to+74 ℃ (-320 ℉~165 ℉)
Application scope: Industrial users and systems
Applicable medium: LNG, low-temperature gas
Feature Description:
1. All valves are cleaned and packaged according to the oxygen cleaning requirements in CGA G-4.1.
2. No bubbles at 95% set pressure
3. Easy to read the set pressure from the ribbon
4. To prevent pressure changes, the pressure has already been set at the factory
5. Good repeatability
6. Conduct factory testing
7. Only applicable to gas release, not applicable to liquids
8. Selection of valve seat material:
1) F represents fluorosiloxane used for PRV and SS pressure ranges of 15~139psi
2) T represents polytetrafluoroethylene used for PRV and SS pressure ranges of 140~psi
