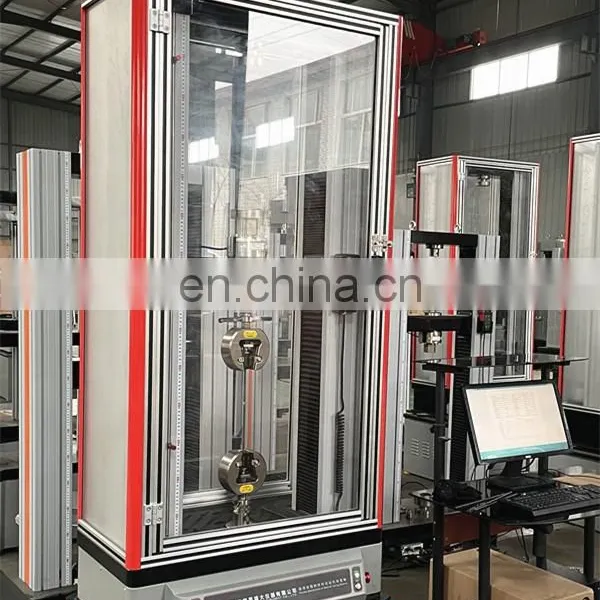

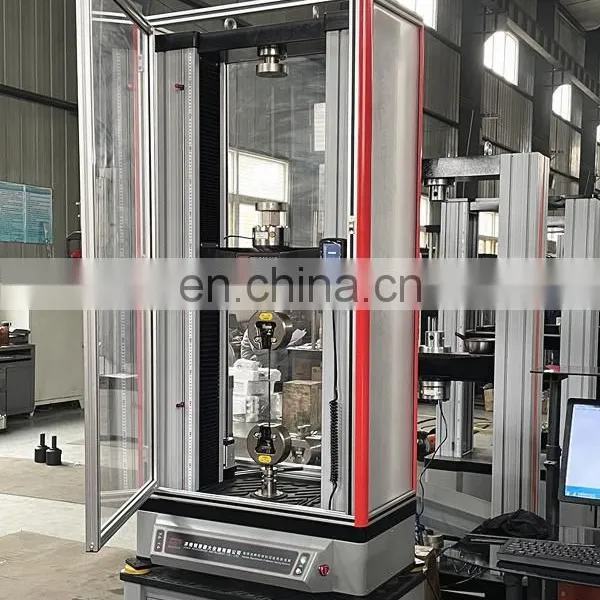

WDW-100E 10Ton Used Digital Display Tensile Testing Machine

WDW-100E 10Ton Used Digital Display Tensile Testing Machine

Product Description

WDW-100 Computerized 10Ton Electronic Universal Tensile Testing Machine, Tension and Compression Tester

1. Application:

WDW series computerized electronic universal testing machines are designed and manufacture

according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2. Main Specifications:

Model

WDW-10

WDW-20

WDW-30

WDW-50

WDW-100

WDW-200

WDW-300

WDW-500

WDW-600

Max. Load

10kN

1000kgf

20kN

2000kgf

30kN

3000kgf

50kN

5000kg

100kN

10000kgf

200kN

20000kgf

300kN

30000kgf

500kN

50000kgf

600kN

60000kgf

Load accuracy

≤±0.5%

Load range

0.2%-100% of full scale

Load resolution

1/200000 of full scale

1/500000 of full scale

Disp. resolution

0.01mm

Test speed

0.05-500mm/min

0.05-300mm/min

0.01-200mm/min

Tensile space

750mm

650mm

650mm|25.6in

600mm|21.6in

Comp. space

750mm

650mm

650mm|25.6in

600mm|21.6in

test width

375mm

400mm

420mm

600mm

570mm

Dimension

730×430×1700mm

755×480×1780mm

825×600×1950mm

1110×750×2560mm

1110×780×2600mm

Power supply

220V, 1ph, 0.5kW

220V, 1ph, 0.75kW

220V, 1ph, 1kW

380V, 3ph, 3KW

380V, 3ph, 4KW

Weight (kg)

250kg

280kg

350kg

1500kg

2000kg
