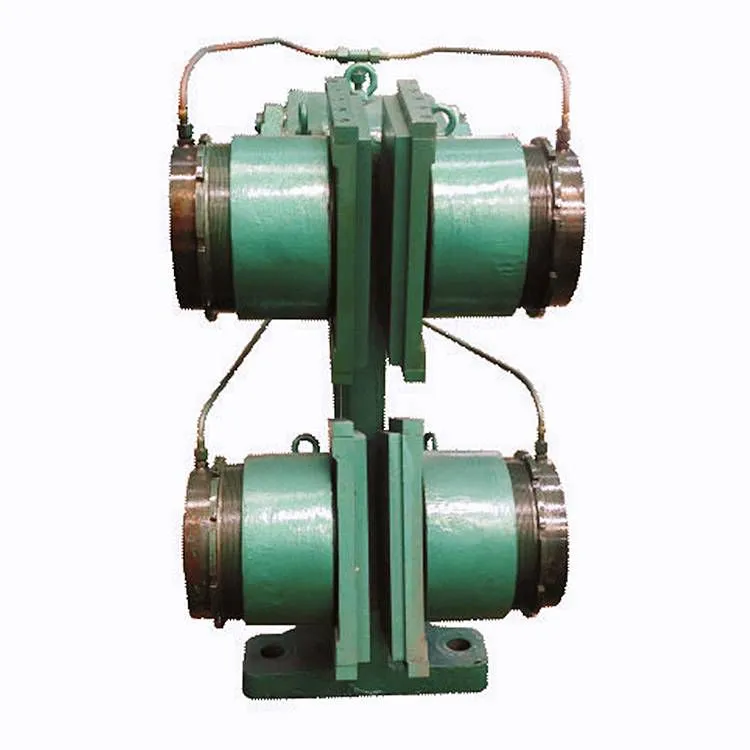

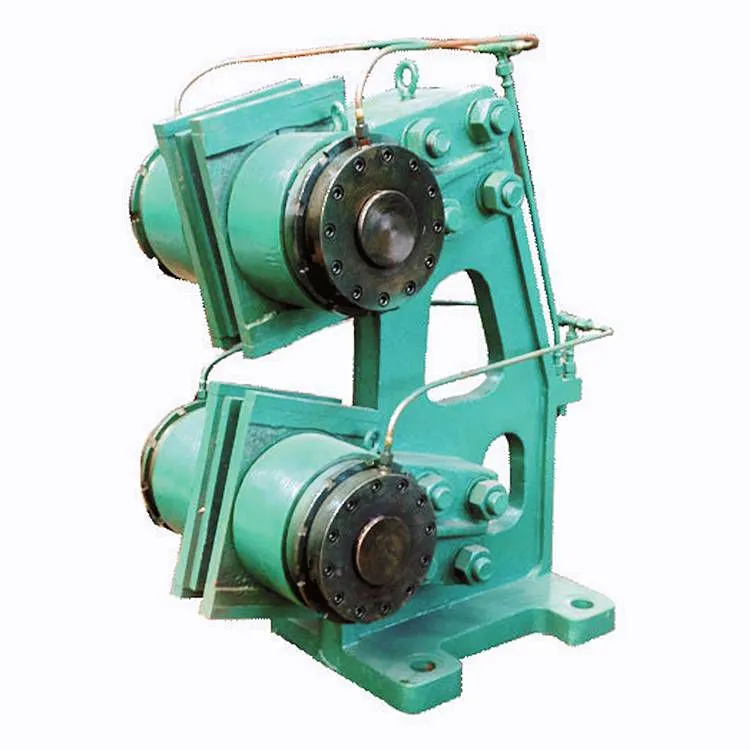

[hunan Chuang'an Explosion-proof] Mine-used Disc Brake

[hunan Chuang'an Explosion-proof] Mine-used Disc Brake thumbnail-1
[hunan Chuang'an Explosion-proof] Mine-used Disc Brake thumbnail-2
[hunan Chuang'an Explosion-proof] Mine-used Disc Brake photo-1
[hunan Chuang'an Explosion-proof] Mine-used Disc Brake photo-2
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2002
Factory Size:
Above 100,000 square meters
Contact Supplier Request Quote Chat Now
Hunan Chuangan Explosion-proof Electric Appliances Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Disc Brake

Disc Brake



Application and Scope of UseApplication and range of application

The acting direction of the braking force of the disc brake is axial. The brakes are arranged around the drum and act on the brake disc. The disc brake uses a disc spring as the braking force source and is opened by oil pressure. Compared with other brakes, it has the following advantages:

Lightweight, small inertia, and rapid action; (The braking idle stroke is only 0.3s, which is half the time of the block brake's 0.6s);

Compact structure and adjustable braking torque;

Good versatility and easy to maintain;

Multiple sets of brakes work simultaneously. Even if one set fails, it only affects part of the braking performance, so the reliability is high;

The disc brake requires high manufacturing precision. To ensure product quality, Hunan Chuang'an Explosion-proof Electrical Appliances Co., Ltd. processes all brake components using CNC turning centers, and all seals are made of imported materials, which greatly improves the service life and is incomparable to ordinary manufacturers. The disc brake is an important component to ensure the safe operation of the winch. It completes the tasks of working braking, safety braking, or emergency braking through the control of the hydraulic station and the electronic control system.

Main technical parametersMain technical parameters

Product modelProduct model

Qty.(Set) Qty. (Set)

RemarksRemarks

JTP-12

2

JTP (B)-1.2x1.0 P

JTP (B)-1.2x1.2P

4

2 JTP (B)-1.2x0.8 P

2JTP (B)-1.6x0.9 P

JTP-16

2

JTP (B)-1.6x1.2 P

JTP (B)-1.6x1.5P

JK-20

2

JK (B)-2.0x1.5P

JK(B)-2.0x1.8 P

4

2 JK (B)-2.0x1.0 P

2JK (B)-2.0x1.25P

JK-25

2

JK (B)-2.5x2.0 P

JK (B)-2.5x2.3 P

4

2 JK (B)-2.5x1.2 P

2JK (B)-2.5x1.5P
