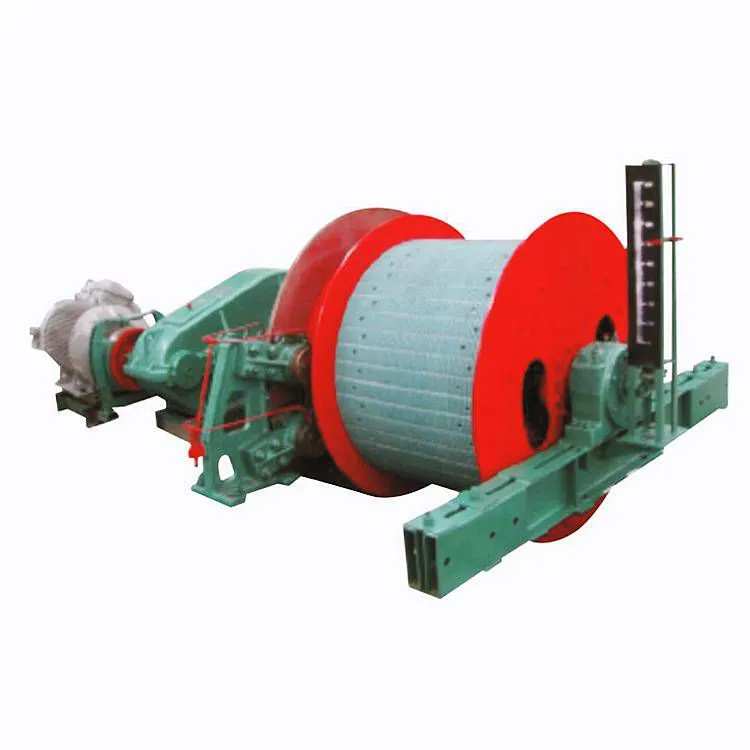

[hunan Chuang'an Explosion-proof] Jk(b)-port Series Single-rope Winding Mine Hoist

[hunan Chuang'an Explosion-proof] Jk(b)-port Series Single-rope Winding Mine Hoist thumbnail-1
[hunan Chuang'an Explosion-proof] Jk(b)-port Series Single-rope Winding Mine Hoist photo-1
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2002
Factory Size:
Above 100,000 square meters
Contact Supplier Request Quote Chat Now
Hunan Chuangan Explosion-proof Electric Appliances Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

JK(B)-Port

Series Single-rope Winding Mine Hoist


Purpose and Scope of Use

1.Purpose: The JK(B) series single-rope winding mine hoist is mainly used for hoisting and lowering materials and personnel in inclined roadways and shafts on the ground or underground in coal mines, metal mines, and non-metal mines. It can also be used for hoisting materials and auxiliary material transportation in other industrial sectors.

2.Scope of Use:

1.The working environment of the explosion-proof hoist is as follows: The concentration of gas, coal seams, etc. in the surrounding air should not exceed the concentration specified in the "Coal Mine Safety Regulations" (2016 edition);

2.The hoist should be installed in a machine room with an air temperature of 0 - 40°C, a relative humidity of no more than 85% (when the ambient temperature is 20°C ± 5°C), and an altitude of no more than 1000m. It should be able to prevent liquid from invading the electrical appliances and work in an environment without severe vibration, jolting, and corrosive gases.

3.When the altitude exceeds 1000m, the decrease in air cooling effect and dielectric strength should be taken into account. The selected electrical appliances should be designed or used according to the agreement between the manufacturer and the user.


Main Technical Parameters

Model

Model

Drum

Wire Rope

Rope Capacity

Quantity

Diameter

Width

Distance between the Centers of Two Drums

Static Tension

Static Tension DifferenceMax.

Diameter

Total breaking tensile force

One layer

Two layers

Three layers

m

mm

KN

mm

KN

m

JKB - 2.0x1.5P

1

2.0

1.5

/

62

62

32

558

244

493

774

JKB-2.0x1.8P

1

2.0

1.8

/

62

62

32

558

299

604

942

JK-2.0x1.5P

1

2.0

1.5

/

61

61

24

396.5

333

671

1042

JK-2.0x1.8P

1

2.0

1.8

/

61

61

24

396.5

406

818

1264

JKB-2.5x2.0P

1

2.5

2.0

/

83

83

30

621

476

957

1440

JKB-2.5x2.3P

1

2.5

2.3

/

83

83

30

621

547

1100

1660

JK-2.5x2.0P

1

2.5

2.0

/

83

83

30

621

476

957

1440

JK-2.5x2.3P

1

2.5

2.3

/

83

83

30

621

547

1100

1660
