Blood Pressure Signal Generator
SKX-5000F
The pulse signal of the human body is obtained from the cuff detection of the patient's body. After amplification and transmission of these signals, the waveform of the pulse wave is obtained. The blood pressure value of the human body is obtained according to a certain algorithm. This simulator is based on this principle, through a certain device to simulate the different pulse waves of the human body in different cuff pressure states, to simulate the value of human blood pressure. In particular, please note that the simulator is suitable for the blood pressure detection method of step deflating and step inflation measurement; It is suitable for the detection of instruments and equipment using oscillographic method to measure blood pressure; When connected with external buffer (cuff), can test a variety of measurement methods, such as in the process of pressure detection of pulse sphygmomanometer; Devices such as a sphygmomanometer that detects pulse during pressurization, and one that detects pulse during continuous venting.
Standard configuration
l 7-inch color display with touch screen + button operation.
l 4 large capacity lithium batteries are built in, which can work continuously for a long time and remove interference.
l Equipped with external power adapter.
l Equipped with a tee and a number of direct channels, a number of leather tubes for testing the sphygmomanometer
Product Features
l Ambulatory blood pressure (BP) simulation for arm and wrist cuff monitors
l Built-in air pump: for high and low pressure bleed check, leak check and pressure source
l Built-in children's cuff: can be used to test the non-invasive blood pressure monitor without the cuff
l Using high precision pressure sensor, the value is more accurate
l It has the function of pressure calibration for blood pressure instrument
l Integration of "JJG692-2010" standard, according to the software process to complete the standard test
l Optional custom dynamic simulation systolic pressure (20mmHg~300mmHg) and diastolic pressure (5mmHg~230mmHg)
Performance parameters
l Range: (0 ~ 60) kPa
l Precision grade: ±0.05%F.S
l Absolute alignment error: <0.5mmHg (0-300mmHg)
l Static pressure: 0 mmHg to 450 mmHg
l Pressure source: can produce 15mmHg to 400mmHg pressure
l Pressure test: pressure port static pressure from 0mmHg-450mmHg
l Pressure resolution: 0.01mmHg
l Pulse range: 30bpm-250bpm
l Pulse volume: 0.10cc-1.20cc
l Leakage rate: ≤0.4mmHg/ min, at 500mL volume,300mmHg
≤1mmHg/ min, at 100mL volume,300mmHg
Standard blood pressure simulation
Non-standard blood pressure simulation
Blood pressure: 30/10 (16) Pulse 80
Blood pressure: 50/30 (36) Pulse 80
Blood pressure: 60/30 (40) Pulse 80
Blood pressure: 80/50 (60) Pulse 80
Blood pressure: 100/65(76) Pulse 80
Blood pressure: 120/80(93) Pulse 80
Blood pressure: 150/100(116) Pulse 80
Blood pressure: 200/150(166) Pulse 80
Blood pressure: 255/195(216) Pulse 80
Blood pressure: 280/220 (253) Pulse 80
Blood pressure: 240/180 (200) Pulse 80
Blood pressure: 190/120 (143) Pulse 80
Blood pressure: 140/90 (106) Pulse 80
Blood pressure: 115/60 (78) Pulse 80
Blood pressure: 110/80(90) Pulse 80
Blood pressure: 80/40 (53) Pulse 80
Blood pressure: 50/22 (31) Pulse 80
Blood pressure: 38/15 (22) Pulse 80

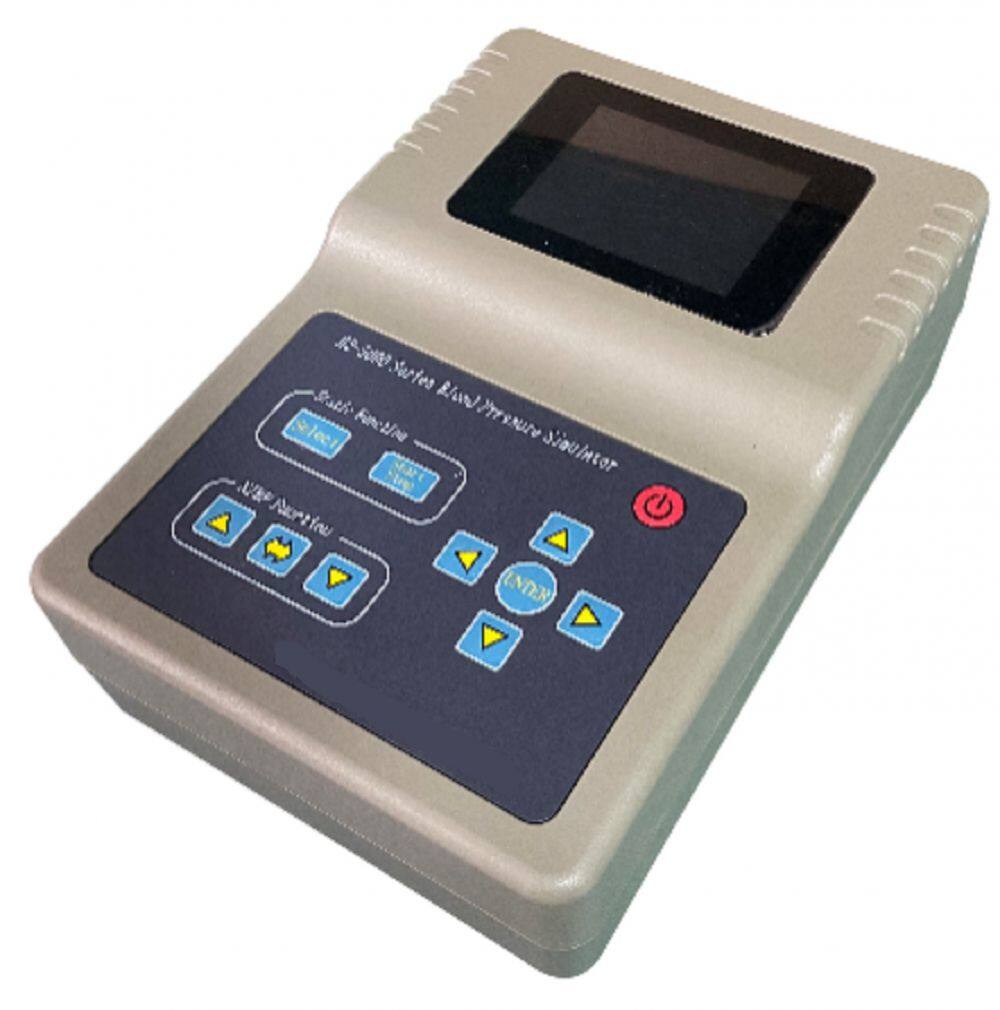

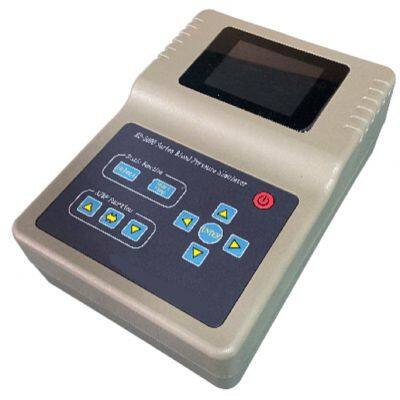

Blood Pressure Simulator
H2-5000
Standard configuration
l 2.8-inch color display, push-button operation.
l Optional built-in 4 18650 lithium batteries, can work continuously for a long time, remove interference, can measure a certain amount of blood pressure.
l It comes with an external power adapter.
l Equipped with a tee and a number of direct channels, a number of leather tubes for testing the sphygmomanometer.
l Built-in sealed container for newborn and adult.
Product Features
l Ambulatory blood pressure (BP) simulation for arm and wrist cuff monitors
l Built-in air pump: for high and low pressure bleed check, leak check and pressure source
l Built-in sealed container: can be used to test the non-invasive blood pressure monitor without cuff
l Using high precision pressure sensor, the value is more accurate
l It has the function of pressure calibration for blood pressure instrument
l Built-in sealed container for newborn and adult, compact design, easy to carry
H2-5000K1 technical parameters
l Measuring range: (0 ~ 40) kPa
l Precision grade: ±0.15%F.S
l Absolute alignment error: <0.75mmHg (0mmHg-300mmHg)
l Static pressure: 0 mmHg to 400 mmHg
l Pressure source: can produce 20mmHg to 300mmHg pressure
l Pressure test: pressure port static pressure from 0mmHg-400mmHg
l Pressure resolution: 0.1mmHg
l Pulse range: 60bpm-120bpm
l Pulse volume: 0.05cc-1.40cc
l Leakage rate: ≤0.4mmHg/ min, at 500mL volume,300mmHg
≤1mmHg/ min, at 100mL volume,300mmHg
H2-5000K2 technical parameters
l Measuring range: (0 ~ 60) kPa
l Precision grade: ±0.1%F.S
l Precision error: <0.5mmHg (0mmHg-300mmHg)
l Static pressure: 0 mmHg to 450 mmHg
l Pressure source: can produce 20mmHg-410mmHg pressure
l Pressure test: pressure port static pressure from 0mmHg-450mmHg
l Pressure resolution: 0.1mmHg
l Pulse range: 30bpm-250bpm
l Pulse volume: 0.05cc-1.40cc
l Leakage rate: ≤0.4mmHg/ min, at 500mL volume,300mmHg
≤1mmHg/ min, at 100mL volume,300mmHg
Equipped with steel container: [100mL, 200mL, 300mL, 500mL] default one
H2-5000K3 Technical parameters
l Measuring range: (0 ~ 60) kPa
l Precision grade: ±0.1%F.S
l Repeatability of indication: not more than 0.1kPa
l Absolute alignment error: <0.5mmHg (0mmHg-300mmHg)
l Static pressure: 0 mmHg to 450 mmHg
l Pressure source: can produce 20mmHg-410mmHg pressure
l Pressure test: pressure port static pressure from 0mmHg-450mmHg
l Pressure resolution: 0.1mmHg
l Pulse range: 30bpm-250bpm
l Pulse volume: 0.05cc-1.40cc
l Leakage rate: ≤0.4mmHg/ min, at 500mL volume,300mmHg
≤1mmHg/ min, at 100mL volume,300mmHg
l Standard blood pressure simulation (ambulatory blood pressure simulation) :
Blood pressure: 30/10 (16) Pulse 80
Blood pressure: 50/30 (36) Pulse 80
Blood pressure: 60/30 (40) Pulse 80
Blood pressure: 80/50 (60) Pulse 80
Blood pressure: 100/65(76) Pulse 80
Blood pressure: 120/80(93) Pulse 80
Blood pressure: 150/100(116) Pulse 80
Blood pressure: 200/150(166) Pulse 80
Blood pressure: 255/195(216) Pulse 80
l Non-standard blood pressure simulation (ambulatory blood pressure simulation) :
Blood pressure: 280/220 (253) Pulse 80
Blood pressure: 240/180 (200) Pulse 80
Blood pressure: 190/120 (143) Pulse 80
Blood pressure: 140/90 (106) Pulse 80
Blood pressure: 115 over 60 (78) Pulse 80
Blood pressure: 110/80(90) Pulse 80
Blood pressure: 80/40 (53) Pulse 80
Blood pressure: 50/22 (31) Pulse 80
Blood pressure: 38/15 (22) Pulse 80
Functional configuration
Features | H2-5000K1 | H2-5000K2 | H2-5000K3 |
Standard ambulatory blood pressure simulation | 4 sets | 9 sets | 9 sets |
Non-standard ambulatory blood pressure simulation | 9 sets | ||
Overpressure test (automatic calculation) | ● | ● | ● |
Leak test (automatically calculated) | ● | ● | ● |
Pressure gauge | ● | ● | ● |
Pressure source | ● | ● | ● |
Static range (0 to 40) kPa | ● | ||
Static range (0 to 60) kPa | ● | ● | |
Accuracy grade: F.S | Plus or minus 0.15% | Plus or minus 0.1% | Plus or minus 0.1% |
Absolute error | <0.75 mmHg | <0.5mmHg | <0.5mmHg |
Optional function configuration
Model | Configuration | Instructions |
H2-5000K1 | Non-invasive blood pressure simulator | Simple non-invasive blood pressure simulator |
H2-5000K2 | Non-invasive blood pressure simulator | Standard non-invasive blood pressure simulator |
H2-5000K3 | Non-invasive blood pressure simulator | Enhanced non-invasive blood pressure simulator |
H2-5000S1 | Blood Pressure Blood oxygen | H2-5000K2 standard non-invasive blood pressure simulator + Blood Oxygen Simulator (SKX-1000D function) |
H2-5000S2 | Blood Pressure Enhanced blood oxygen | H2-5000K2 standard non-invasive blood pressure simulator + Blood Oxygen Simulator (H2-1000KII function) |
H2-5000T1 | Blood pressure, ECG, breathing Abnormal waveforms | H2-5000K2 standard non-invasive blood pressure simulator + Abnormal waveform ECG simulator (SKX-2000SUP function) |
H2-5000T2 | Blood pressure, ECG, breathing Abnormal waveforms | H2-5000K2 standard non-invasive blood pressure simulator + Ecg simulator (SKX-2000KII) abnormal waveform and ECG standard signal required by national standard |
H2-5000X1 | Blood pressure simulator, blood oxygen, Ecg, respiration, abnormal waveform | H2-5000K2 standard non-invasive Blood pressure simulator + Blood Oxygen Simulator (SKX-1000D function)+ Abnormal waveform ECG simulator (SKX-2000SUP function) |
H2-5000X2 | Blood pressure simulator, blood oxygen, Ecg, respiration, abnormal waveform | H2-5000K2 standard non-invasive Blood pressure simulator + Blood Oxygen Simulator (H2-1000KII function)+ Abnormal waveform ECG simulator (SKX-2000SUP function) |
H2-5000X3 | Blood pressure simulator, blood oxygen, Ecg, respiration, abnormal waveform | H2-5000K2 standard non-invasive blood pressure simulator + Blood Oxygen Simulator (H2-1000KII)+ Ecg simulator (SKX-2000KII) abnormal waveform and ECG standard signal required by national standard |
