Home > Instruments & Meters > Test Instrument > Test Machine > HFPA150 Neutral Electrode Contact Impedance Tester

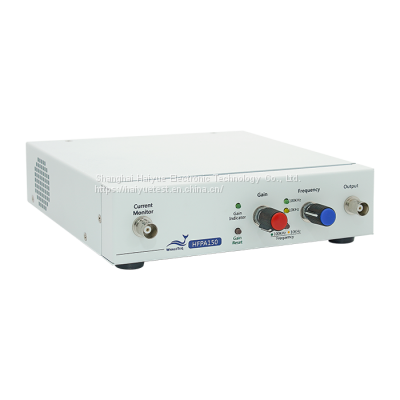

HFPA150 Neutral Electrode Contact Impedance Tester

Name: HFPA150 Neutral Electrode Contact Impedance Tester
Brand: whaleteq
SKU: 171822415
Availability: InStock

Shanghai Lifeitest Technology Co., Ltd.

HFPA150 Neutral Electrode Contact Impedance Tester thumbnail-1

HFPA150 Neutral Electrode Contact Impedance Tester thumbnail-2

HFPA150 Neutral Electrode Contact Impedance Tester thumbnail-3

HFPA150 Neutral Electrode Contact Impedance Tester thumbnail-4

HFPA150 Neutral Electrode Contact Impedance Tester thumbnail-5

HFPA150 Neutral Electrode Contact Impedance Tester photo-1

HFPA150 Neutral Electrode Contact Impedance Tester photo-2

HFPA150 Neutral Electrode Contact Impedance Tester photo-3

HFPA150 Neutral Electrode Contact Impedance Tester photo-4

HFPA150 Neutral Electrode Contact Impedance Tester photo-5

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

whaleteq

Place of Origin:

Taiwan, China

Model Number:

HFPA150

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

20 days

Product Details
Company Profile
Contact Us

Brand Name whaleteq

Place of Origin Taiwan, China

Model Number HFPA150

Power Other, 11Vrms (~31Vpp), ≥ 50Ω

Usage Other, ECG patterns for AED defibrillation tests

HFPA150

The simple and convenient neutral electrode contact impedance tester.

Standard Coverage: IEC 60601-2-2.

Designed according to IEC60601-2-2:2009 clause 201.15.101.6 for testing NE contact impedance
Outputs 200mA into 0-50Ω load from 50KHz to 5MHz
Equipped with DDS (direct digital synthesis) technology for a stable frequency output
Inbuilt current monitor port eliminating the need for expensive current probes.

Parameters	Specifications
Frequency range	50kHz ~ 5MHz
Maximum voltage	11Vrms (~31Vpp), ≥ 50Ω
Maximum Current	>200mArms, ≤ 50Ω
Waveform	Sine
Frequency Response	<±0.8dB, 50Ω
THD	<0.3% (-50.4dB), at 200mArms, 50Ω, 1MHz
Impedance	<3.2Ω + j0.4µH

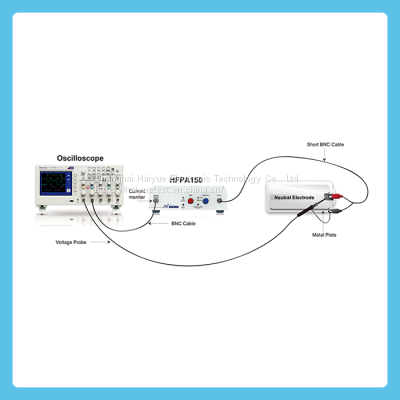

Auxiliary equipment for contact impedance test	Oscilloscopes (Ch1 connects with voltage probe to measure voltage, Ch2 connects with HFPA150 current monitoring interface to measure the current value)
Current Measurement Accuracy	<±5%
Current Measurement Frequency Range	50kHz ~ 5MHz
Current Measurement Connector Type	BNC
Power Source	Power Adapter Input: 100 - 240V, 50/60Hz Output: 12VDC / 2A
Environment	10℃ ~ 40℃, 30% ~ 90% RH
Size / Weight	18 x 18 x 4.8cm (L x W x H) / 0.7kg (net weight)
