SECG 5.0 AIO ECG Performance Testing

SECG 5.0 AIO ECG Performance Testing thumbnail-1
SECG 5.0 AIO ECG Performance Testing thumbnail-2
SECG 5.0 AIO ECG Performance Testing thumbnail-3
SECG 5.0 AIO ECG Performance Testing thumbnail-4
SECG 5.0 AIO ECG Performance Testing thumbnail-5
SECG 5.0 AIO ECG Performance Testing photo-1
SECG 5.0 AIO ECG Performance Testing photo-2
SECG 5.0 AIO ECG Performance Testing photo-3
SECG 5.0 AIO ECG Performance Testing photo-4
SECG 5.0 AIO ECG Performance Testing photo-5
CNY 84000 - 85000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
whaleteq
Place of Origin:
Taiwan, China
Model Number:
SECG 5.0 AIO
Contact Supplier Request Quote Chat Now
Shanghai Lifeitest Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name whaleteq
Place of Origin Taiwan, China
Model Number SECG 5.0 AIO
Power Other, ±1% for amplitudes of 0.5mVpp or higher
Usage Other, ECG performance testing

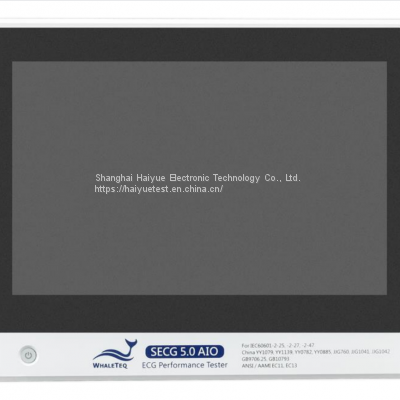

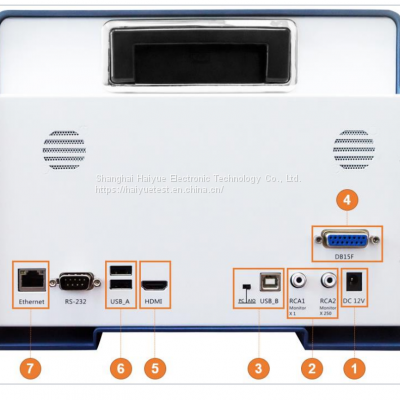

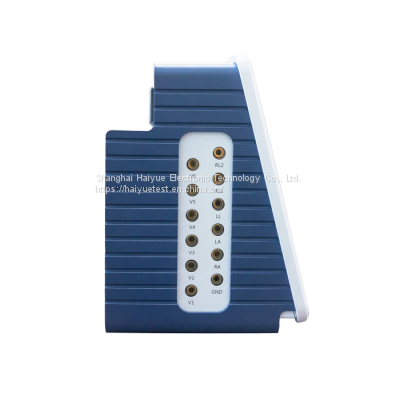

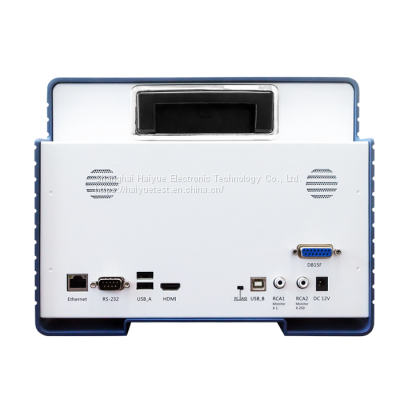

he ECG simulator designed for ECG performance testing. Capable of adding noise, respiration and lead-off simulations. Flexible operation modes for standalone or PC software.
Suitable for R&D and compliance testing.
Compliant with IEC60601-2-25, IEC60601-2-27, IEC60601-2-47, YY1079, YY1139, YY0782, YY0885, JJG760, JJG1041, JJG1042, GB9706.25, GB10793, ANSI/AAMI EC11, ANSI/AAMI EC13.


  • Built-in test circuits as defined in ECG standards

  • Adjustable parameters and selectable options enable to verify DUT with flexibility

  • Multiple noise simulations － Electrode Motion Artifact / Muscle Noise / Baseline Wander

  • Various signal simulations － Impedance Type Respiration, Wave Modulation Type (Baseline / Amplitude / Frequency) Respiration and lead-off simulation

  • Auto-sequence function assists in conducting semi-automated tests

  • Load and play recorded or programmed waveforms

  • Software Development Kit (SDK) allows to develop customized or automated test software with less efforts

  • Optional Standard Assistant software pack simplifies the medical standard with test sequences, options, parameters and pass criterions.





Parameters Specifications System Capability
Main output voltage accuracy ±1% for amplitudes of 0.5mVpp or higher ±0.3%
Main output voltage resolution
(DAC resolution)		 N/A 0.63µV
Frequency / pulse repetition rate accuracy ±1% ±0.1%
Pulse duration / timing accuracy ±1ms ±0.2ms
Pacing pulse width accuracy ±5μs ±1μs
Pacing pulse amplitude accuracy, range ±2mV pulse: ±1%
>2mV pulse: ±10%
Range: ±2mV ~ ±700mV		 ±2mV pulse: ±0.3%
100mV pulse: ±1% or ±5mV
Pacing pulse characteristics Rise/fall time 5μs
Overshoot Settling time
Pacing pulse overshoot (intentional) Method A according to IEC 60601-2-27
Resistor tolerance ±1% ±0.5%
Capacitor tolerance ±5% ±5%
Precision 250 : 1 divider (100KΩ : 100Ω) ±0.1% ±0.05%
Sample rate 5kHz ± 0.1% 10kHz ± 0.05% (50ppm)
DC offset
(fixed, noise-free, sourced from the internal supercapacitor)		 300mV ± 1% 300mV ± 0.1%
DC offset
(variable, up to 1000mV, may include up to 50μVpp noise)		 Setting ±1% or ±3mV Setting ±1% or ±3mV
Environment 15 ~ 30°C (by design)
30 ~ 80% RH (by design)		 5 ~ 40°C
30 ~ 80% RH
altitude Overvoltage CAT II



Signal Type
　　　　　　 　　　　　　
Parameters Range Default Values Resolutions
Sine Frequency (Hz) 0.05 ~ 5.00Hz 1Hz 0.01
Frequency (BPM) 3 ~ 30000BPM 60BPM 1
Amplitude (-40) ~ 40mV 1mV 0.01
Triangle Frequency (Hz) 0.05 ~ 5.00Hz 1Hz 0.01
Frequency (BPM) 3 ~ 30000BPM 60BPM 1
Amplitude (-40) ~ 40mV 1mV 0.01
Square Frequency (Hz) 0.05 ~ 5.00Hz 1Hz 0.01
Frequency (BPM) 3 ~ 30000BPM 60BPM 1
Amplitude (-40) ~ 40mV 1mV 0.01
Rectangle Pulse Frequency (Hz) 0.05 ~ 5.00Hz 1Hz 0.01
Frequency (BPM) 3 ~ 30000BPM 60BPM 1
Amplitude (-20) ~ 20mV 1mV 0.01
Pulse width 1 ~ 300ms 100ms 1





Triangle Pulse Frequency (Hz) 0.05 ~ 5.00Hz 1Hz 0.01
Frequency (BPM) 3 ~ 30000BPM 60BPM 1
Amplitude (-20) ~ 20mV 1mV 0.01
Pulse width 1 ~ 300ms 100ms 1





Exponential Frequency (Hz) 0.05 ~ 5.00Hz 1Hz 0.01
Frequency (BPM) 3 ~ 30000BPM 60BPM 1
Amplitude (-20) ~ 20mV 1mV 0.01





ECG Waveform P Amplitude 0 ~ 2mV 0.2mV 0.01
P Duration 50 ~ 100ms 100ms 1
QRS Amplitude (-20) ~ 20mV 1mV 0.1
QRS Duration 5 ~ 200ms 100ms 1
PR Interval 0 ~ 200ms 160ms 1
QT Interval 100 ~ 900ms 350ms 1
ST Deviation (-2) ~ 2mV 0mV 0.01
T Amplitude 0 ~ 5mV 0.2mV 0.01
Frequency (Hz) 0.02 ~ 6Hz 1Hz 0.01
Frequency (BPM) 1 ~ 360BPM 60BPM 1
Amplitude (-20) ~ 20mV 1mV 0.1



Signal add-on
　　　　　　 　　　　　　
Parameters Range Default Values Resolutions
DC offset (-1000) ~ 1000mV 0mV 1
Pacing Amplitude (-700) ~ 700mV 0mV 1
Duration 0.1 ~ 3ms 2ms 0.1
Pacing Rate 10 ~ 360BPM / Sychronization 10BPM 1
Overshooting (Amplitude) 0 ~ 5mV / Amplitude automatic 0mV 0.01
Overshooting (TimeConstant) 0 ~ 100ms 0ms 1
Baseline Overload Test Frequency 50 / 60Hz 50Hz -
620kΩ / 4.7 nF on / off Off -
Sine Wave add-on on / off Off -
Noise Main Noise 50Hz / 60Hz / White 50Hz -
Amplitude 0.01 ~ 5mV 0.1mV 0.01



Special Functions
　　　　　　 　　　　　　
Parameters Range Default Values Resolutions
Play raw data Sample rate Maximum: 20K Hz - -
NST Noise Noise Type EM - Electrode Motion Artifact
BW - Baseline Wander
MA - Muscle Noise		 EM
-
-		 -
-
-
Gain 0.1 ~ 10 1 0.1





Auto (Auto Heart Rate) Heart Rate 30, 60, 120, 180, 200, 250 - -
QRS Amplitude 0.5, 1, 2, 5 - -
QRS Duration 40, 70, 80, 100, 120 - -
Auto (Auto Pacing) Amplitude (mV) ±2, ±100, ±-300, ±-500, ±700 - -
Duration (ms) 0.1, 0.5, 1, 2 - -
Synchronization Synchronized / Asynchronized at 80BPM - -
Pulse Number Single / Double -150ms / Double -250ms - -
Overshoot (ms) 0, 4, 10, 20, 50, 100 - -
QRS/T on/off - -





Frequency Scan (Sine) Start 0.67 ~ 500Hz 0.67Hz 0.01
Stop 0.05 ~ 500Hz 150Hz 0.01
Duration 10 ~ 180s 30s 0.01





Frequency Scan (ECG) BPM - 3 ~ 30BPM -
Duration - 30s -
Lead Off Lead Off Detection Lead on / 10MΩ / 20MΩ / Lead off (open) Lead on
