Microorganism Identification and Drug Sensitivity Analysis System Calibration Device
Product Introduction
microbial identification and drug sensitivity analysis system is mainly used for the performance detection of the microbial
identification and drug sensitivity analysis system. The temperature and optical parameters of the system are calibrated
simultaneously by using the integrated detection of temperature and optical parameters based on temperature sensors and
optical sensors during the operation of the microbial identification and drug sensitivity analysis system. It is solved that the
positive test procedure using known bacteria quality control strains is complicated and false negative cannot be found, in
addition, the calibration of the temperature system cannot be synchronized with the positive test of the quality control strain
of the known genus, and the problem of the lack of the calibration method of the optical system.
to analyze the calibration results by detecting the temperature and optical signals in different holes where the microbial
identification and drug sensitivity analysis system is placed in the drug sensitivity identification plate, and by reading the
set temperature and the temperature and optical parameters monitored by the calibration device after the microbial
identification and drug sensitivity analysis system is placed in the calibration device of the microbial identification and drug
sensitivity analysis system. Comply with JJF 2034-2023 Calibration Specification for Microbial Identification and Drug
Sensitivity Analysis System
Product Features
temperature and illumination
multiple adapters, flexible arrangement of test points
a wide range of adaptability, adapt to more instruments under test
full wireless data transmission, test more convenient
Calibration report conforming to JJF 2034-2023 Calibration Specification for Microbial Identification and Drug Sensitivity
Analysis System
Product Specifications
| Product Name | Microorganism Identification and Drug Sensitivity Analysis System Calibration Device |
| Product Model | CY-2034 |
| Calibration Object | Microorganism Identification and Drug Sensitivity Analyzer |
| Measurement Points | 6 (temperature),6 (illumination) |
| working time | continuous working not less than 200 hours |
| Temperature measurement range | (0~50 )°C |
| accuracy | ± 0.1 ℃ |
| Temperature Resolution | 0.01 ℃ |
| Illumination Range | (0~10000)lx |
| Illumination Error | ± 5% |
| sampling interval | (1~10) times/second adjustable |
| communication mode | Wireless |
| power supply | lithium battery |
| working temperature | (15~50)℃ |

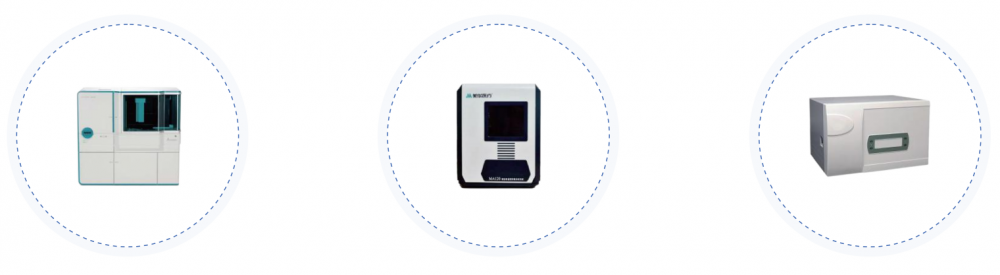

Adapted instrument
