Blood Gas Analyzer Calibration Device Supplier

Blood gas analyzer calibration device

Product Introduction

blood gas analyzer is a device used to measure oxygen, carbon dioxide, acid-base balance, electrolytes and metabolic indicators in the blood.

It is used to monitor and evaluate the patient's breathing, acid-base balance and electrolyte disorders. It is widely used in emergency, intensive

 care, operating rooms and other places involving respiratory and metabolic monitoring.

The blood gas analyzer calibration device (tension balance) is a device used to test the accuracy of the biological blood and other parameters

 measured by the blood gas analyzer. In accordance with the requirements of the tension balance instrument in the JJF2054-2023 "Calibration

Specification for Multifunctional Blood Gas Analyzer", the temperature of the balance chamber can be set according to the specification, and

the fluid sample, water and standard gas mixture simulating human blood can be loaded into the balance chamber and the humidification chamber as standard samples as required for the accuracy test of the blood gas analyzer.

 Product Features

small size, easy to carry flexible

convenient and fast connection, time-saving and labor-saving detection

is made of metal material, strong and durable

Touch screen display control, simple and clear operation steps, convenient and quick detection

The instrument is stable and reliable, and does not require special dimensions.

better software for automatic generation of calibration reports

Product Specifications

Product Model ：LFT2054

Air chamber temperature setting range ：37.0±0.1 ℃

thermostatic part ：<5kg

Overall dimension of air chamber ：D50mm * H130mm

Air chamber partial weight：<0.5kg

use ambient temperature:(15~30)℃; relative humidity:<85%

empty box barometer measurement range： (80~106)kPa accuracy: ± 0.2 kPa

Standard gas ：standard gas mixture of carbon dioxide and oxygen in nitrogen or standard gas mixture produced by precision gas mixing

system, Ur ≤ 1.5 (k = 2)

balanced sample buffer (including phosphate solution with buffer enhancer, hemoglobin buffer and perfluorocarbon emulsion)

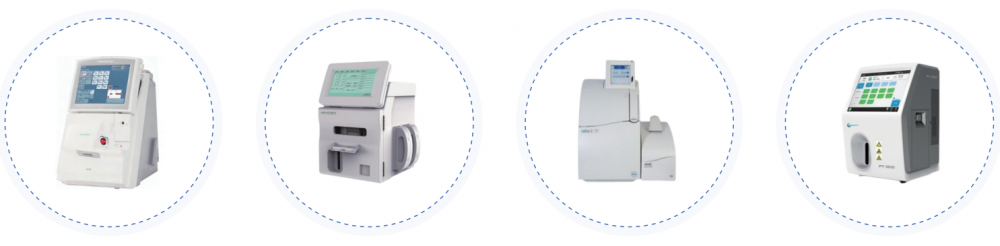

Adapted instrument
