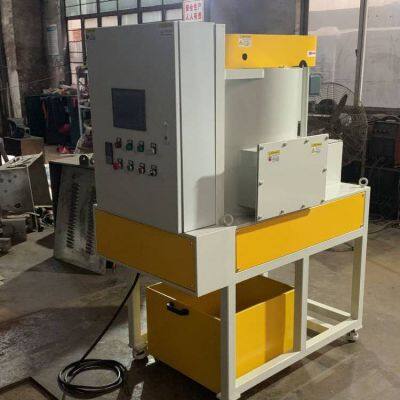

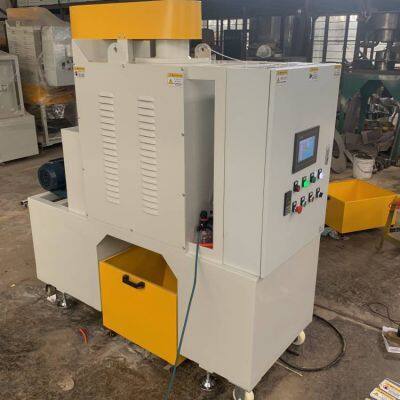

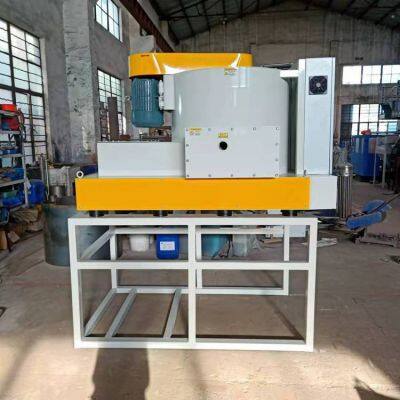

Help CenterCeramic Grinding Fluid Filtration Equipment, Water-based Filter, Powder Impurity Filtration, Automatic Discharge Centrifuge
Related Products
-
Jialv Demulsification and Dehydration Filtration Equipment, Stainless Steel Hydraulic Oil Mobile Oil Filter CartUS$ 1000 - 1046.15MOQ: 1 Unit -
Hong Shenglong Hydraulic Oil Refueling Vehicle, Portable Oil Filter, Mobile Lubricating Oil Filter CartUS$ 400 - 430.77MOQ: 1 Unit
-
Optical Glass Centrifuge, Low-cost Oil Purification Equipment, Rapid Oil Residue Separation EquipmentUS$ 10000 - 10153.85MOQ: 1 Set
-
Centrifugal Oil Filter, Die-casting Oil Filtration, Lubricating Oil Filter, Fully Automatic Slag Discharge CentrifugeUS$ 10000 - 10153.85MOQ: 1 Set
-
Cold Heading Oil Filter, Lubricating Oil Filter, Rapid Oil Residue Separation EquipmentUS$ 10000 - 10153.85MOQ: 1 Set
Shanghai Jialv Environmental Protection Equipment Co., Ltd. produces filtration equipment, oil filters, sewage purification and emission reduction equipment, and provides equipment rental services. Free sample testing is available.
Phone: Mr. Wu (18962227271)
Centrifugal separators are ideal equipment for removing impurities from liquids and are commonly used to separate particulate matter from aqueous liquids and oils.
Such as coolants, cutting fluids, and grinding fluids in machining centers. Through the centrifugal filter, magnetic or non-magnetic impurities in the aqueous liquid can be separated. It is used for the separation and purification of cutting fluids in engineering such as CNC cutting, milling and grinding (rough folding), fine grinding (sand hanging), and edge grinding (core taking) to achieve reuse.

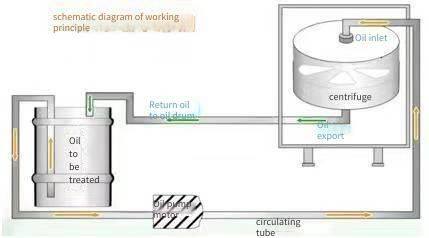

This equipment is equipped with a latch seat on the aluminum barrel cover, and a cylinder is installed on the latch seat. The cylinder inserts the latch into the latch seat to achieve automatic control. There is no need for manual cleaning, and the dirt and impurities adsorbed in the barrel can be cleaned out through its own cleaning device.
Main technical parameters of the fully automatic discharging centrifugal oil filter:
Model |
SYJJ-40-QZ |
SYJJ-80-QZ |
SYJJ-120-QZ |
|
Application scope |
Drawing oil and hydraulic machine oil, etc. |
|||
Filtration accuracy |
≥0.01 microns |
|||
Flow rate |
25L/min |
50L/in |
75L/min |
|
Operating temperature range |
0℃-120℃ |
|||
Operating viscosity range |
9-460cst |
|||
Inlet and outlet diameters |
Inlet RC3/4, Outlet RC2 |
RC2 |
||
Pressure gauge |
ф60 oil-containing pressure gauge 0-10kgf/cm2 |
|||
Weight |
- |
|||
Suitable oil tank |
||||
