   Zhangjiagang Hongshenglong Machinery Co., Ltd. is engaged in filtration equipment, customized environmental protection equipment, water treatment, oil purification treatment, sewage treatment, waste liquid reduction.

We have many years of sales and experience in filtration equipment-related products and services. Technical hotline:         Wu (18962227271)

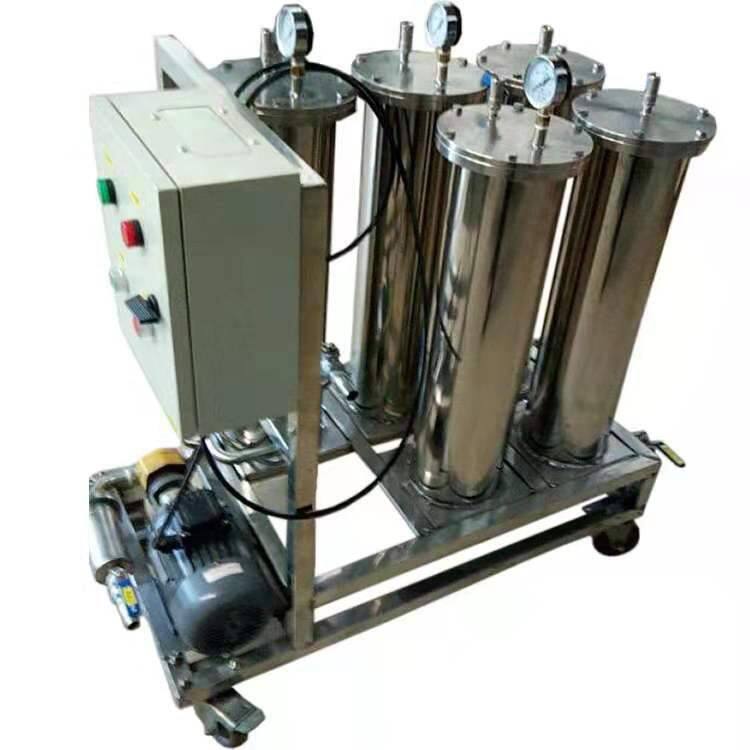

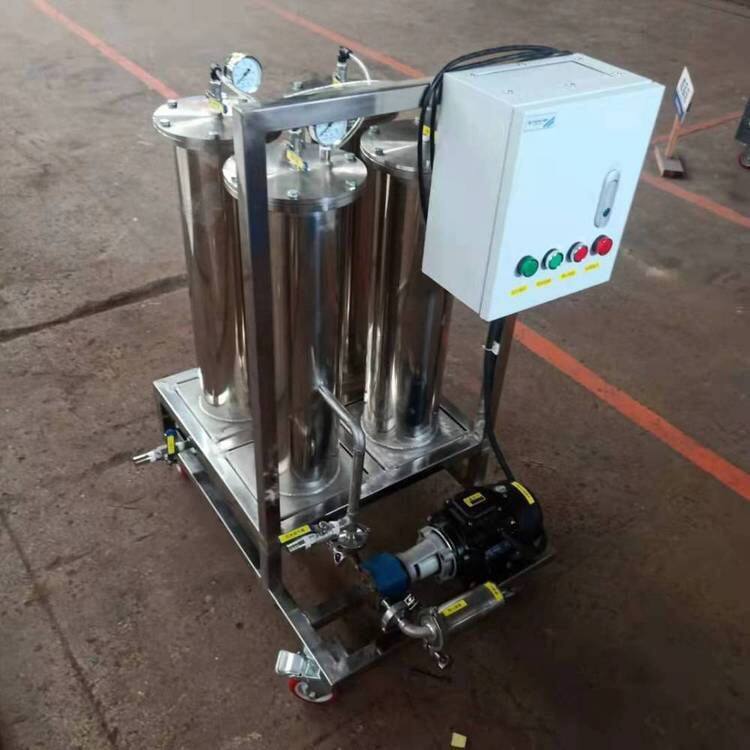

  Single-barrel filtering and dewatering oil filter truck

: The single-barrel filtering and dewatering oil filter truck is a mesh-filtering type oil filter truck. It can control the oil pollution degree to NAS 5 - 8 levels, with a large dirt-holding capacity and good oil-passing ability. This oil filter truck is a mobile oil filtering device. It can perform regeneration, purification and filling on new and old oils that have been contaminated during transportation, storage and use.



Features and effects:

1. Use the filter materials produced (optional dewatering filter element);

2. The filter is equipped with a bypass valve;

3. It has a pressure protection function.

4. The coarse filter at the oil suction port protects the oil pump and extends the service life of the filter element;

5. The addition of directional front wheels makes the movement more flexible and lightweight;

6. The addition of an oil pan and oil pipe fixing device reduces the possible environmental pollution to the site;

7. Strong interchangeability.

HSL-B1 type single-barrel filtering and dewatering oil filter truck main technical parameters:

Model

HSL-B1-16

HSL-B1

-40

HSL-B1-63

HSL-B1- 100

HSL-B1- 150

HSL-B1- 200

HSL-B1- 300

Treatment capacity ( L/H )

1000

2400

3600

6000

9000

12000

18000

Operating Voltage / Capacity (V/KW)

380/0.37

380/0.75

380/1.1

380/1.5

380/5.5

380/7.5

380/10

Applicable Viscosity (cSt)

320

Operating Temperature (℃)

90

Designed Working Conditions

Offline or Online Filtration

Medium

Petroleum-based oils such as turbine oil, hydraulic oil, synthetic oil, etc.

Oil Pipe Inlet/Outlet Size

25

32

50

80

Filtration Accuracy

1, 3, 5, 7, 12um (User's Choice)

Working Pressure (Mpa)

Inlet Pressure (Mpa)

> -0.045

Body Dimensions (mm)

560*400*960

650*650*1300










Product Tags: Portable oil filter truck , Mobile filter trolley , High-flow oil filter , Lubricating oil filter , Lubricating oil purification equipment
