the FCL964 90-Gallon Yellow Safety Cabinet stands as your first line of defense against catastrophic fire incidents. This heavy-duty storage solution is engineered to meet and exceed international safety protocols, providing a secure environment for your hazardous materials.
Why High-Capacity Storage Matters
Storing 90 gallons of flammable liquids requires more than just a metal box; it requires a precision-engineered safety system. The FCL964 is designed for facilities that handle large quantities of solvents, fuels, and chemicals. By centralizing your hazardous inventory in a certified cabinet, you reduce the risk of "fire spread" and ensure that emergency responders have a controlled, predictable environment if an incident occurs.
Technical Specifications: FCL964 At a Glance
| Feature | Specification Details |
| Model Number | FCL964 |
| Capacity | 90 Gallons (340 Liters) |
| Material | 18-Gauge Double-Walled Cold Rolled Steel |
| Insulation | 38mm (1.5") Insulating Air Space |
| Safety Standard | OSHA 29 CFR 1910.106 & NFPA Code 30 |
| Locking System | Three-point Interlocking Cam Lock |
| Sump Capacity | 50mm (2") Leak-proof Liquid-tight Sump |
| Finish | Lead-free Epoxy-polyester Powder Coat |
Key Features and Industrial Benefits
1. Superior Fire-Resistant Construction

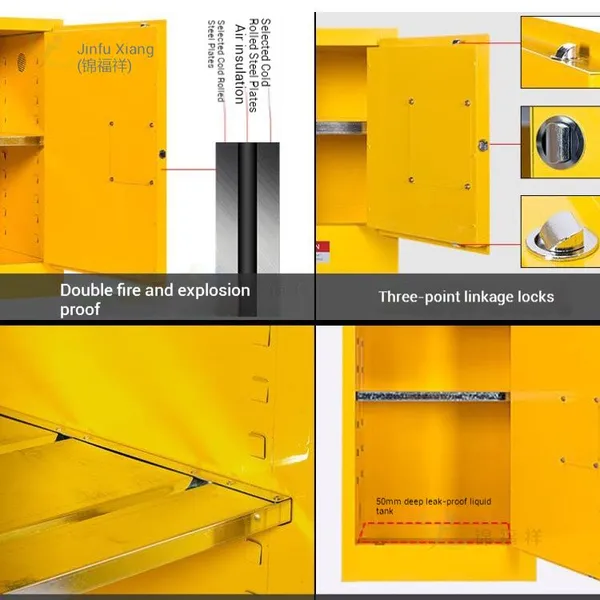

The FCL964 is built using 18-gauge double-walled steel. The 38mm (1.5-inch) air space between the walls acts as a thermal barrier, significantly slowing down the internal temperature rise during an external fire. This "fire-box" effect gives employees critical time to evacuate and allows fire crews to contain the heat before the chemicals reach their flashpoint.
2. High-Visibility Safety Yellow
Finished in a bright, electrostatically sprayed epoxy resin paint, the cabinet is impossible to miss. This high-visibility yellow is the international standard for flammable liquids. The coating is not only eye-catching but also highly resistant to corrosion, oxidation, and chemical splashes, ensuring the cabinet remains functional in harsh industrial environments.

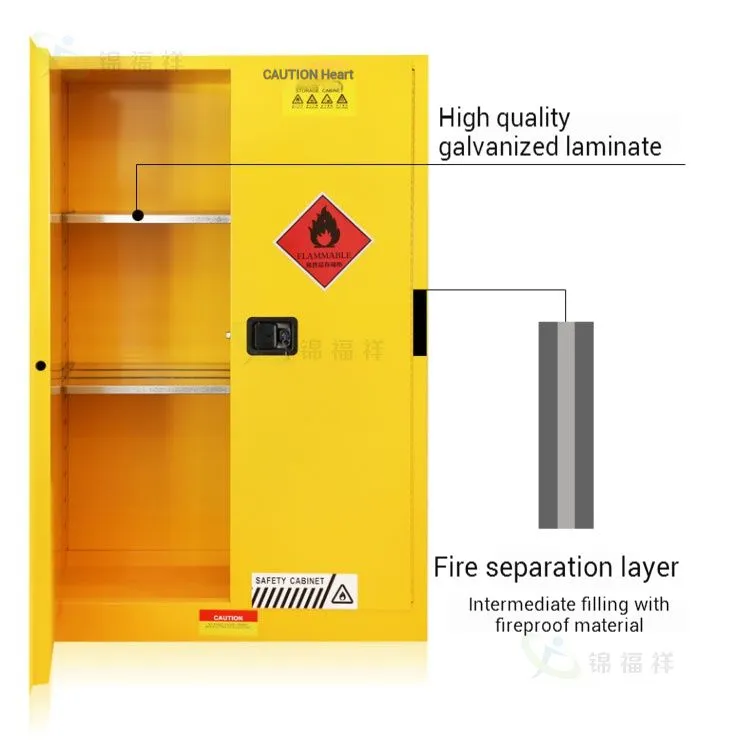

3. Adjustable Galvanized Laminates (Shelves)
The FCL964 features adjustable high-strength galvanized laminates. These shelves are designed to hold heavy drums and containers without bending. More importantly, they are perforated or angled to direct any minor spills toward the leak-proof sump at the bottom, keeping your containers clean and dry.

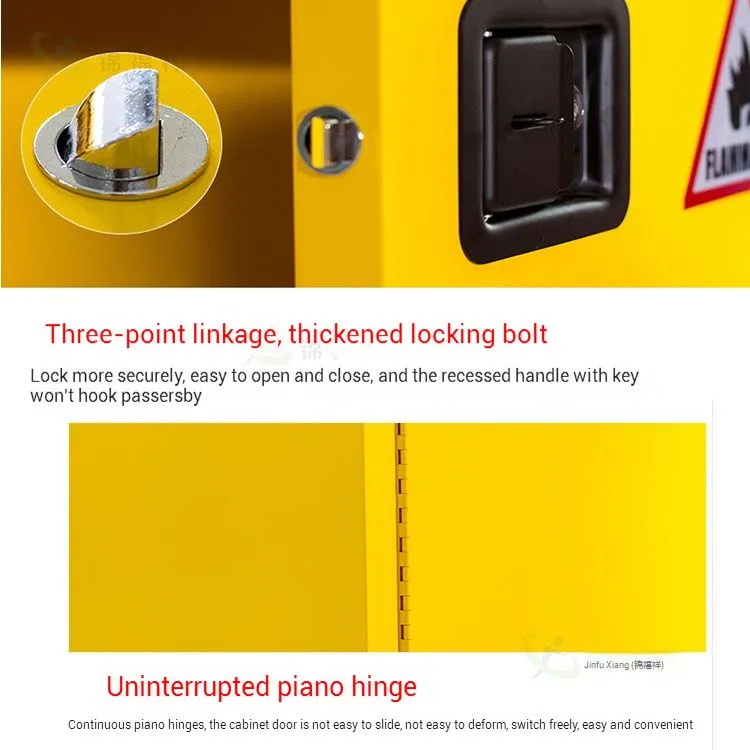

4. Advanced Three-Point Locking System
Security is paramount when storing hazardous materials. The FCL964 utilizes a three-point interlocking cam lock system. This ensures that the door is secured at the top, middle, and bottom simultaneously. The recessed handle prevents snagging in busy aisles and can be padlocked for "double-lock" authorized-personnel-only access.
Compliance: Meeting OSHA and NFPA Standards
For any industrial facility in the US or operating under international safety standards, compliance is non-negotiable. The FCL964 is designed to satisfy:
OSHA 1910.106: Regulations for the safe storage of flammable and combustible liquids.
NFPA 30: The National Fire Protection Association’s code for reducing fire hazards.
By using this cabinet, you avoid heavy fines during safety inspections and, more importantly, ensure the long-term viability of your facility’s insurance coverage.
Optimized Ventilation for Safety

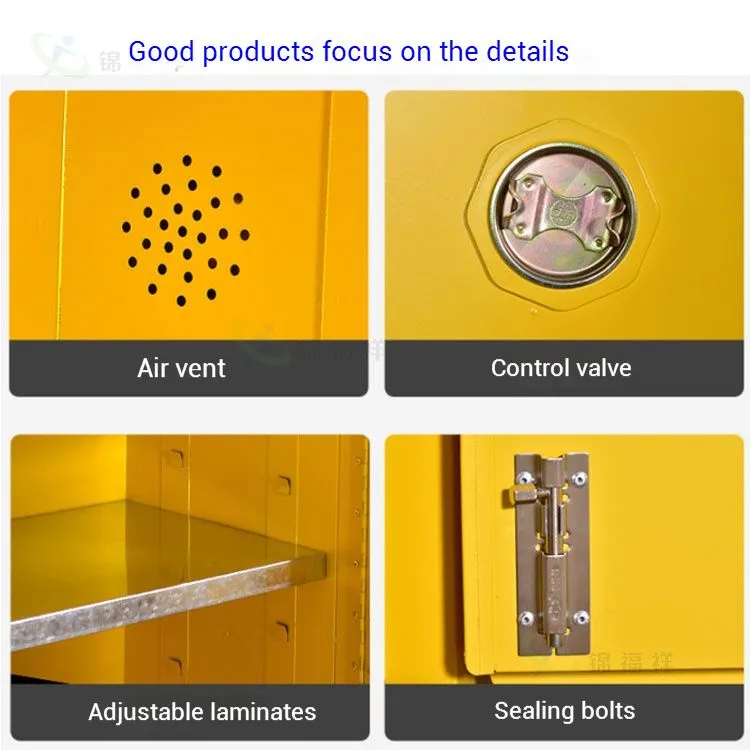

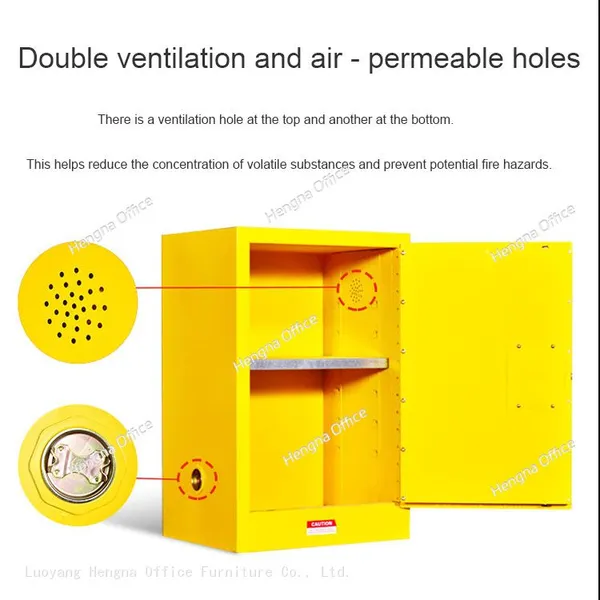

Flammable liquids often emit vapors that can become explosive in confined spaces. The FCL964 is equipped with dual vent holes featuring built-in flame arresters. These vents allow for proper airflow to prevent vapor buildup while ensuring that an external flame cannot travel back into the cabinet.
Ergonomic and User-Friendly Design
Despite its massive 90-gallon capacity, the FCL964 is designed for ease of use:
Continuous Piano Hinges: Ensuring the doors open and close smoothly every time, even with heavy use.
Built-in Grounding Connector: Specifically designed to dissipate static electricity, preventing sparks during the transfer of liquids.
Leveling Feet: Adjustable legs ensure the cabinet remains perfectly stable on uneven factory floors.
Frequently Asked Questions (FAQ)
Q1: Can the FCL964 be used for corrosive chemicals as well?
A: While the FCL964 is highly durable, it is specifically designed and color-coded (Yellow) for flammable liquids. For strong acids or corrosive chemicals, we recommend our Blue Corrosive Storage Cabinets, which feature specialized polyethylene liners to prevent chemical erosion of the steel.
Q2: How do the adjustable laminates handle weight distribution?
A: The galvanized shelves are "High-strength" rated. Each shelf can typically support significant weight (up to 100kg depending on the specific configuration), and the self-tightening buckle design ensures that once the shelf is locked into the slots, it will not slip or tilt under load.
Q3: Why is the 2-inch sump at the bottom so important?
A: The 50mm (2-inch) leak-proof sump is a critical safety feature required by law. In the event of a container leak or rupture, the sump contains the liquid within the cabinet, preventing the flammable spill from flowing across the factory floor and creating a massive fire path.
Investing in the FCL964 90-Gallon Yellow Safety Cabinet is an investment in your company’s future. It provides the highest level of protection for industrial-scale chemical storage, ensuring your facility remains compliant, your workers remain safe, and your assets remain protected from fire hazards.
