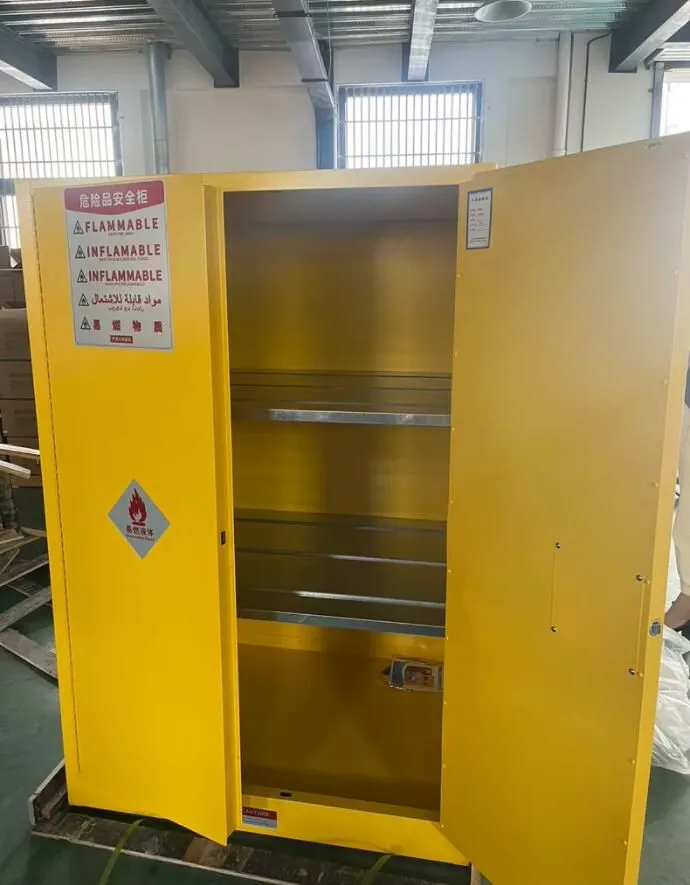

The 110 Gallon Extra-Wide Flammable Safety Cabinet is our largest standard storage solution, designed for facilities that refuse to compromise on safety or capacity. With an expansive width of 1500mm and a total footprint of 1650 * 1500 * 860mm, this "Master Locker" allows you to consolidate an entire department's chemical inventory into one highly secure, fire-rated vault.
The Problem: Fragmented Risk in Large Plants
In large-scale manufacturing, having dozens of small cabinets scattered across the floor creates "pockets of risk" that are hard to monitor. Safety audits become tedious, and the chances of a protocol breach increase. The 110-Gallon model solves this by centralizing bulk storage. One location, one grounding point, and one master security seal—drastically simplifying your safety management workflow.
110-Gallon Master Specifications
Built for the most demanding industrial environments, this cabinet features reinforced engineering:
Component |
Technical Specification |
Strategic Advantage |
Storage Volume |
110 Gallons (approx. 416 Liters) |
Industry-leading standalone capacity |
External Dimensions |

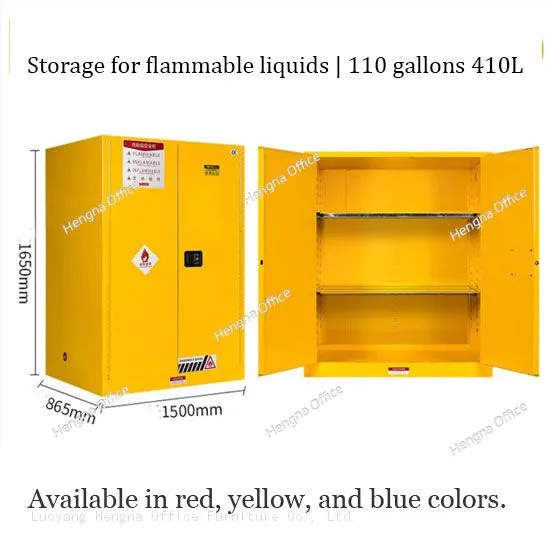

1650(H) * 1500(W) * 860(D) mm |
Extra-wide for massive inventory |
Shell Material |
18-Gauge (1.2mm) Double-Wall Steel |
Maximum fire barrier integrity |
Door System |
3-Point Interlock Cam Lock |
High-security unauthorized access deterrent |
Shelf Capacity |
Heavy-Duty Reinforced Galvanized |
Supports tiered bulk storage |
Spill Containment |

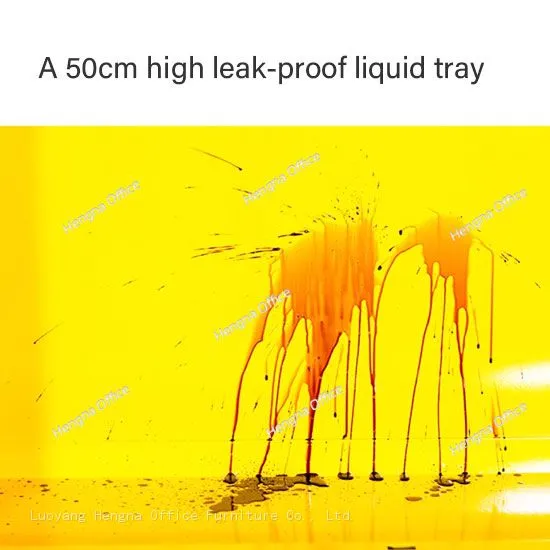

50mm (2-inch) Leak-Proof Sump |
Captures large-scale accidental leaks |
Grounding |
Dual Static Grounding Lugs |
Essential for safe bulk-liquid handling |
Maximum Protection for High-Volume Facilities
1. Extra-Wide "Master" Access
The 1500mm width provides an expansive interior that accommodates wide-profile containers and high-volume shelving. This "Master" design allows for better organization of diverse chemical types (within the same hazard class), making inventory counts faster and reducing the time workers spend searching for materials.
2. Reinforced Structural Engineering
Supporting 110 gallons of liquid (over 400\text{kg}) requires more than just standard steel. This cabinet features reinforced internal ribbing and all-welded seams to ensure it never sags or warps under full load. The double-wall construction (38mm air gap) acts as a thermal shield, keeping your massive chemical investment safe from external fire threats.

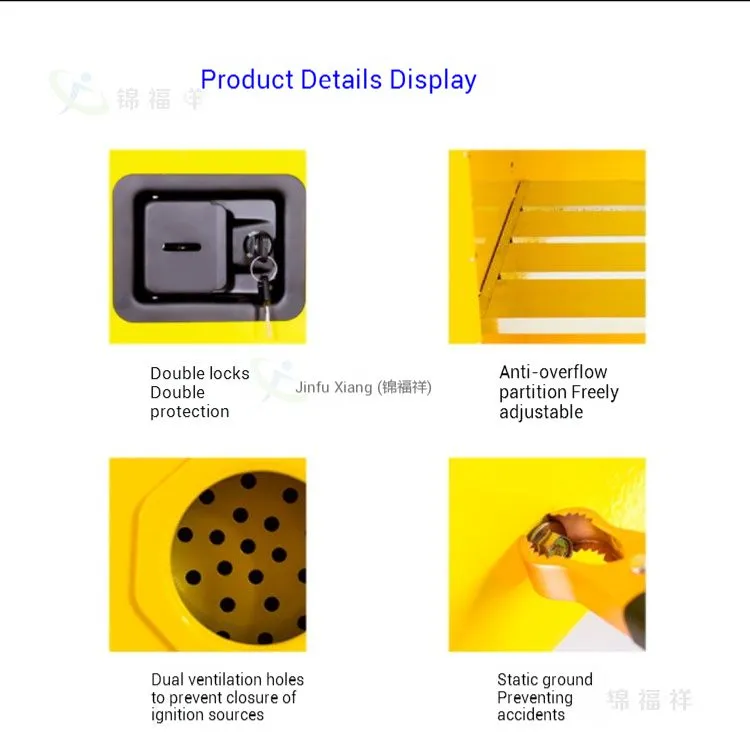

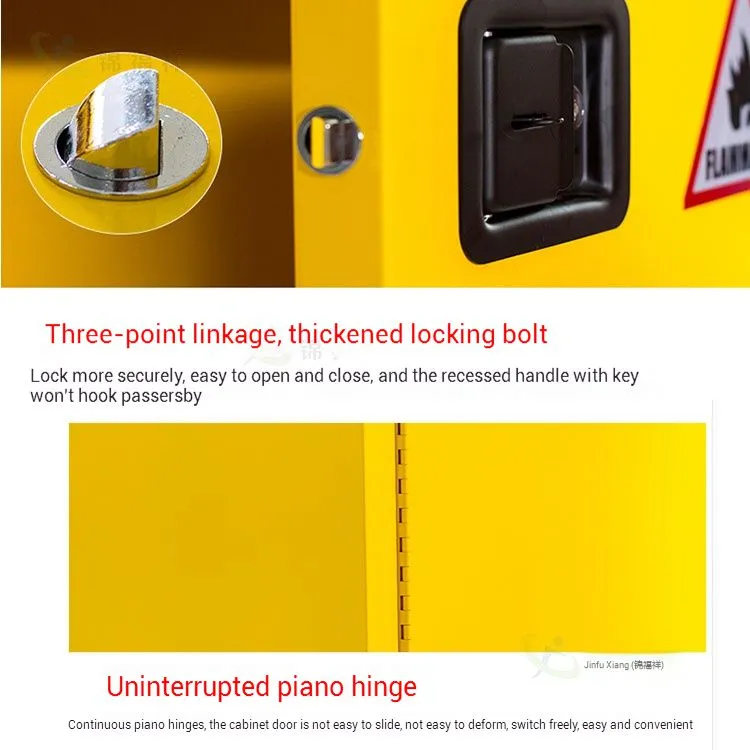

3. Professional Interlock Security
Large facilities need strict access control. Our 3-point interlock cam lock system is built into a heavy-duty handle that can be padlocked for extra security. This prevents unauthorized personnel from accessing sensitive or expensive bulk chemicals, while the stainless steel bullet latches ensure a spark-free, airtight seal every time.
4. Dual Static Dissipation Points
In large-scale manufacturing, static electricity is a constant threat. We have equipped the 110-gallon model with dual grounding lugs. This allows you to create a redundant grounding path, ensuring that even during high-speed chemical dispensing or inventory movement, static buildup is safely neutralized before it can cause a spark.
Frequently Asked Questions (FAQ)
Q1: Will this cabinet fit through a standard industrial doorway?
A: With a width of 1500mm, this cabinet is wider than standard office doors but fits easily through double industrial doors or loading dock entries. We recommend measuring your entire delivery path (including elevator doors) before ordering this master-sized unit.
Q2: Can the shelves be configured to hold different sized drums?
A: Yes. The heavy-duty galvanized shelves are fully adjustable. While the cabinet is designed for pails and cans, the width allows for very flexible internal layouts. You can have one side for tall containers and the other side partitioned for smaller bottles.
Q3: Does the 110-gallon capacity count toward my "Maximum Allowable Quantity" (MAQ)?
A: Yes. Fire codes (like NFPA 30) limit the amount of flammable liquid you can store in a single area. Consolidating into one 110-gallon cabinet is an efficient way to use your "protected storage" allowance, but always check with your local Fire Marshal regarding the total MAQ for your specific building type.
