the YTLD2 45 Gallon Flammable Safety Cabinet is the undisputed leader. Known as the "Workhorse of Industry," this cabinet provides a massive storage capacity in a vertical, ergonomic design. Measuring 1650 * 1090 * 460mm, it allows facilities to centralize their hazardous materials, ensuring that large quantities of paints, thinners, and solvents are secured in a single, fire-rated location.
Engineering Excellence for High-Risk Environments
In a paint mixing room, the air is often heavy with volatile organic compounds (VOCs). A single spark from a tool or static electricity can lead to an inferno. The YTLD2 is engineered not just as a locker, but as a containment system designed to withstand industrial-grade wear and tear while providing a fail-safe barrier against thermal events.
YTLD2 Engineering Specifications
For procurement teams and safety engineers, the YTLD2 offers premium specifications that exceed standard storage requirements:
Engineering Metric |
Specification |
Operational Advantage |
Model Number |
YTLD2 |
Industrial flagship series |
Storage Volume |
45 Gallons (170 Liters) |
Best-selling size for manufacturing |
External Dimensions |
1650(H) * 1090(W) * 460(D) mm |
Space-efficient vertical storage |
Wall Gauge |
18-Gauge (1.2mm) Steel |
Superior dent & fire resistance |
Air Insulation |
38mm (1.5") Dead Air Gap |
Thermal protection for internals |
Door Latch |
3-Point Stainless Steel Bullet |
Spark-free, secure closure |
Shelving |
Galvanized Spill-Slope |
Supports up to 150\text{kg} per shelf |
Key Technical Advantages
1. Heavy-Duty 18-Gauge Steel Construction
Industrial environments are rough. The YTLD2 is built from all-welded 18-gauge cold-rolled steel. Unlike thinner, cheaper cabinets that warp under heat, our 1.2mm thick walls provide the structural integrity needed to keep doors operational and seals intact during a fire emergency. The double-wall design creates a robust thermal pocket that significantly delays the internal temperature spike.

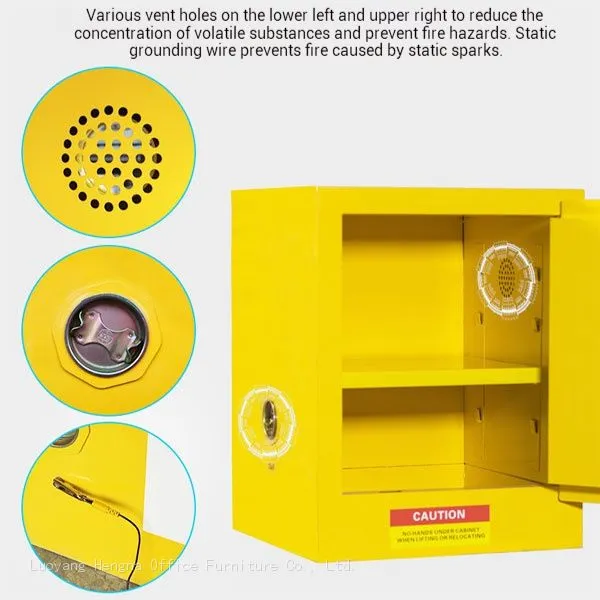

2. Dual Fire Vents with Integrated Flame Arrestors
Effective ventilation is critical in a paint mixing room. The YTLD2 is equipped with two strategically placed vents (high and low) to allow for natural air circulation, preventing the dangerous buildup of flammable vapors. Each vent is fitted with a stainless steel flame arrestor—a mesh screen that allows gas to flow out but prevents an external fire from "flashing back" into the cabinet.

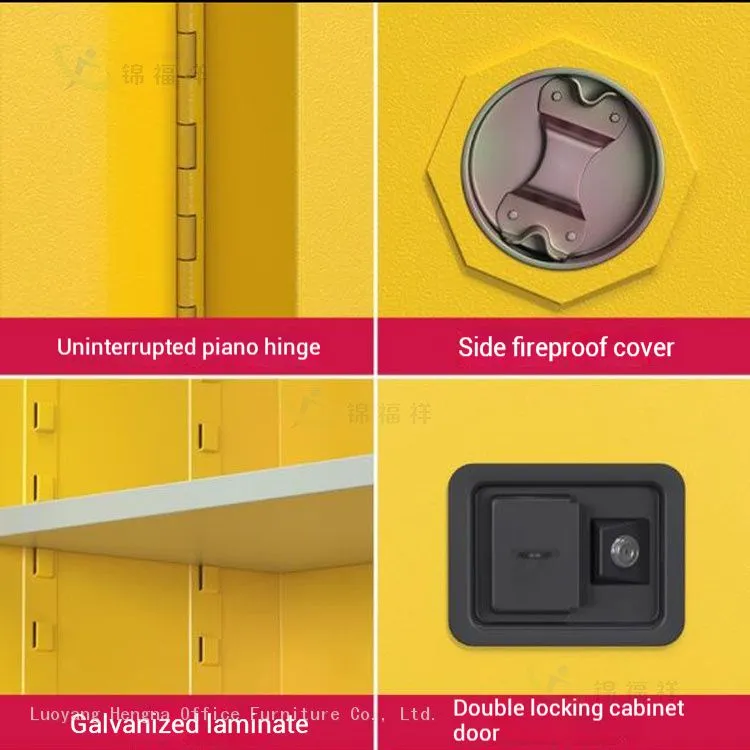

3. 3-Point Stainless Steel Bullet Latching System
Security and safety go hand-in-hand. Our 3-point latching system engages at the top, center, and bottom of the door. The "bullet" style latches are made of high-grade stainless steel to prevent corrosion and ensure a smooth, spark-free engagement every time. Even if the cabinet is bumped by a forklift or cart, the reinforced door frame keeps your chemicals locked away.

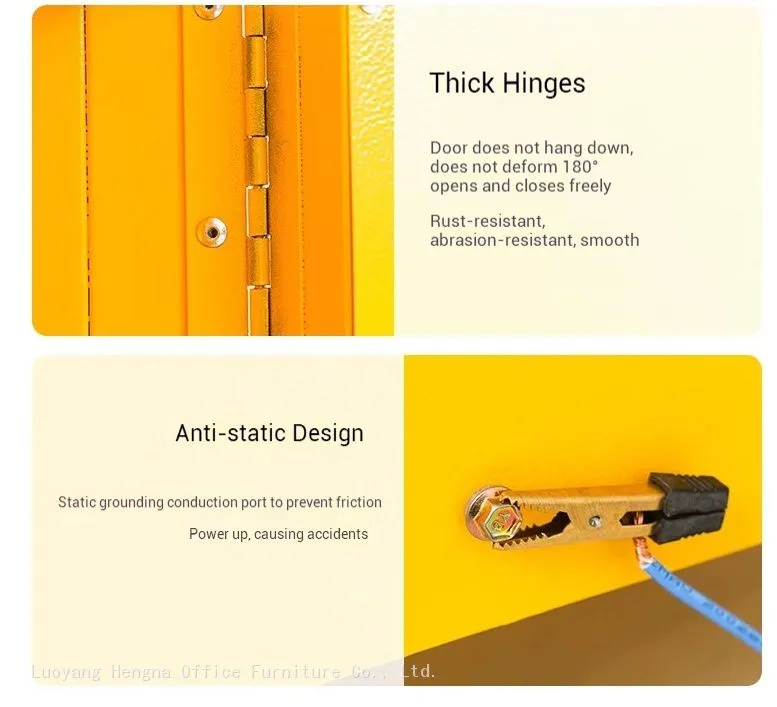

4. Specialized Grounding for Static Control
Static electricity is the #1 cause of fires during chemical transfers. The YTLD2 features a built-in static grounding connector on the side panel. By properly grounding the cabinet, you ensure that any static built up by employees or moving containers is safely dissipated into the earth, eliminating the risk of a catastrophic spark.
Optimization for Paint Mixing Rooms
The 1650mm height is specifically chosen so that workers can access materials at eye level, reducing the need for bending or reaching. The 460mm depth is slim enough to line the walls of a mixing room without obstructing the center floor space where mixing equipment typically sits.
Frequently Asked Questions (FAQ)
Q1: How many standard 20-liter (5-gallon) paint pails can the YTLD2 hold?
A: Depending on how you arrange the adjustable shelves, the YTLD2 can typically hold up to 9 to 12 standard 5-gallon pails. Its 1090mm width allows for three pails per level with room for easy handling.
Q2: Is the epoxy finish resistant to paint thinners and aggressive solvents?
A: Yes. The YTLD2 is coated with a high-performance lead-free epoxy powder. This coating is specifically baked on to resist chemical "softening" or peeling when exposed to splashes from common solvents like lacquer thinner, mineral spirits, or acetone.
Q3: Can the shelves be tilted to help manage leaks?

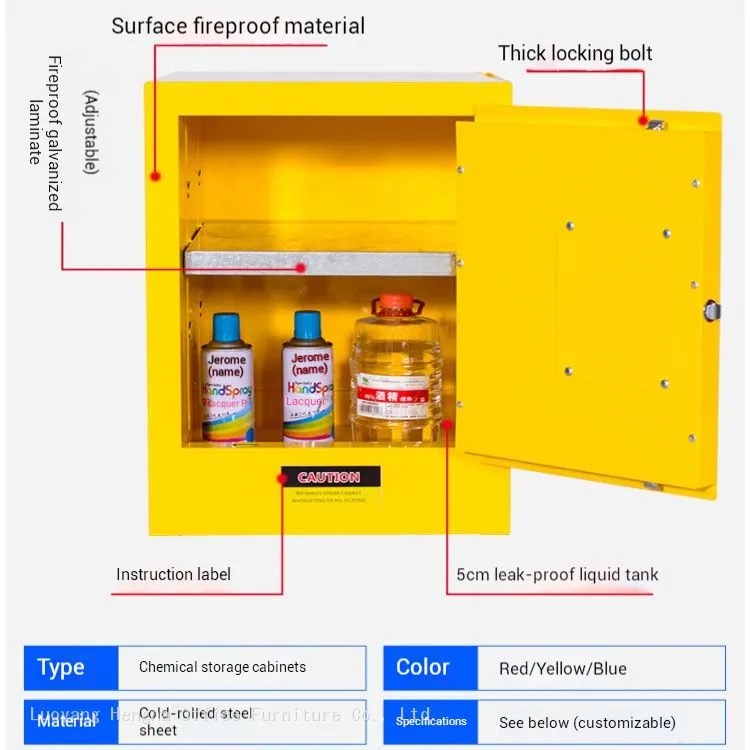

A: Our galvanized shelves are designed to sit level for stability but feature a "spill-slope" edge. Any leaks are directed away from the door and toward the back, where they drain into the 50mm leak-proof sump at the bottom for easy cleanup.
A: Absolutely. The galvanized steel shelves can be adjusted in 6.5\text{cm} increments. This allows you to customize the interior to fit anything from small spray cans to large 20-liter (5-gallon) industrial solvent pails.
