I. Basic Introduction

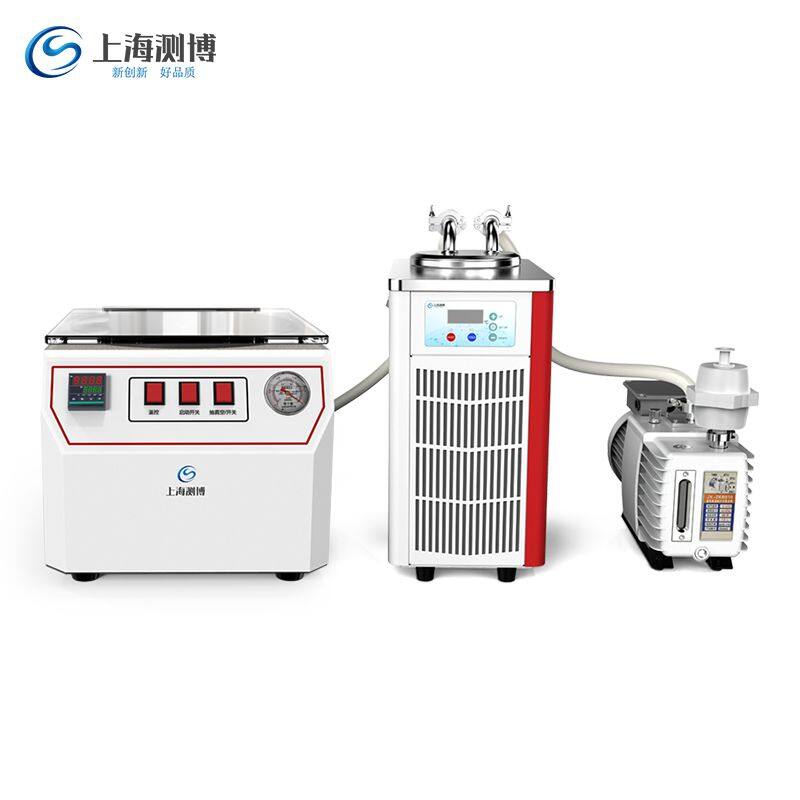

The vacuum centrifugal concentrator utilizes a combination of centrifugal force, heating, and the vacuum provided by an external vacuum pump to evaporate solvents. It can process multiple samples simultaneously without causing cross-contamination. The centrifugal force generated by high-speed rotation effectively separates the solid and liquid phases in the solution. Subsequently, by adjusting the vacuum system, the pressure inside the centrifuge chamber is reduced, allowing the solvent to evaporate rapidly at a lower temperature, thus achieving sample concentration and purification. This method not only improves the efficiency of concentration but also helps to preserve the activity of the samples.
II. Product Features
1. Easy to operate: One-button start/stop function, simple and easy to understand.
2. The rotor offers a wide variety of types, is easy to replace, and can be picked up and placed as needed, meeting various experimental requirements. 3. Safe to use: It features automatic sample protection upon power loss and automatic pressure relief to prevent samples from boiling and splashing out of the centrifuge tube when the machine is stopped; the tempered glass is highly rigid, safe, and reliable.
4. Fully functional: One-button heating up to 100℃; epoxy-coated chamber with high thermal conductivity, centrifugal imaging function: enabling non-stop observation of sample concentration progress (optional flash frequency meter); 5. New electromagnetic drive system: high torque, low loss, low vibration, corrosion resistance, green and environmentally friendly, brushless motor, microprocessor control.
III. Application Fields
DNA/RNA research, biochemistry, bioanalysis, immuno-screening, food safety, residue analysis, environmental testing, life sciences, molecular biology, academic research, forensic medicine, drug analysis, HPLC (high-performance liquid chromatography), synthesis and separation of organic substrates, toxicological identification, forensic identification, SPE (solid-phase extraction), general laboratory concentration, etc.

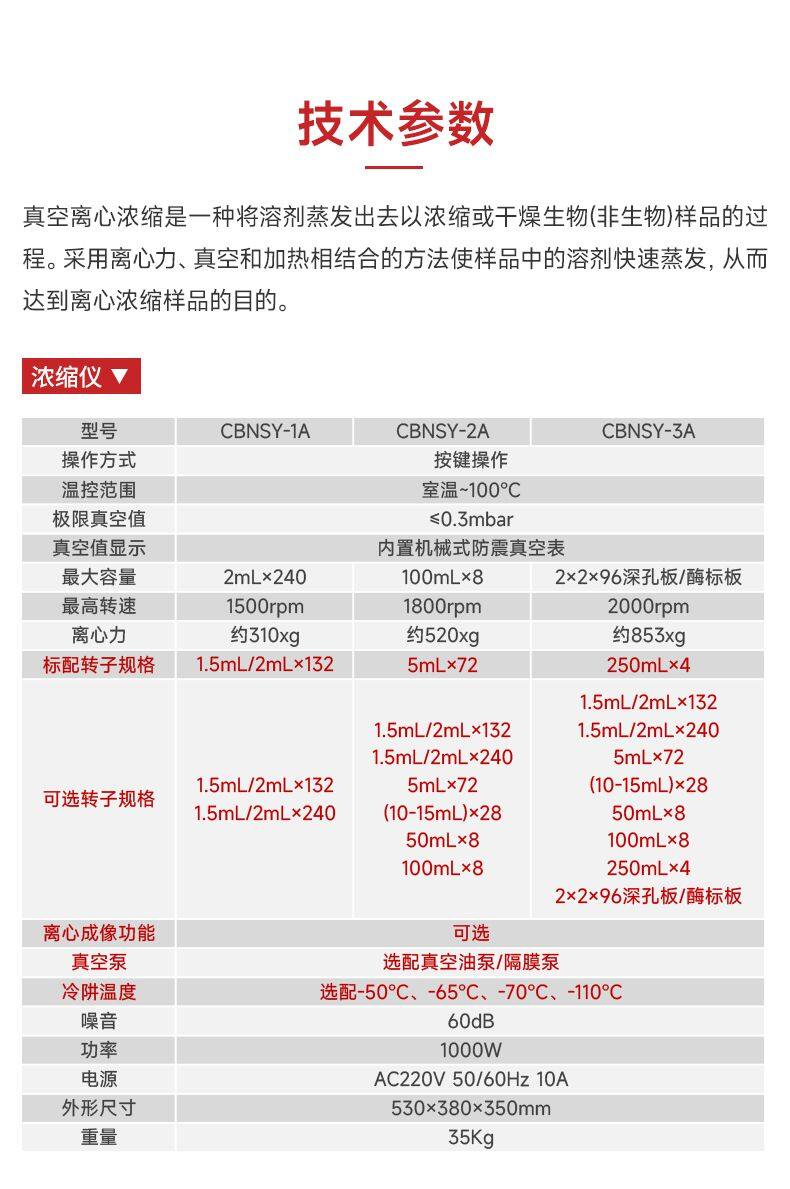

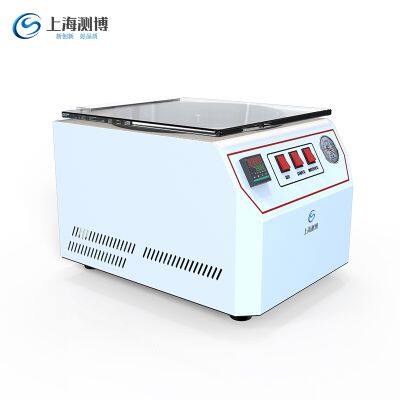

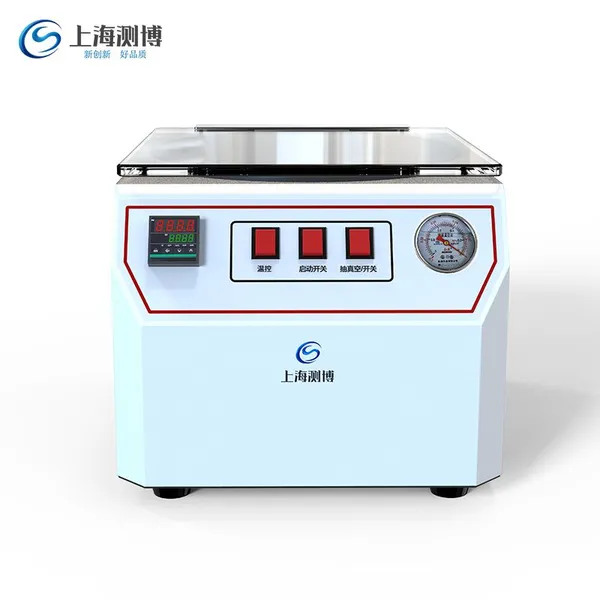

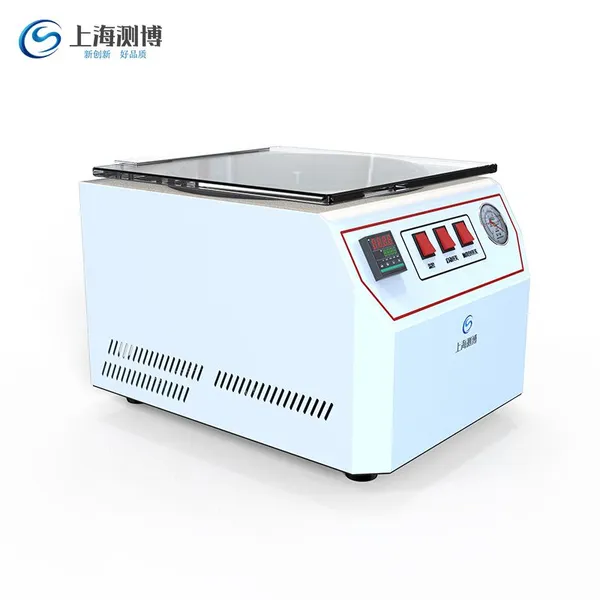

Host model: CBNSY-1A
Operation mode: Key operation
Temperature control range: Room temperature to 100℃
Ultimate vacuum value ≤ 0.3 mbar
Vacuum value display: Built-in mechanical shockproof vacuum gauge

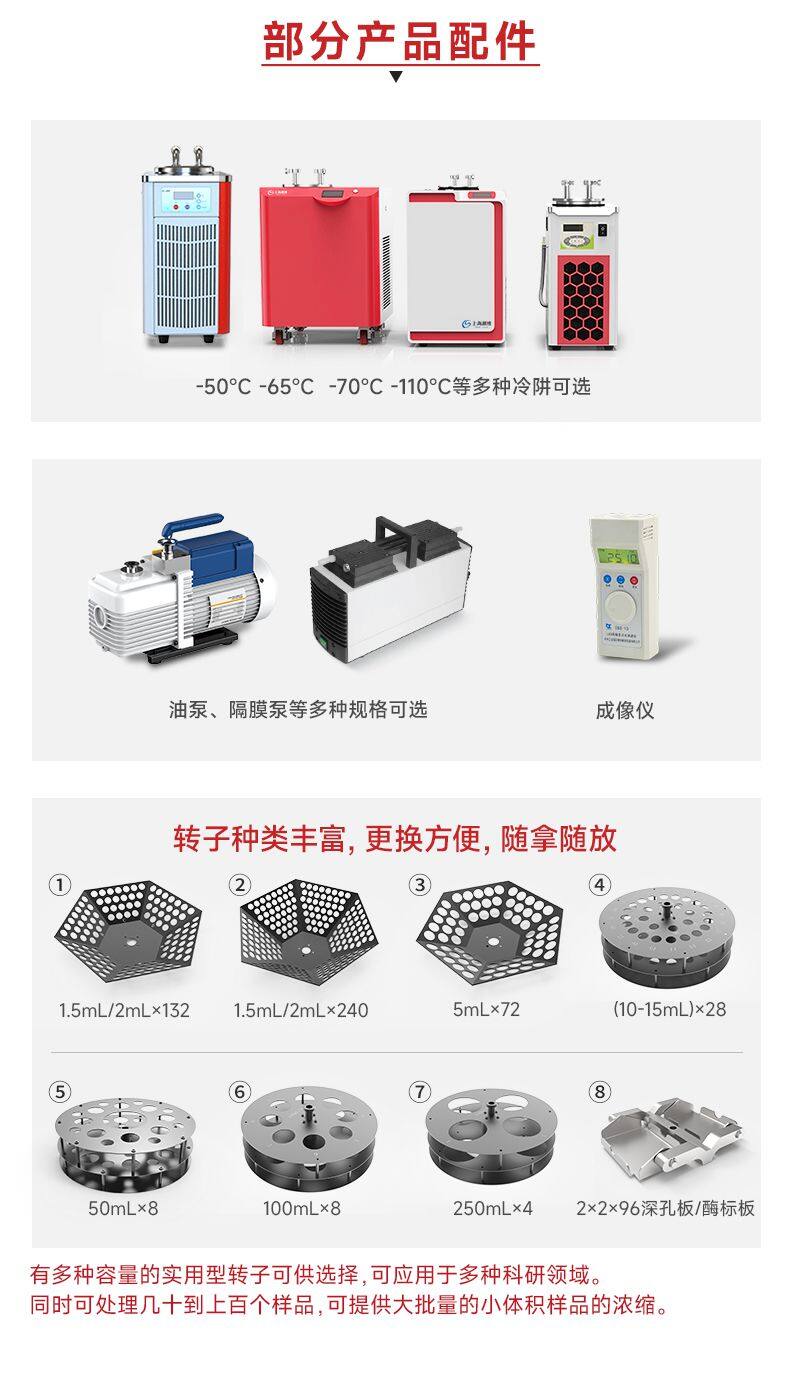

Maximum capacity: 2mL*240/1.5mL/2mL*132/1.5mL/2mL*240/5mL*72/50mL*8/(10mL-15mL)*28/100mL*8/250mL*4/Or it can be customized according to your requirements
Maximum speed: 1500rpm
Centrifugal force: approximately 310xg
Centrifugal imaging function is optional

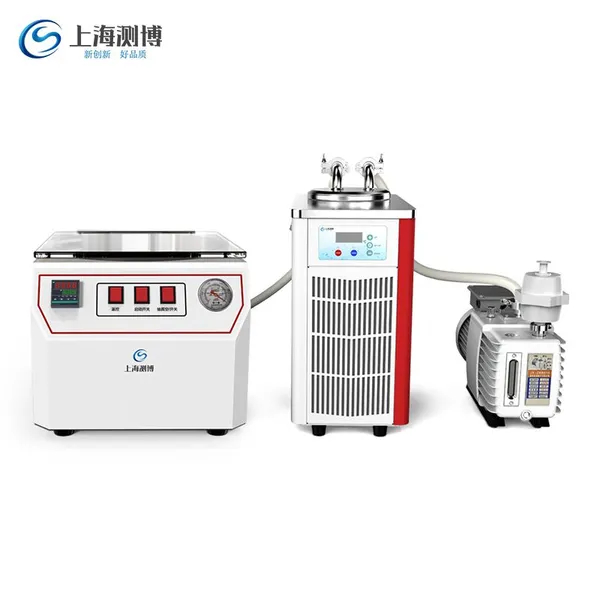

Vacuum pump: Optional vacuum oil pump/diaphragm pump

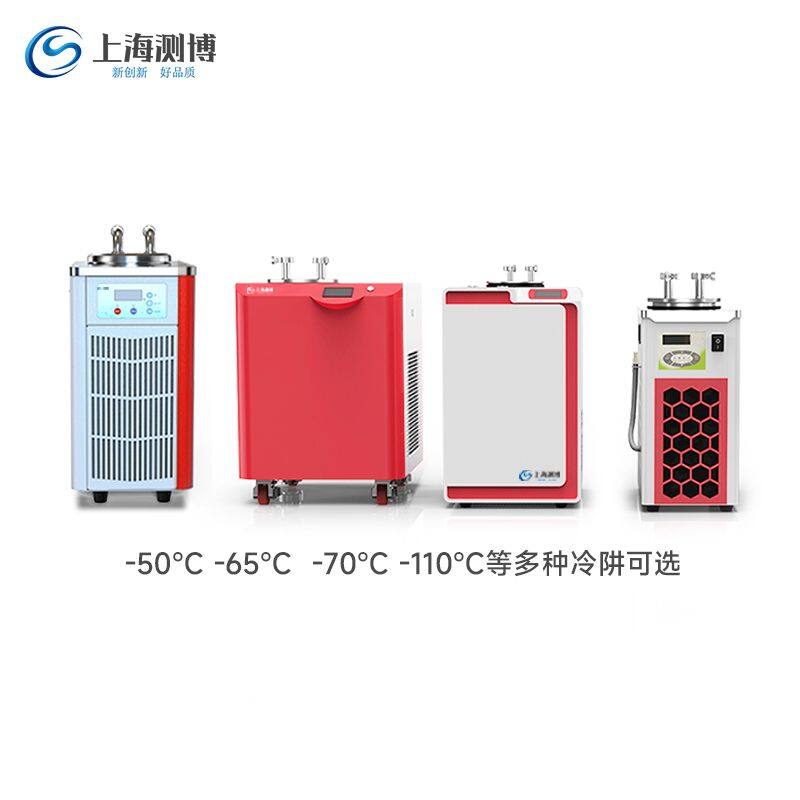

Cold trap temperature: options include -50℃, -65℃, -70℃, and -110℃
Noise: 60dB
Power: 1000W
Power supply: Customizable according to your requirements
Overall dimensions: 530mm*380mm*350mm
Weight: 35kg

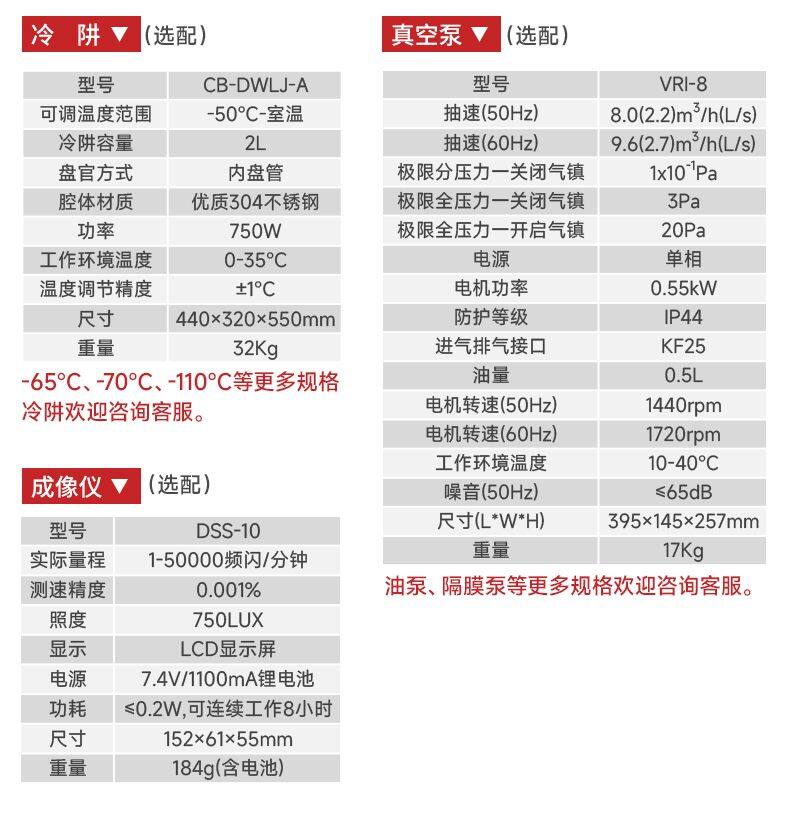

cold trap
Model: CB-DWLJ-A
Adjustable temperature range: -50℃ to room temperature
Cold trap capacity: 2L
Coil type: Internal coil
Cavity material: High-quality 304 stainless steel
Power: 750W
Working environment temperature: 0-35°C
Temperature regulation accuracy: ±1°C
Size: 440×320×550mm
Weight: 32Kg
vacuum pump
Model: VRI-8
Pumping speed (50Hz) 8.0(2.2)m3/h(L/s)
Pumping speed (60Hz) 9.6(2.7)m3/h(L/s)
Ultimate partial pressure - with gas ballast off: 1x10-1 Pa
Ultimate full pressure with gas ballast off: 3Pa
Ultimate full pressure with gas ballast enabled: 20Pa
Power supply: Single-phase
Motor power: 0.55 kW
Protection level: IP44
Intake and exhaust connector KF25
Fuel volume: 0.5L
Motor speed (50Hz) 1440rpm
Motor speed (60Hz) 1720rpm
Working environment temperature: 10-40℃
Noise (50Hz) ≤ 65dB
Dimensions (L*W*H): 395×145×257mm
Weight: 17Kg
Imaging device
Model: DSS-10
Actual range: 1-50,000 flashes/minute
Speed measurement accuracy: 0.001%
Illumination: 750LUX
Display: LCD display screen
Power Supply: 7.4V/1100mA lithium battery
Power consumption: ≤0.2W, capable of continuous operation for 8 hours
Size: 152×61×55mm
Weight: 184g (including battery)
