Application:
Carbonization process for carbon materials, synthetic graphite film (Polyimide graphite flake and abbreviated PI film), heat conductive materials, carbon fiber rope, carbon block, carbon fiber, carbon paper/cloth, Graphene, sintering of advanced ceramics and other materials which can be sintered in graphite hot zone (carbon-based environment).
Product Introduction

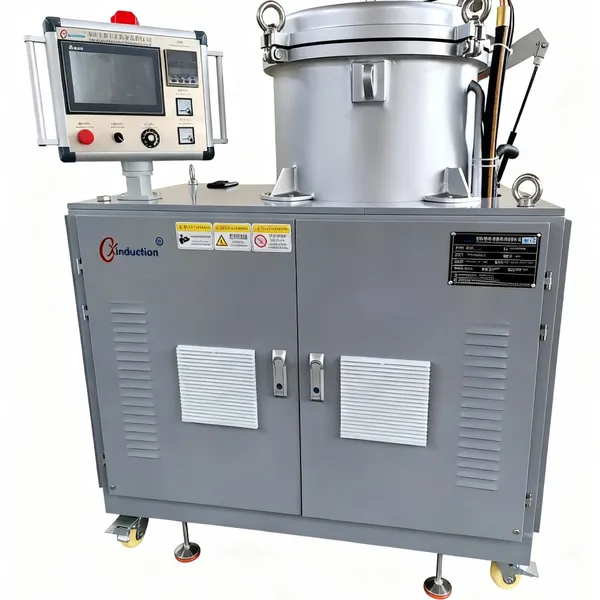

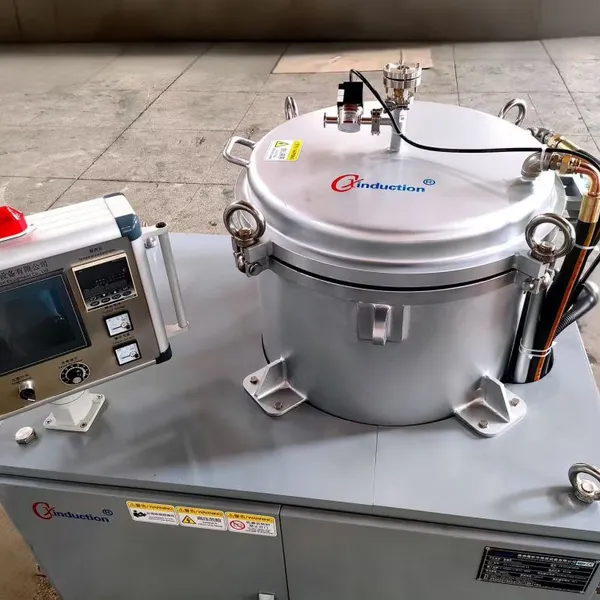

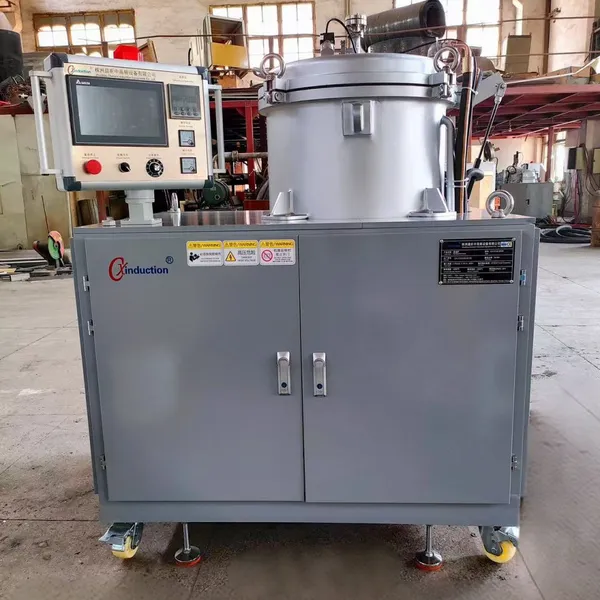

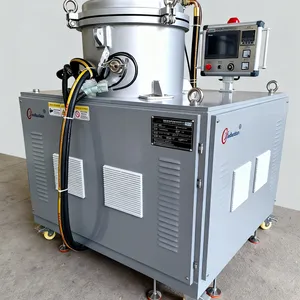

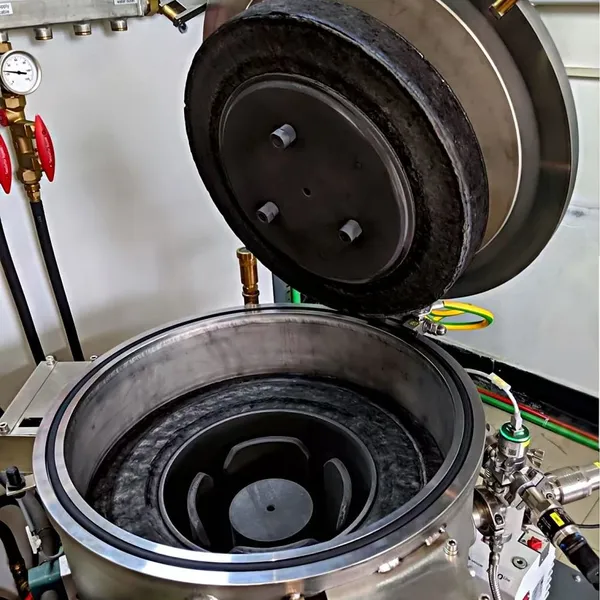

CX-CF-Lab is vertical top loading graphite resistance heating furnace. Compact and integrated design, with max temp reach up to 2200C, support both vacuum and inert gas atmosphere, this model can be used for advanced carbon materials research and development.
Application:
Carbonization process for carbon materials, synthetic graphite film (Polyimide graphite flake and abbreviated PI film), heat conductive materials, carbon fiber rope, carbon block, carbon fiber, carbon paper/cloth, Graphene, sintering of advanced ceramics and other materials which can be sintered in graphite hot zone (carbon-based environment).
Features:
Support Auto and MAN operation.
Internal closed loop water cooling system
compact size and ideal for limited spaces in laboratories.
Thermocouple or pyrometer
Shimadentemperature controller which can store 20 programs with total 400 segments.
User friendly design easy for intallation, operation and maintenance.
Stable hydraulic lifting system for the chamber lid.
Support both vacuum and inert atmosphere
Over-temperature, over-pressure, gas& water lack and power failure alarms and automatic mechanical interlock for over-pressure protection.
Optionals:
Chiller
Graphite container
Fine Vacuum
Filter
Parameters:
Model |
CX-CF20/30VR |
Max design Temperature |
2200C |
Heating Method |
Graphite Resistor |
Working Temp |
2100C |
Work zone size(mm) |
Φ200×H300 |
Max. Loading Capacity |
10L |
Temperature Uniformity |
±10C (measure at 1600C) |
Max. Heating Rate (CEDRT)* |
15C/min |
Rated Power |
40 KW |
Working Atmosphere |
Vacuum / Inert Gas |
Supply Voltage |
3P, can be customized |
Cooling Water Pressure |
1.5～2.5 bar |
Cooling Water flow |
10m3/h |
