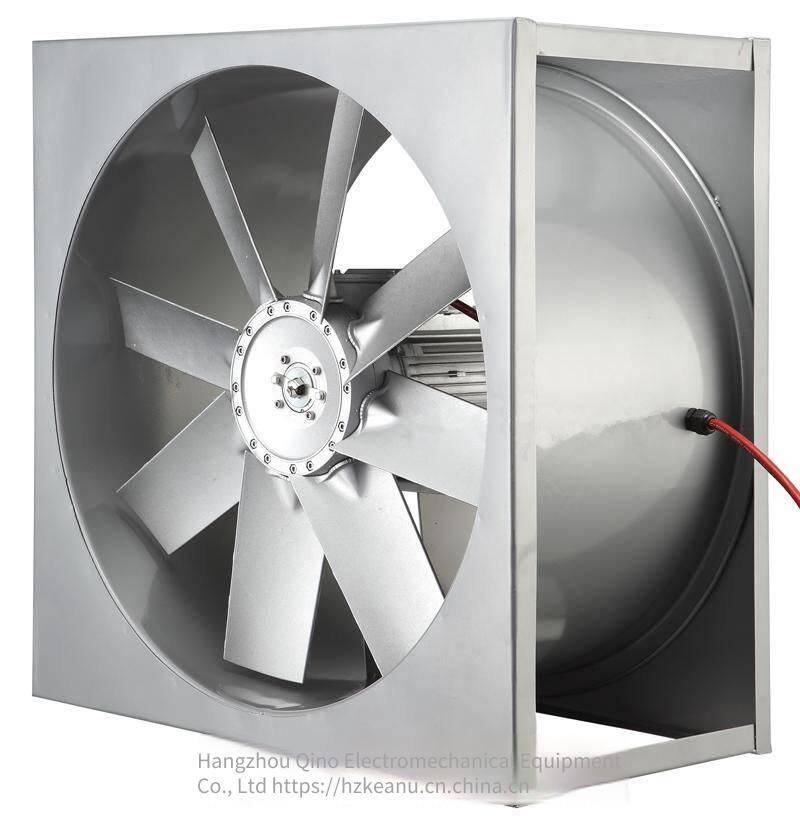

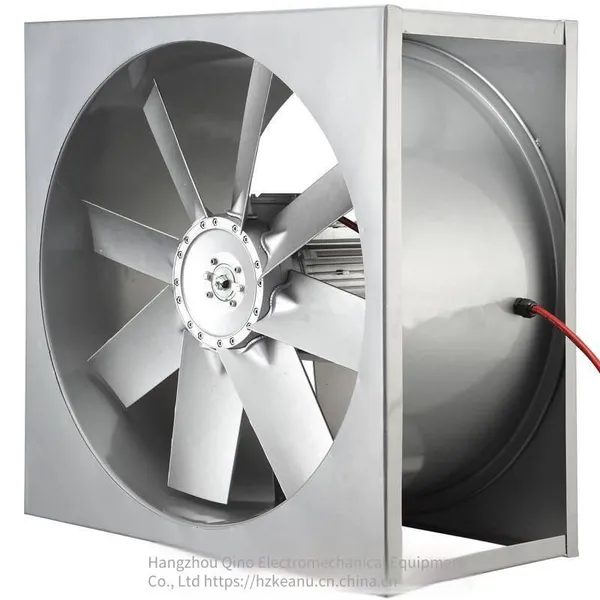

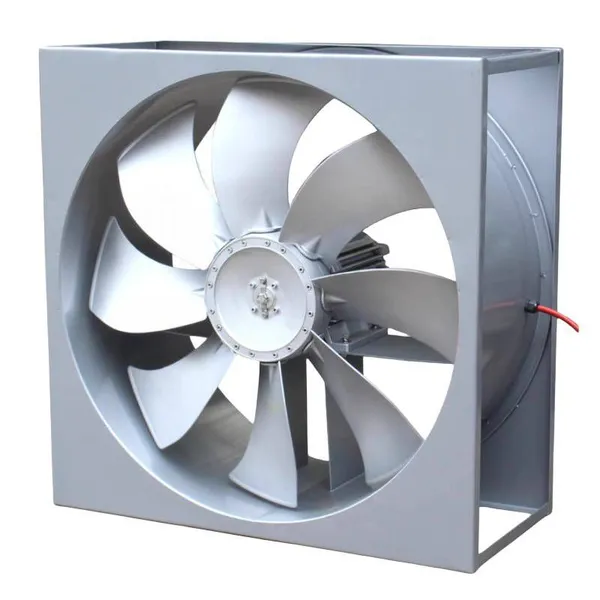

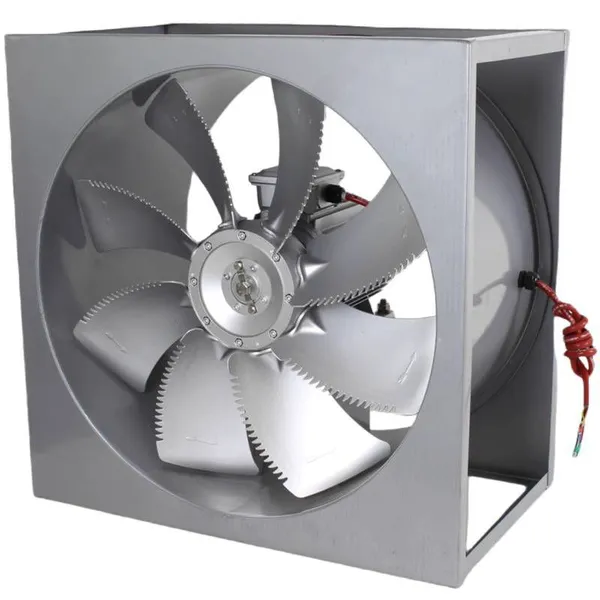

Help CenterSupply Sfwk-10 Type 8-blade Square High-temperature Baking Fan, High-temperature-resistant Fan for Wood Drying With a Diameter of 1000mm
Related Products
-
Supply Sfwk-9 Type 8-blade Square High-temperature Baking Fan, Square Drying Kiln High-temperature-resistant Fan With a Diameter of 900mmUS$ 76.92 - 78.46MOQ: 10 Units -
Supply Sfwk-7 Model 8-blade Square Baking High-temperature Fan, High-temperature and High-humidity Resistant Fan, 700mmUS$ 76.92 - 78.46MOQ: 10 Units
-
Supply Sfwk-6 Type 8-blade Square High-temperature Fan, High-temperature and High-humidity-resistant Drying Fan, 600mmUS$ 76.92 - 78.46MOQ: 10 Units
-
Supply Sfwk-8 Type 8-blade Square High-temperature Baking Fan, High-temperature and High-humidity Resistant Fan for Drying Kiln, Diameter 800mmUS$ 76.92 - 78.46MOQ: 10 Units
-
Professional High-temperature Resistant Baking Fans, Aluminum Alloy Food Drying Fans, High-temperature Resistant Wood Drying FansUS$ 38.46 - 46.15MOQ: 10 Units

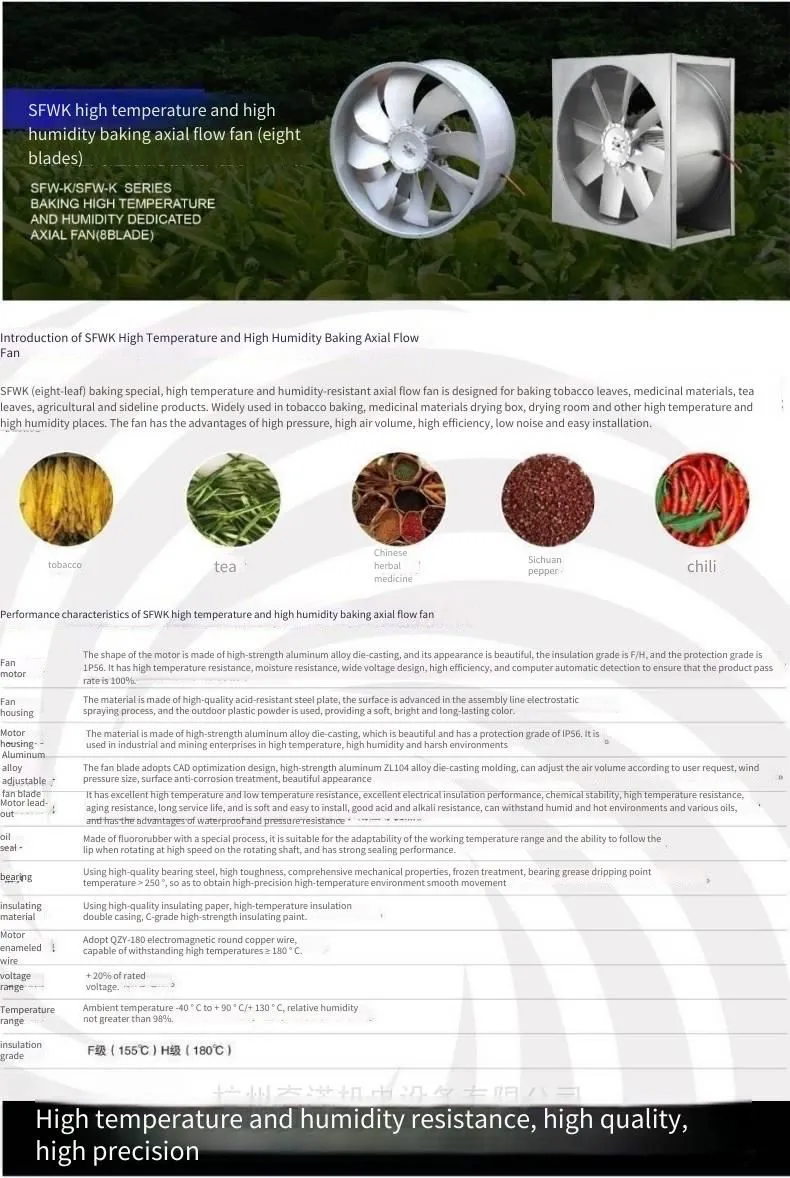

The SF high-temperature and high-humidity resistant, low-noise axial flow fan for baking is a fan designed for tobacco leaf baking. The motor uses F-class and H-class insulation, featuring high temperature resistance, high humidity resistance, high efficiency, large air volume, low noise, energy saving, etc. The fan blades are optimized by CAD design, with four arc-shaped aluminum alloy die-cast aluminum blades.
The angle of the fan blades can be adjusted according to user needs to control the air volume. It is widely used in high-temperature and high-humidity places such as tobacco drying and wood drying kilns.

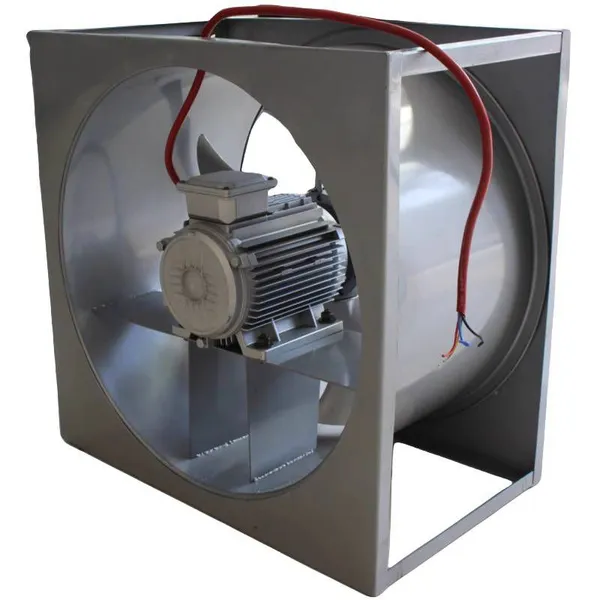

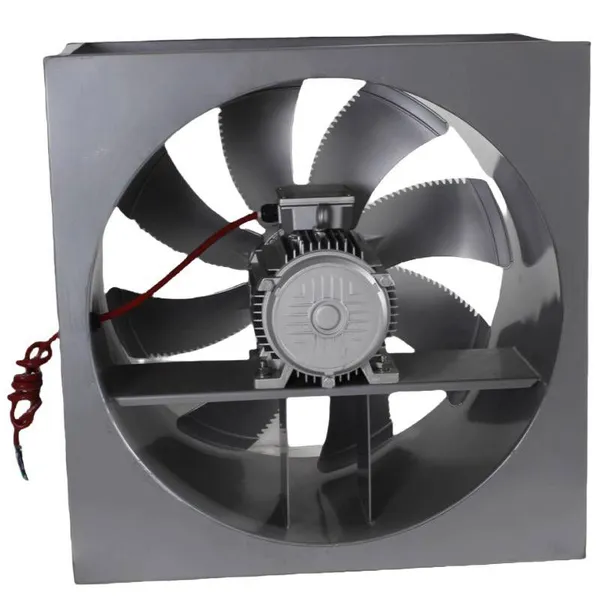

Fan motor
The motor shell is die-cast with high-strength aluminum alloy, featuring beautiful appearance. Its insulation class is F/H, and the protection class is IP56. It has high temperature resistance, moisture resistance, wide voltage design, high efficiency, and is fully automatically detected by computer to ensure a 100% product qualification rate.

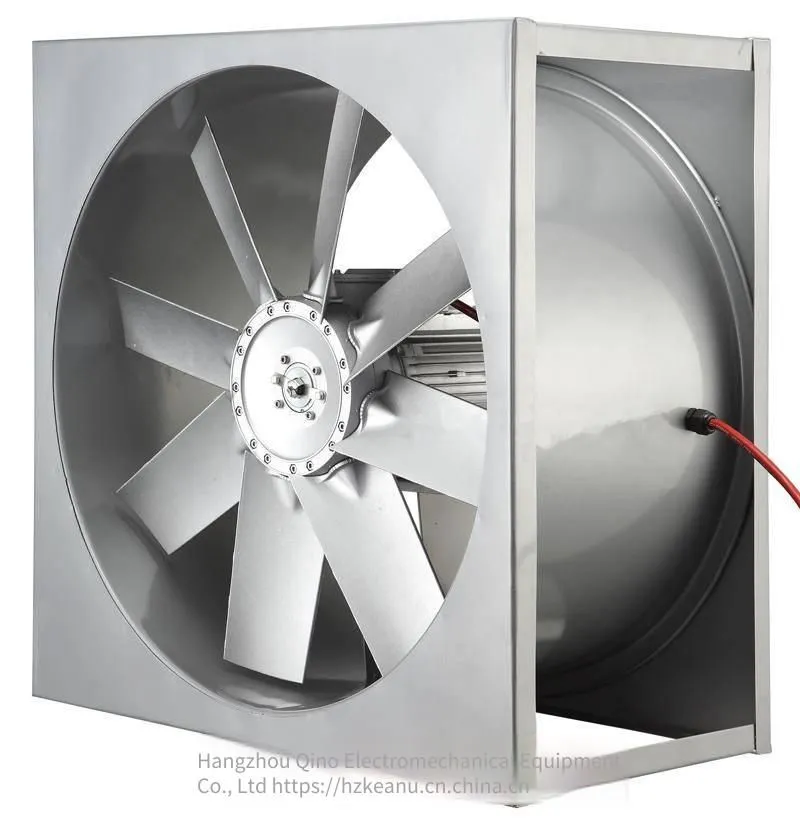

Fan housing
The material is selected from high-quality acid-resistant steel plates. The surface is processed by an advanced assembly line electrostatic powder spraying process, using outdoor powder coating, with soft, bright and long-lasting colors.
Motor housing
The material is made of high-strength aluminum alloy by die-casting, with beautiful appearance and a protection class of IP56. It is suitable for use in industrial and mining enterprises in high-temperature and high-humidity harsh environments.
Adjustable aluminum alloy fan blades
The fan blades are optimized by CAD design and die-cast with high-strength aluminum ZL104 alloy. The air volume and air pressure can be adjusted by changing the angle according to user needs. The surface is treated with anti-corrosion treatment, and the appearance is beautiful.
Motor lead wires
It has excellent high and low temperature resistance, excellent electrical insulation performance, chemical stability, high temperature resistance, aging resistance, long service life, is soft and easy to install, has good acid and alkali resistance, can withstand humid and hot environments and various oils, and has the advantages of water resistance and pressure resistance.
Oil seal
It is made of fluororubber material by a special process, suitable for the adaptability of the working temperature range and the follow-up ability of the lip edge when the rotating shaft rotates at high speed, with strong sealing performance.
Bearing
High-quality bearing steel is used, with high toughness and comprehensive mechanical properties. After cryogenic treatment, the dropping point temperature of the bearing grease is ≥250°, so as to obtain stable movement in a high-precision and high-temperature environment.
Insulating materials
High-quality insulating paper, high-temperature-resistant insulating double sleeves, and Class C high-strength insulating paint are used.

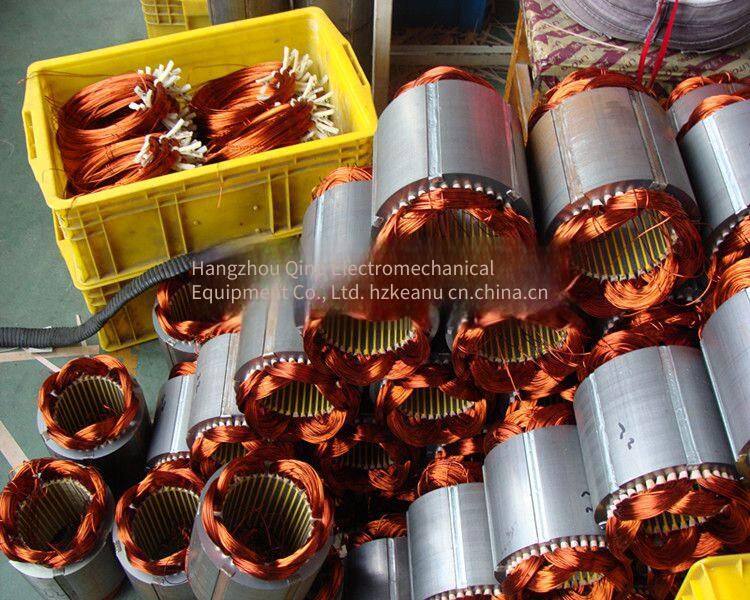

Motor enameled wire
QZY-180 electromagnetic round copper wire is used, with a high-temperature resistance of ≥180℃.

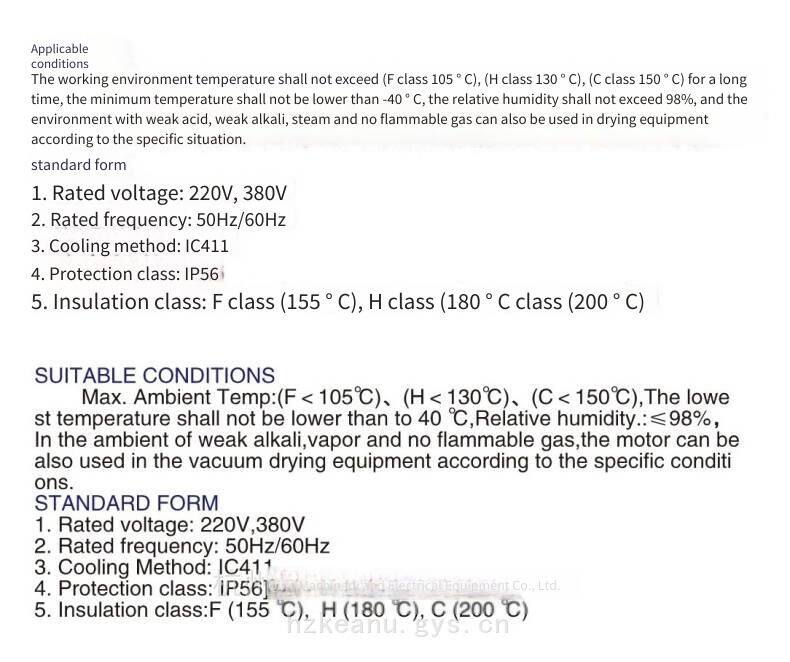

Voltage range
±20% of the rated voltage.
Temperature range
The ambient temperature ranges from -40℃ to +90℃/+130℃, and the relative humidity is not more than 98%.
Insulation class
Class F (155℃), Class H (180℃)
