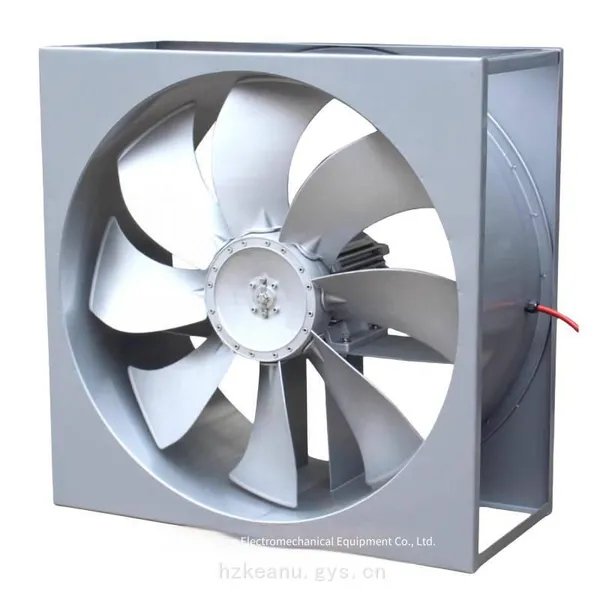

Help CenterSupply Sfwk-6 Type 8-blade Square High-temperature Fan, High-temperature and High-humidity-resistant Drying Fan, 600mm
Related Products
-
Supply Sfwk-8 Type 8-blade Square High-temperature Baking Fan, High-temperature and High-humidity Resistant Fan for Drying Kiln, Diameter 800mmUS$ 76.92 - 78.46MOQ: 10 Units -
Professional High-temperature Resistant Baking Fans, Aluminum Alloy Food Drying Fans, High-temperature Resistant Wood Drying FansUS$ 38.46 - 46.15MOQ: 10 Units
-
Professional High-temperature Resistant Thermal Cycle Fan, Aluminum Alloy Drying Fan, High-temperature Resistant Paper Tube Drying FanUS$ 38.46 - 46.15MOQ: 10 Units
-
High-temperature Resistant Thermal Cycle Fan, Aluminum Alloy Forward and Reverse Drying Fan, High-temperature Resistant Paper Tube Baking Room FanUS$ 38.46 - 46.15MOQ: 10 Units
-
Supply of Sft-500 Mobile High-volume Suction Fans, Hand-held Axial-flow Smoke Exhaust Fans for Air SupplyUS$ 98.46 - 101.54MOQ: 1 Unit

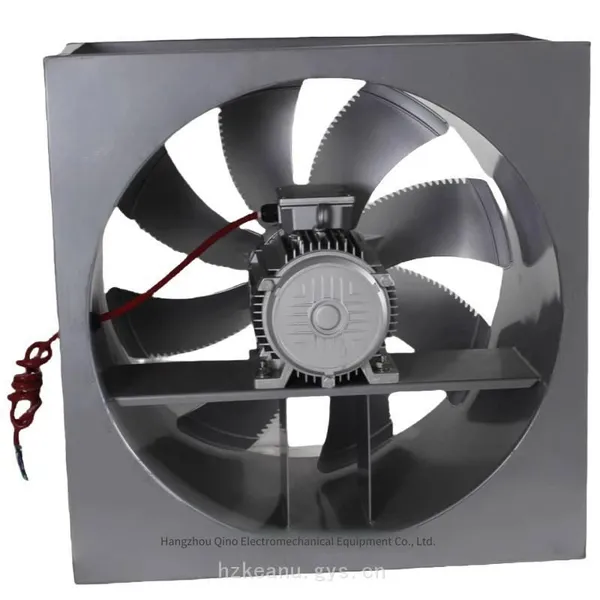

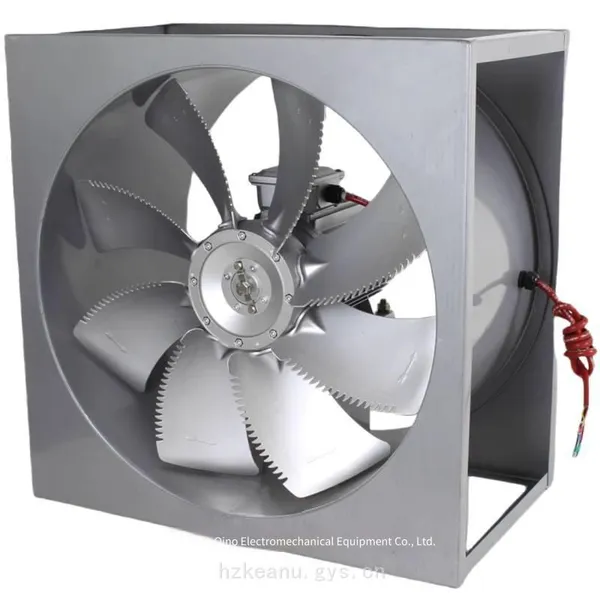

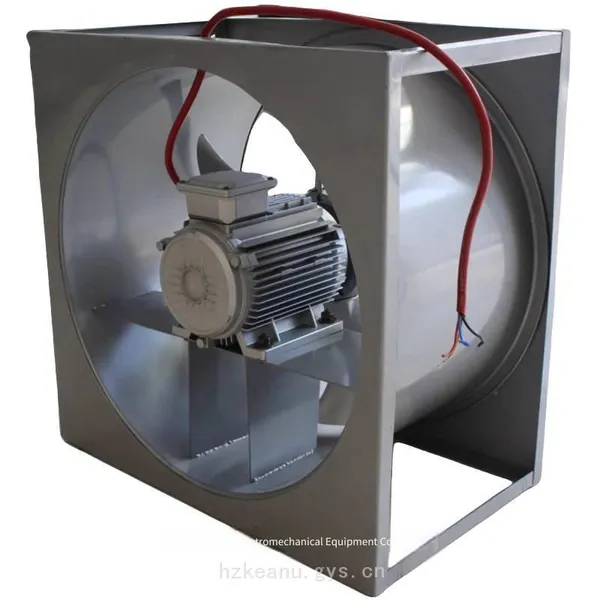

The SF high-temperature and high-humidity resistant and low-noise axial flow fan for baking is a fan designed for tobacco leaf baking. The motor uses class F and class H insulation, featuring high temperature resistance, high humidity resistance, high efficiency, large air volume, low noise, energy saving, etc. The fan blades are optimized by CAD design, with four arc-shaped aluminum alloy die-cast blades.
The angle of the fan blades can be adjusted according to the user's needs to control the air volume. It is widely used in high-temperature and high-humidity places such as tobacco drying and wood drying kilns.

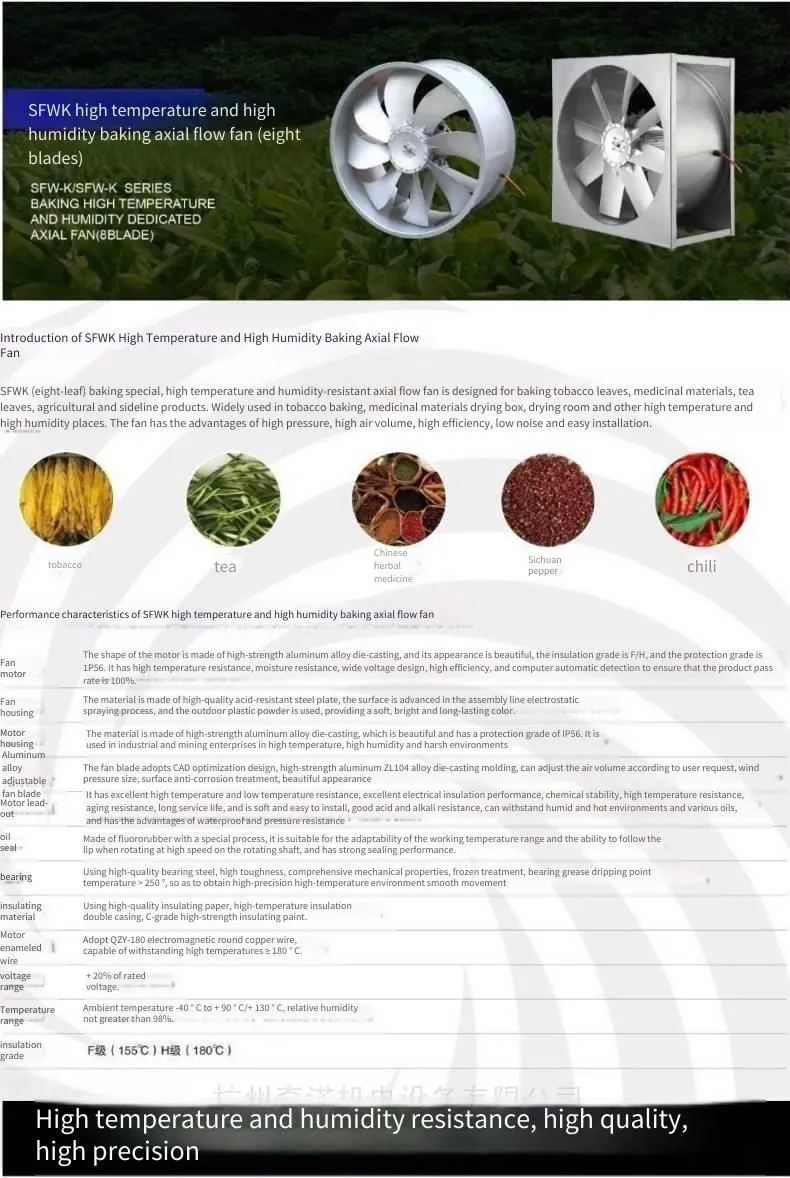

Fan motor
The motor body is die-cast from high-strength aluminum alloy, with an aesthetic appearance. The insulation class is F/H, and the protection class is IP56. It features high temperature resistance, moisture resistance, wide voltage design, high efficiency, and is fully automatically detected by computer to ensure a 100% product qualification rate.
Fan housing
The material is made of high-quality acid-resistant steel plate. The surface is treated with an advanced assembly line electrostatic powder coating process using outdoor powder, with soft, bright, and long-lasting colors.
Motor housing
The material is made of high-strength aluminum alloy by die-casting, with an aesthetic appearance. The protection class is IP56, suitable for industrial and mining enterprises in high-temperature and high-humidity harsh environments.
Adjustable aluminum alloy fan blades
The fan blades are optimized by CAD design and die-cast from high-strength ZL104 aluminum alloy. The angle can be adjusted according to the user's needs to control the air volume and air pressure. The surface is treated with anti-corrosion treatment, with an aesthetic appearance.
Motor lead wire
It has excellent high and low temperature resistance, excellent electrical insulation performance, chemical stability, high temperature resistance, aging resistance, long service life, is soft and easy to install, has good acid and alkali resistance, can withstand humid and hot environments and various greases, and has the advantages of waterproof and pressure resistance.
Oil seal
It is made of fluororubber material by a special process, suitable for the adaptability of the working temperature range and the follow-up ability of the lip edge when the rotating shaft rotates at high speed, with strong sealing performance.
Bearing
It is made of high-quality bearing steel, with high toughness and comprehensive mechanical properties. After cryogenic treatment, the dropping point temperature of the bearing grease is ≥250°. Thus, smooth movement in a high-precision and high-temperature environment can be achieved.
Insulating materials
Made of high-quality insulating paper, high-temperature-resistant insulating double bushings, and Class C high-strength insulating paint.

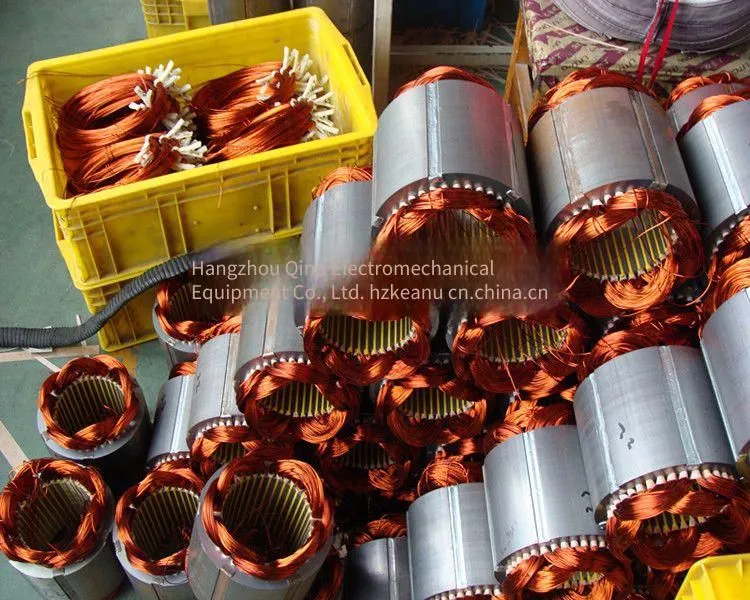

Motor enameled wire
Adopts QZY-180 electromagnetic round copper wire, with a high temperature resistance of ≥180℃.
Voltage range
±20% of the rated voltage.
Temperature range
Ambient temperature ranges from -40℃ to +90℃/+130℃, with a relative humidity of no more than 98%.
Insulation class
Class F (155℃), Class H (180℃)
