Home > Instruments & Meters > Test Instrument > Test Machine > For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty

Hst Group Co.,ltd. Gold Verified Supplier

1Yr

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty thumbnail-1

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty thumbnail-2

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty thumbnail-3

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty thumbnail-4

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty thumbnail-5

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty thumbnail-6

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty photo-1

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty photo-2

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty photo-3

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty photo-4

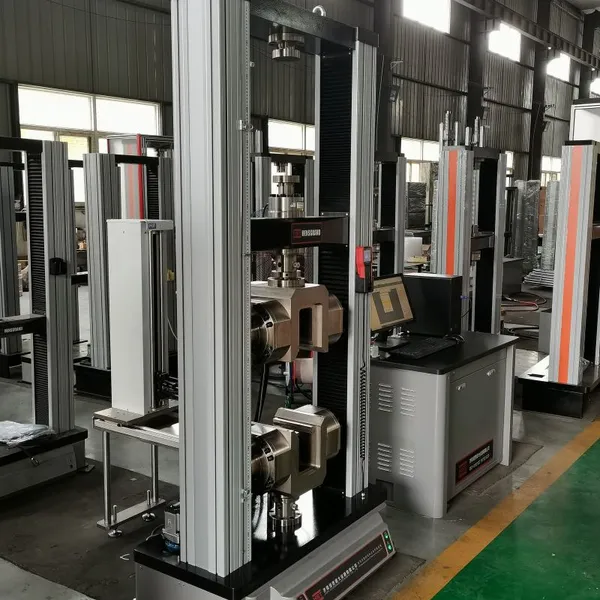

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty photo-5

For UTM Computerized Electronic Universal Testing Machine With 1 Year Warranty photo-6

US$ 8599 - 17999 MOQ: 1 Unit

Key Specifications

Get Latest Price

Type:

Testing Machine, Electronic Universal Testing Machine

brand name:

HST or Customized

place of origin:

China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

brand name HST or Customized

place of origin China

Application Metal/Plastic/Rubber or others

customized support Yes

power 50Hz/60Hz(can be customized)

Protection Class IP55

Voltage 220 V~240 V

warranty 1 Year

Testing force 0.1/0.2/0.5/1/2/5/10/20/50/100/200/300/500/600/1000/etc. Kn

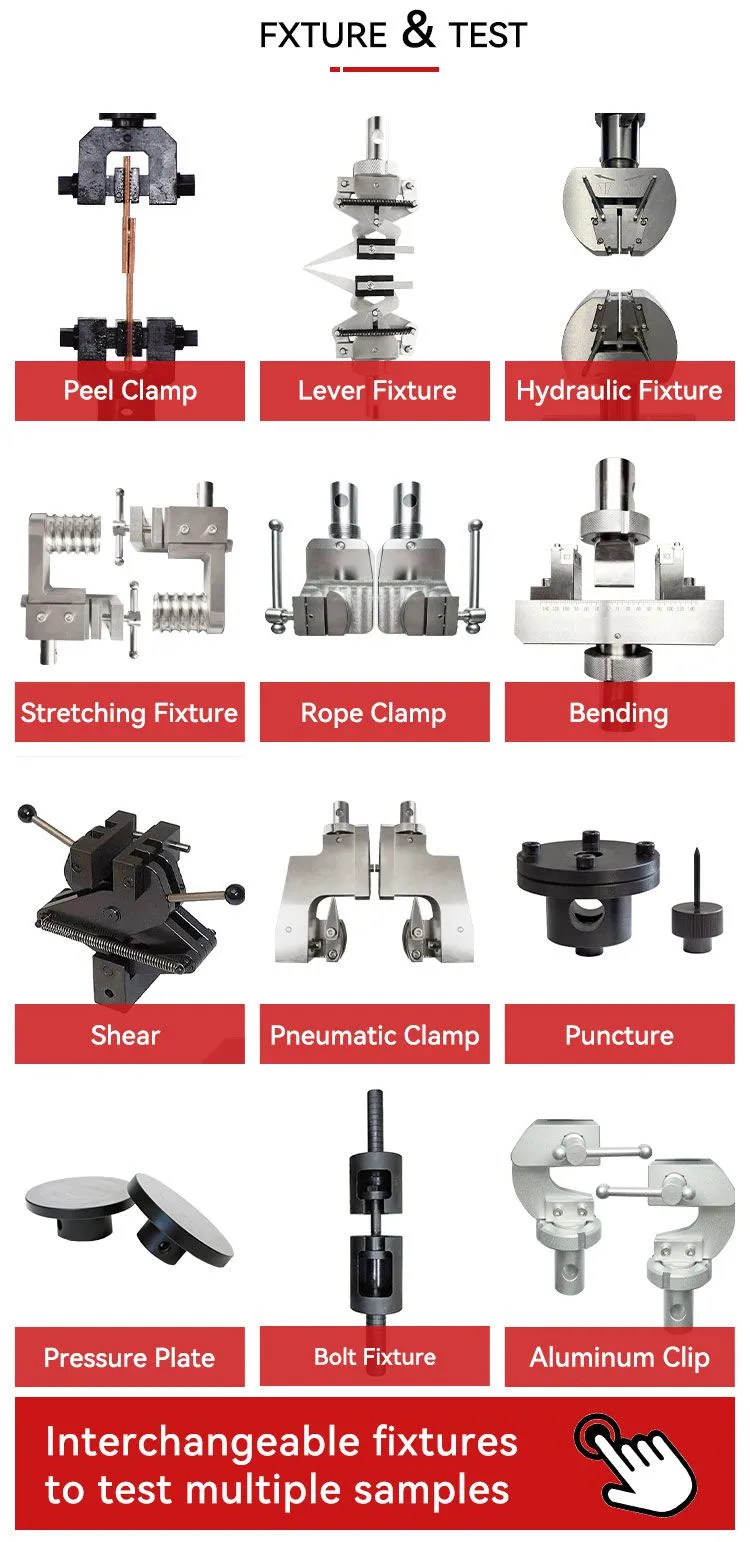

Fixture clamp method Manual clamp/Auto clamp As per customer requirements

Load range 0.2%~100% of full scale

Resolution of displacement(um) 0.04

Test speed accuracy Within +/- 0.5% of the value/

Load Range 0.05-500mm/min

Tensile Space (mm) 800/1000/650/770/800 Depending on diffrent model

Crosshead Travel Space (mm) 800/1000/1100/900 Depending on diffrent model

Gross Weight (KG) 110/150/420/680/1800/4000 Depending on diffrent model

MODEL	WDW-01E	WDW-10E	WDW-20E	WDW-50E	WDW-100E	WDW-1000E
Load Capacity (kN)	0.1	10	20	50	100	1000
Calibration Standard	Class 0.5 to ISO7500 - 1, ASTM E4
Load Accuracy	Class 0.5
Load Range	0.2% ~ 100%F.S
Resolution Of Displacement (μm)	0.04
Test Speed (mm/min)	0.001-500/0.001-1000/0.05-500 Depending on diffrent model
Test Speed Accuracy	Within +/- 0.5% of the value
Tensile Space (mm)	800/1000 (heighten model)			650/770/800Depending on diffrent model
Crosshead Travel Space (mm)	800/1000 (heighten model)			1100/900 Depending on diffrent model
Gross Weight (KG)	110/150 (Packing weight)			420/680/1800/4000 Depending on diffrent model
Dimension (mm)	5204001340/6305001480 (Packing size			8505501824 etc./The larger the model, the greater its size.
Power Supply	AC220V+-10%,50Hz/60Hz/AC380V+-10%,50Hz/60Hz(can be customized)
TIP:Extra wide/height frames is avaiable. The power supply system/tensile space/test width and speed are fully customizable. Didn't find the model you need? For more information on other models, feel free to contact us.

Q1: What is your warranty?
A: The testing machine is guaranteed for 16 months by HST,we can help youto repair your problem controller freely,even it's not from our factory. Free Non-consumable components will be provided if any performance failure occurs within 16 months caused by non-human damage.
Q2: How to vedio provided?
A: Yes. if required, our engineers will record a specialize how-to video for you.
Q3: Are your company a trading one or a factory?

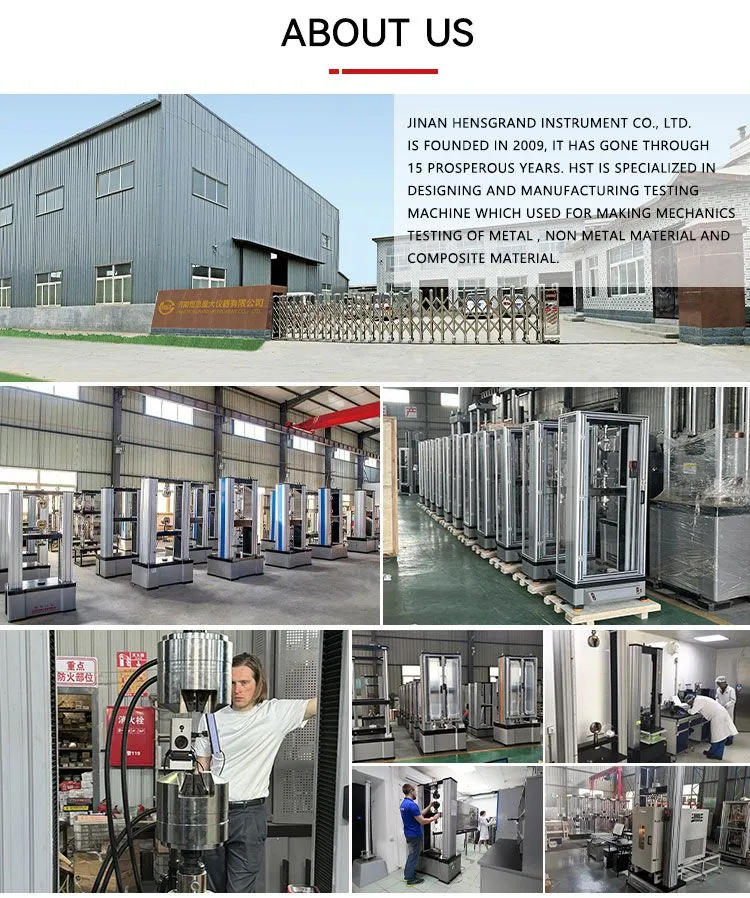

A: Yes, we are a manufactured factory&trade company (integration).15+ years focusing on test instruments field. 6 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM service.
Q4: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipmentwithin 3 days.Please be aware that our production lead times depend on specificitems and item quantities.
Q5: What about the after-sales service and product’s quality?
A:Each instruments must be carried out 100% quality examination and test whenshipping and delivery goods. Engineers would be go abroad to training, repair and others help you need.
Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the stanard exporting wooden case, which not only has good shock absorption, impact resistance, heat sso has the advantag- es of nontoxic, odorless, moisture corrosion, good transparency etc.
