Home > Instruments & Meters > Test Instrument > Test Machine > High Quality HST CS-2002D Desktop High Frequency Infrared Carbon and Sulfur Analyzer

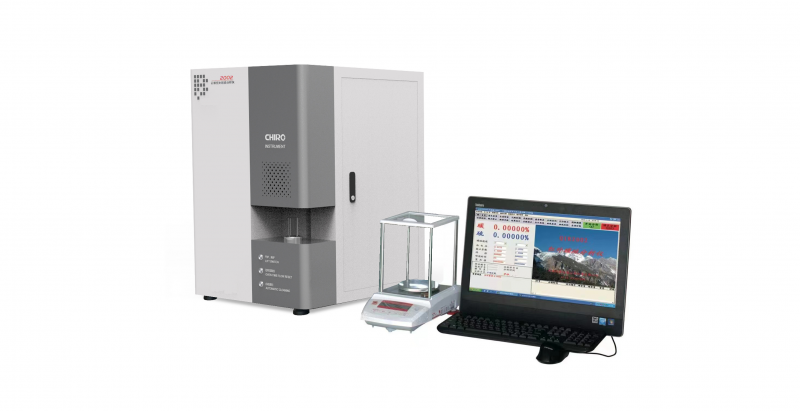

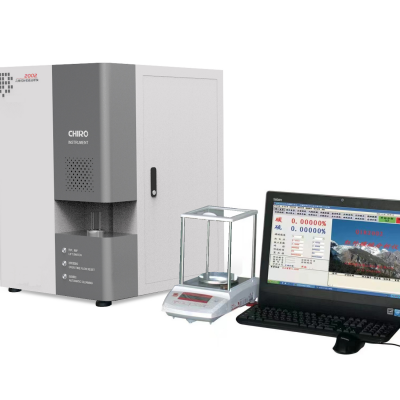

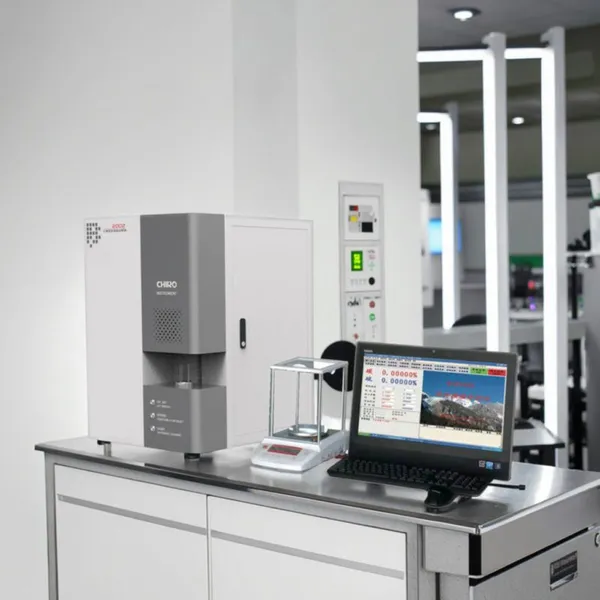

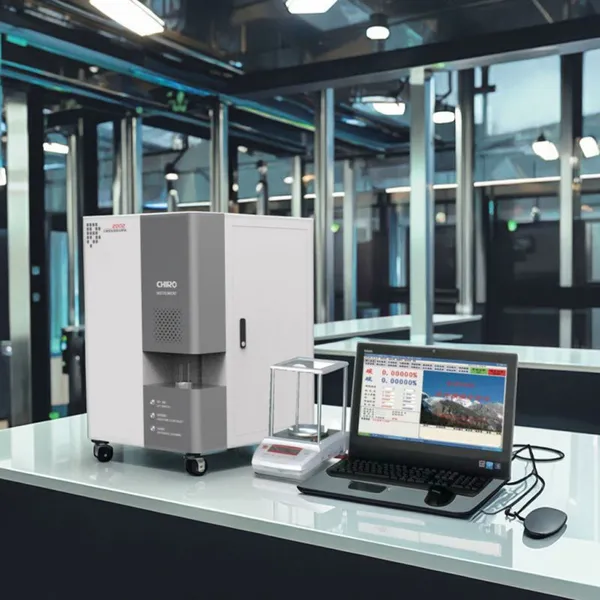

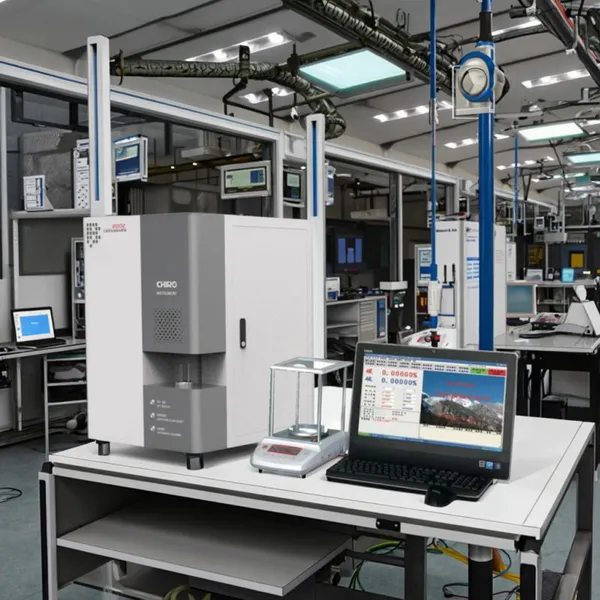

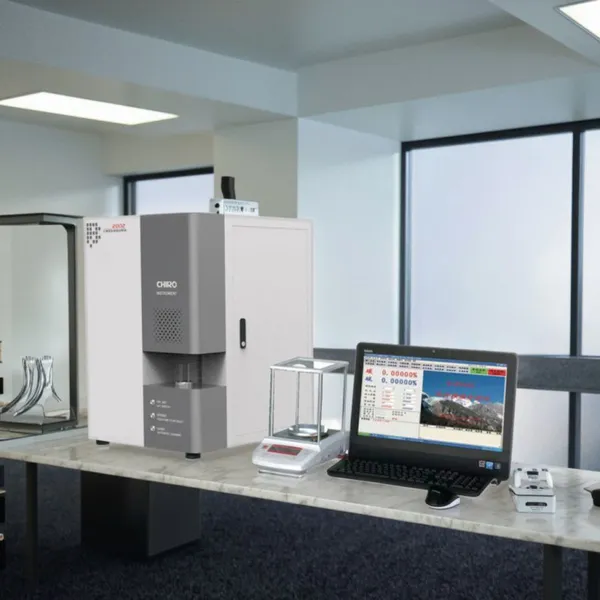

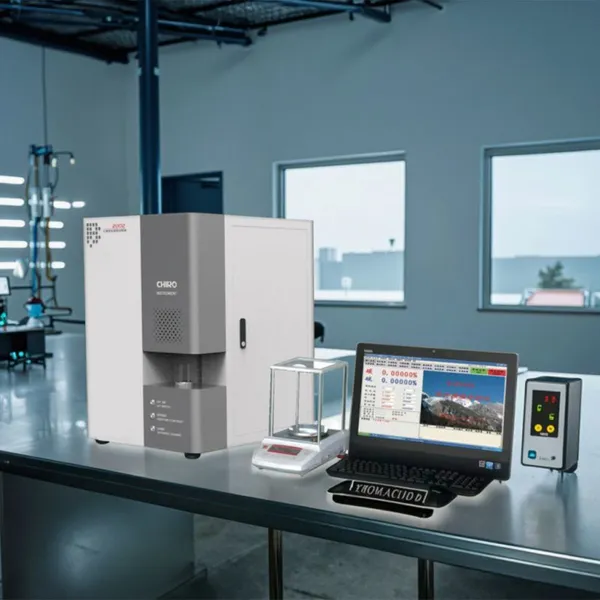

High Quality HST CS-2002D Desktop High Frequency Infrared Carbon and Sulfur Analyzer
US$ 10500 - 12260
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%, Meet JJG 395-97
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST CS8820S Carbon Sulfur Analyzer for Analyzing Sulfur and Carbon ElementsUS$ 11600 - 13800MOQ: 1 Set -
High Quality HST-MH20 Plastic Friction and Wear Testing MachineUS$ 8397.48 - 13995.80MOQ: 1 Set
-
HST Optical Emission Spectrometer for Ferrous and Non-Ferrous Metals Alloy AnalysisUS$ 132260.31 - 139958.00MOQ: 1 Set
-
HST All-CCD Versions Optical Emission Spectrometer With High Speed and Accuracy RamanUS$ 138558.42 - 139958.00MOQ: 1 Set
-
HST 9800 Optical Emission Spectrometer for Ferrous and Non-Ferrous Metals Alloy AnalysisUS$ 181875.43 - 209867.03MOQ: 1 Set
Accuracy
≤±1%, Meet JJG 395-97
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
3KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
High Frequency Infrared Carbon and Sulfur Analyzer
Model
HST CS-2002D
Analysis objects
Steel and other materials
Analysis range
C: 0.00001 - 99.99999% S: 0.00001 - 99.99999%
Analysis time
25~60s (normally around 35s)
Balance precision
0.001g
Temperature control range
10~30
Dimension
Analyzer mainframe: 310*470*620mm
Power supply
AC 220V 5% 50Hz
HST CS-2002D
High Frequency Infrared Carbon and Sulfur Analyzer
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
2.Specifications
HST CS-2002D High-Frequency Infrared Carbon & Sulfur Analyzer is used to measure mass fraction of carbon andsulfur in steel, iron, alloy, casting core sand, nonferrous metals, cement, ore, coke, catalyst, magnetic materials, ceramics, inorganic matter,graphite, refractory materials, battery materials and other materials. And mainly used innew energy, metallurgy, mechanical, mine, inspection, nuclear industry, coal, automobile, shipping, aviation, food,aerospace, building materials, university, geology, petrochemical and so on.
2.Specifications
Item | HST CS-2002D |
Power supply | AC220V±5%, frequency 50HZ±2% |
Analysis objects | mass fraction of carbon andsulfur in steel, iron, alloy, casting core sand, nonferrous metals, cement, ore, coke, catalyst, magnetic materials, ceramics, inorganic matter, graphite, refractory materials, battery materials and other materials. And mainly used innew energy, metallurgy, mechanical, mine, inspection, nuclear industry, coal, automobile, shipping, aviation, food,aerospace, building materials, university, geology, petrochemical and so on. |
Measurement Range | Carbon ω(C) 0.00001%~99.99999 % |
Sulfur ω (S)0.00001%~99.99999% | |
Analysis Error | Carbon meets ISO9556 standard, Sulfur meets ISO4935 standard, Meet the JJG395-97 standardatthesame time |
Analysis time | Adjustable within 25-60 s (Normally around 35s) |
working environment | Room temperature10C~30C. Relative humidity75% |
Sensitivity | 0.1ppm |
Oscillating frequency | 20MHz |
Combustion power | 2.5KVA—7.5KVA(auto-adjust). |
Main design features :
Infrared detect system
The core component of infrared detection pool adopts precious metal miniature infrared light source
whichishigh-efficient and long service life. The modulation system adopts high-precision stepper motor control
bythemicrocontroller. It is realized that long-term stability of the modulation frequency and infrared pyroelectric
solidlightconesensor, Narrowband filters, these instruments make the host in high detect sensitivity, and it is
effectivewaytodetect carbon and sulfur content (ppm). it simplifies the hardware design, adding the whole host
reliableandanti-interference ability.
whichishigh-efficient and long service life. The modulation system adopts high-precision stepper motor control
bythemicrocontroller. It is realized that long-term stability of the modulation frequency and infrared pyroelectric
solidlightconesensor, Narrowband filters, these instruments make the host in high detect sensitivity, and it is
effectivewaytodetect carbon and sulfur content (ppm). it simplifies the hardware design, adding the whole host
reliableandanti-interference ability.
1. The circuit design: the whole machine adopts modular design, highly integrated electronic circuits, it is verystableand reliable, meanwhile, it is adopted multi-level isolation so as to resolve high frequency interferencethoroughly.
2. Sampling: it is adopted 32-bit sampling chip which belongs to America Analog Devices Company soit
hasfastspeed and high precision. The Communication: it is adopted USB new data exchange technology, so it greatly improves the communicationspeed. The Power Supply: it is adopted high quality linear integrated military-grade power module, its output stableandthere is no problem.
hasfastspeed and high precision. The Communication: it is adopted USB new data exchange technology, so it greatly improves the communicationspeed. The Power Supply: it is adopted high quality linear integrated military-grade power module, its output stableandthere is no problem.
3. Light Source: special new type platinum infrared light source, it is efficient and its spectral stability.
4. The Analysis of pool: Gold-plated carbon and sulfur analysis pool and High-precision pyroelectric infrareddetector.
5. The Motor: special aviation motor, its thermal stability well, it has a long service life.
