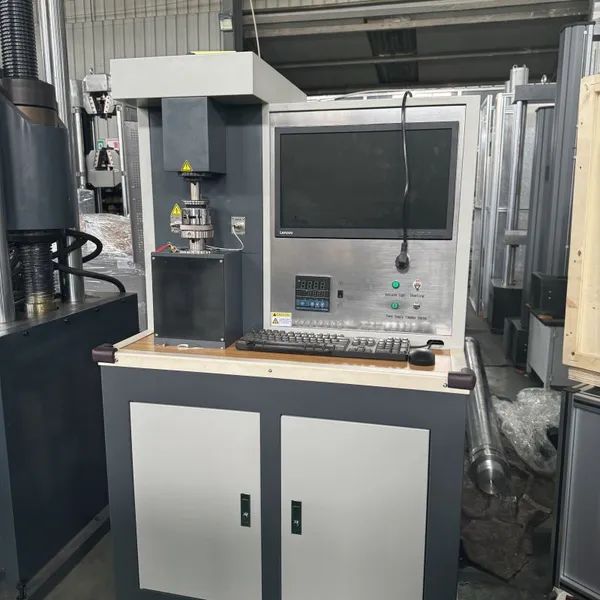

MMW-1 Universal Vertical Computer Friction & Wear Tester Rubber Metal Ceramics Equipment
US$ 8000 - 14000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
class1
brand name:
hensgrand /hst
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MMW-1 Computer Vertical Type Tile Abrasion Testing Machine /wear Resistance TesterUS$ 8000 - 10000MOQ: 1 Set -
HST COF Tester Inclined Surface Static Coefficient of Friction TesterUS$ 7697.69 - 8397.48MOQ: 1 Set
-
HST ASTM Surface Coefficient of Friction TesterUS$ 7697.69 - 8397.48MOQ: 1 Set
-
HST Manufacture Inclined Surface Paper Film Plastic Cof Digital Coefficient of Friction Tester Meter Testing MachineUS$ 7697.69 - 8397.48MOQ: 1 Set
-
HST Coefficient of Friction Tester Plastic Film COF TesterUS$ 7697.69 - 8397.48MOQ: 1 Set
Accuracy
class1
brand name
hensgrand /hst
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
1kw, Electronic
Protection Class
IP55
Voltage
380 V
warranty
1 year
Product name
MMW-1 Vertical Computer control universal friction wear Tester
Axial Test Force Working Range
10N~1000N (Stepless)
est Force Automatic Loading Rate
400 N/min
Max. Testing Friction Moment
2.5 N.m
Friction Force Weighing Transducer
50 N
Friction Force Arm Distance
50 mm
Stepless Speed Variation
5~2000 r/min
Heater Working Range
Room Tempetature ~200℃
Jacketing Heater
68*44, 220V, 300W
Products Description

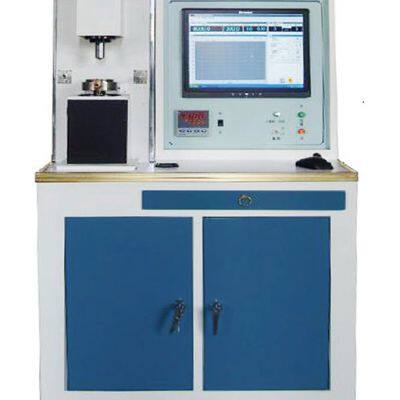

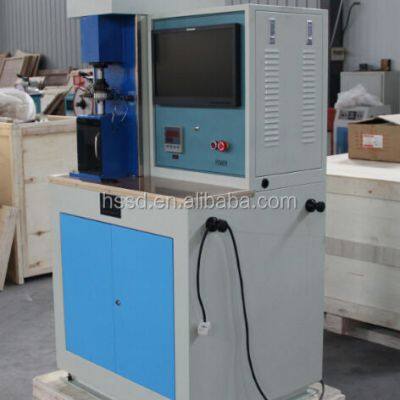

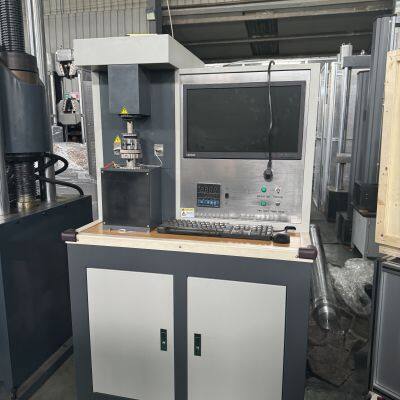

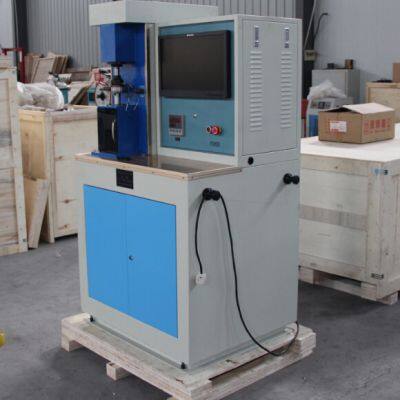

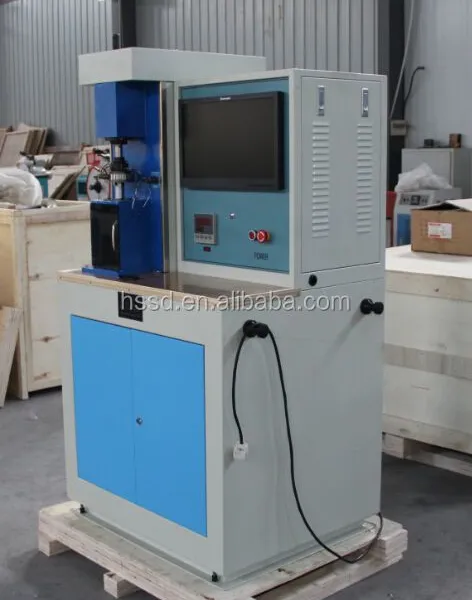

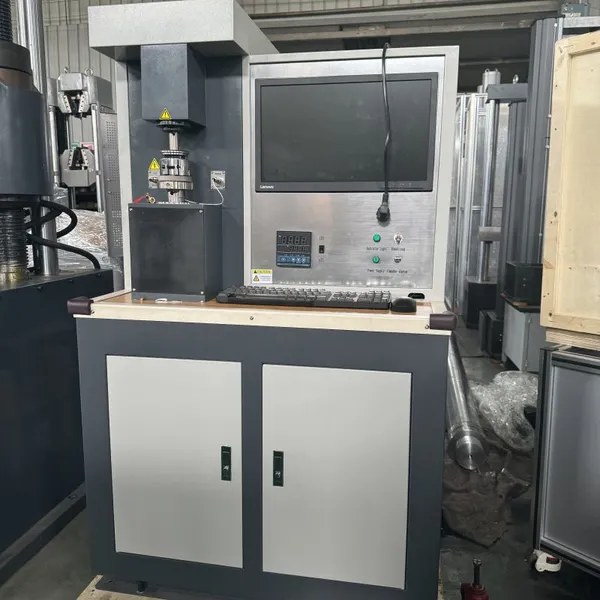

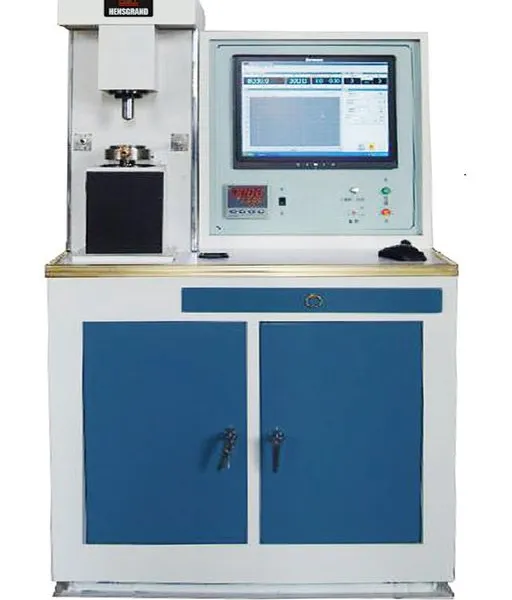

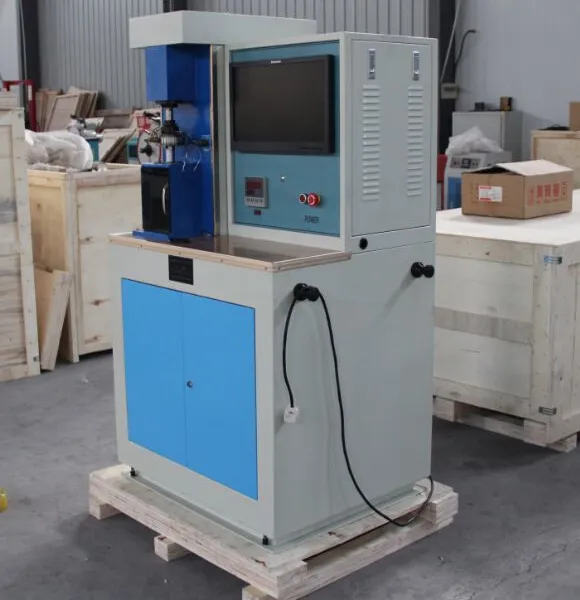

MMW-1 Vertical Computer control universal friction wear Tester
1.Features:
The machine adopts process control principle, and combines industrial control computer with the
configuration software technology and internet technology; Apply incorporate structure design,
integrate embedded industry computer, configuration software, acquisition module and executor as
a whole to control the test process, all test operation can be completed at the main interface of the
Computer. It features flexible configuration control mode, multiple friction couplings, wide speed
adjusting range, simulating high temperature circumstances, high automation and easy to use.
2.Application:
The machine can simulate rolling, sliding and rolling & sliding combined movement under the
certain contact pressure to complete point, line and plane simulating tests.
It can be used to evaluate the friction and wear performance of lubricant, metal, plastics, coating,
rubber, ceramics etc.
It can not only content with the needs of traditional petrochemical industry to research, develop and
inspect the various kinds of intermediate & high grade hydraulic oil, combustion engine oil and gear
oil. Also it can be tested under dry condition, but also the needs of simulating evaluation to new
material development and new technology research.
Technical parameter:
1.Test Force |
||||
NO. |
Item |
Specification |
||
1.1 |
Axial Test Force Working Range |
10N~1000N (Stepless) |
||
1.2 |
Relative Error Of Load Indicating Value |
±1 % |
||
1.3 |
Discriminability Of Test Force Indicated Value |
±1.5 N |
||
1.4 |
Test Force Automatic Loading Rate |
400 N/min |
||
1.5 |
Relative Error Of Test Force Automatic Hold Indicated Value In A Long Time |
±1 % |
||
2.Friction Moment |
||||
2.1 |
Max. Testing Friction Moment |
2.5 N.m |
||
2.2 |
Relative Error Of Friction Moment Indicating Value |
±2 % |
||
2.3 |
Friction Force Weighing Transducer |
50 N |
||
2.4 |
Friction Force Arm Distance |
50 mm |
||
3.Spindle Stepless Speed Variation Range |
||||
3.1 |
Stepless Speed Variation |
5~2000 r/min |
||
3.2 |
Error Of Spindle Speed |
±1 % |
||
4.Test Medium: Oil, Water, Slurry, Abrasive etc. |
||||
5.Heating System |
||||
5.1 |
Heater Working Range |
Room Tempetature ~200℃ (Can Be Customed 260℃) |
||
5.2 |
Jacketing Heater |
Φ68*44, 220V, 300W |
||
5.3 |
Temperature Measuring Control Accuracy |
±(0.3+0.005t)℃ (“t” Is Absolute Value Of Test Temperature) |
||
6.Conicity Of Spindle Of Testing Machine: (1:7) |
||||
7.Max. Distance Between Spindle And Lower Disc: ＞75mm |
||||
