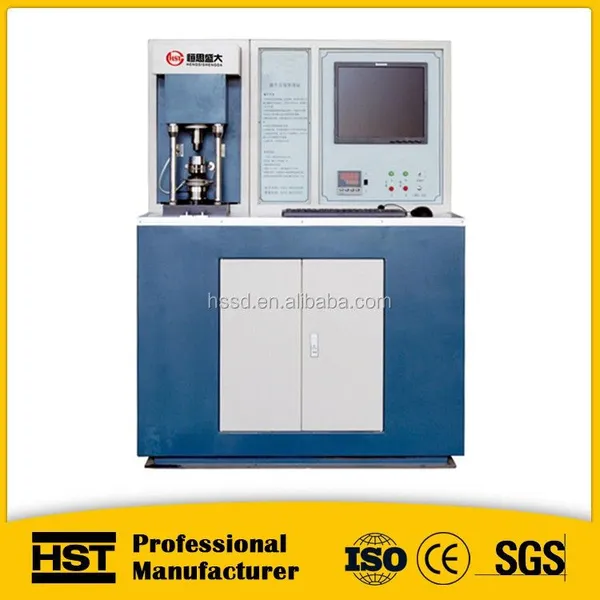

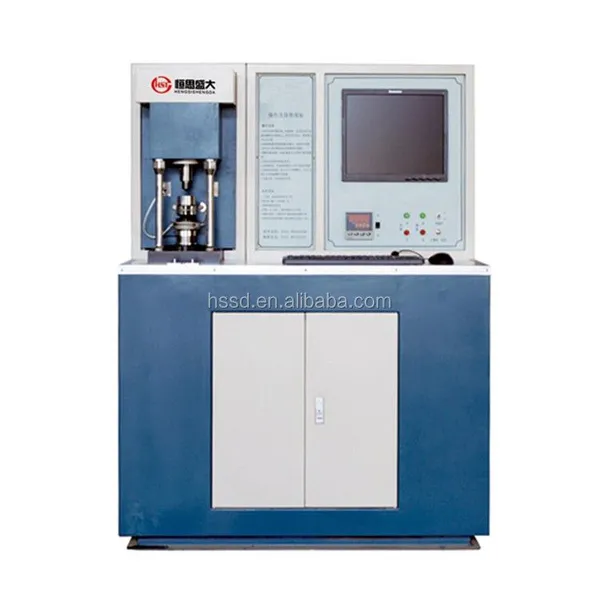

HST-MRS10D Computer Control Servo Four Ball Friction Testing Machine
US$ 76976.90
1 - 2 Set
US$ 73477.95
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-MRS10D Friction Tester Petroleum Product Four Ball Wear Testing Machine ASTM D2266 ASTM D2783US$ 73477.95 - 76976.90MOQ: 1 Set -
HST Coefficient of Friction Testing Machine COF TesterUS$ 7697.69 - 8397.48MOQ: 1 Set
-
HST MRS-10 Four Ball Wear Testing Machine Computer-Controlled Electronic-Hydraulic Power Steel Material Abrasion Testing 1-YearUS$ 2000 - 8000MOQ: 1 Set
-
MMW-1 Computer Vertical Type Tile Abrasion Testing Machine /wear Resistance TesterUS$ 680 - 2200MOQ: 1 Set
-
Leather Rolling Wear Testing Machine /Friction and Wear Tester MMW-1US$ 11500 - 12000MOQ: 1 Set
Accuracy
1
brand name
HST
place of origin
JIA
customized support
OEM, ODM, OBM
power
2, Electronic
Protection Class
IP55
Voltage
380 V, 220 V
warranty
1 year
Test force range
60N~10kN(stepless adjustable)
Relative error
±1%
Friction test range
0~300N
Friction test error
±3%
Spindle speed range
200~2000r/min(stepless adjustable)
Spindle speed error
±5 r/min
Friction pair temperature control range
RT~75 C
Friction pair temperature control error
±2 C
Test time control range
1s~999h
Products Description
1.Application
This machine mainly uses the form of sliding friction to evaluate the bearing capacity of lubricant under extremely high point contact pressure conditions. There are three indexes including maximum non-clamping load PB, sintering load PD and comprehensive wear value ZMZ. The machine can also do lubricant long - time wear resistance test, measurement of friction coefficient, record friction and temperature curve.
2.Standard
GB/T12583-98 Lubricants -- Determination of extreme pressure properties (four-ball machine method)
GB3142-82 Lubricants -- Determination of bearing capacity (four-ball method)
SH/T0189-92 Lubricating oil -- Determination of anti-wear properties (four-ball machine method)
SH/T0202-92 Test method for extreme pressure performance of greases (four-ball machine method)
SH/T0204-92 Test method for wear resistance of greases (four-ball machine method)
3.Main technical parameters
Item |
Name |
Technical parameters |
1 |
Test force range (stepless adjustable) |
60N~10kN |
2 |
Relative error of test force indication value |
±1% |
3 |
Friction test range |
0~300N |
4 |
Friction test error |
±3% |
5 |
Spindle speed range (stepless adjustable) |
200~2000r/min |
6 |
Spindle speed error |
±5 r/min |
7 |
Friction pair temperature control range |
RT~75○C |
8 |
Friction pair temperature control error |
±2○C |
9 |
Test time control range |
1s~999h |
10 |
Spindle speed control range |
1~99999999 |
11 |
Test steel balls |
φ12.7mm |
12 |
Overall dimension |
1200*870*1700 （mm） |
13 |
weight |
600kg |
