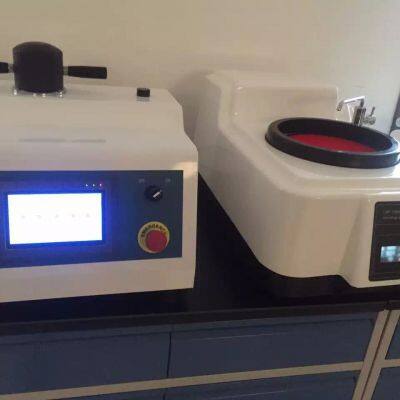

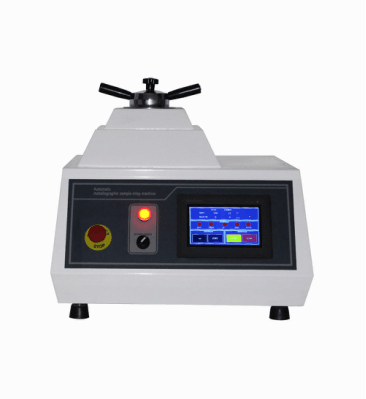

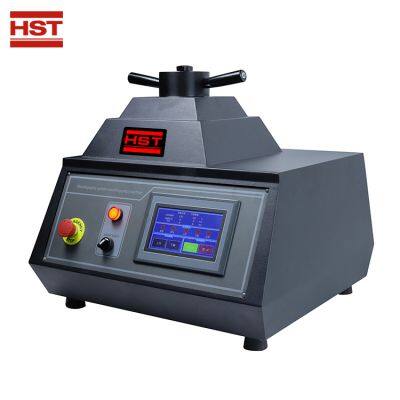

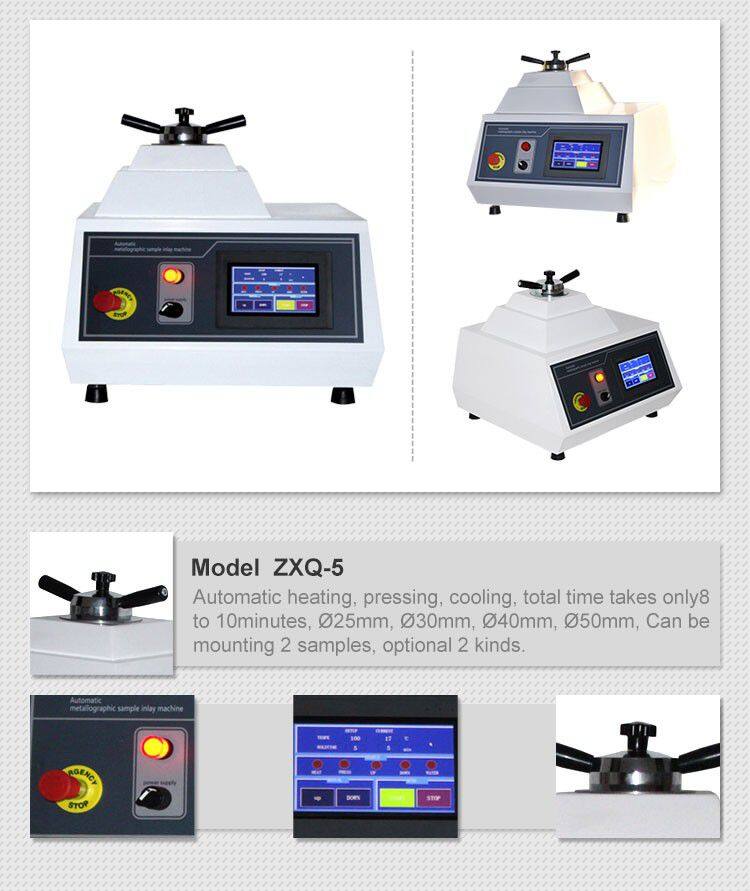

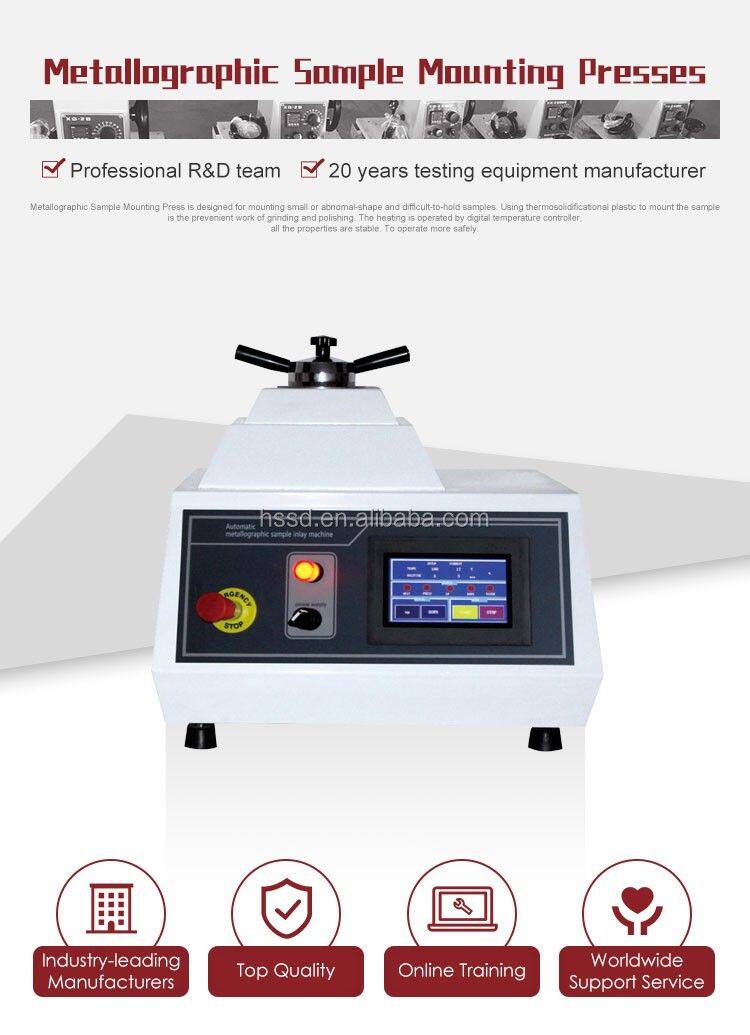

ZXQ-5 Automatic Touch Screen Metallographic Specimen Mounting Presses
1. Application:
Model ZXQ-5 automatic touch screen metallographic specimen mounting presses a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermo
plastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of molds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.
2. Main specifications:
|
Model |
ZXQ-5 |
|
Diameter of specimen |
Ø25mm, Ø30mm, Ø40mm, Ø50mm |
|
Cooling method |
water cooling |
|
Max. power consumption |
1600W |
|
Setting range of system pressure intensity |
0-2MPa (corresponding preparing) |
|
Temperature setting range |
90-190℃ |
|
Automatic cooling temperature range |
40-90℃ |
