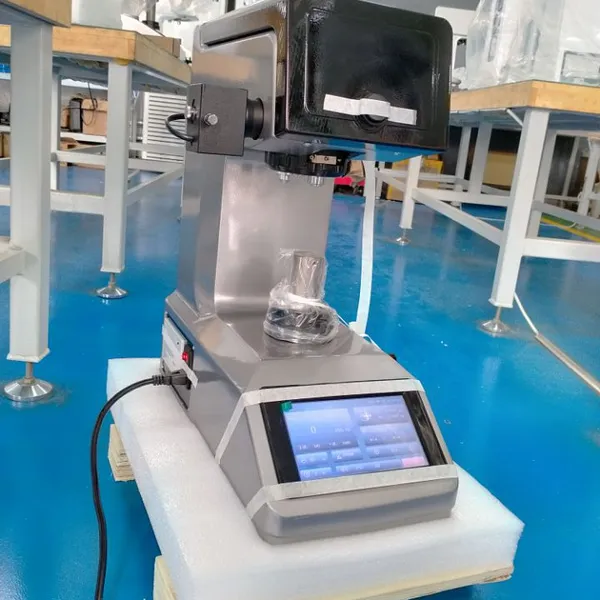

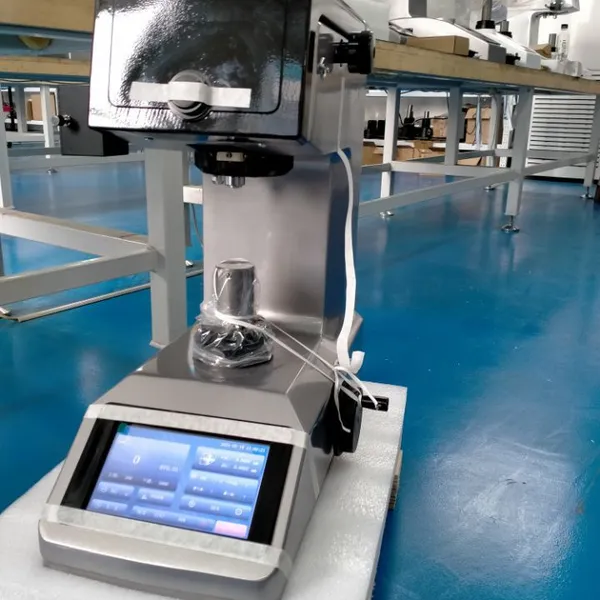

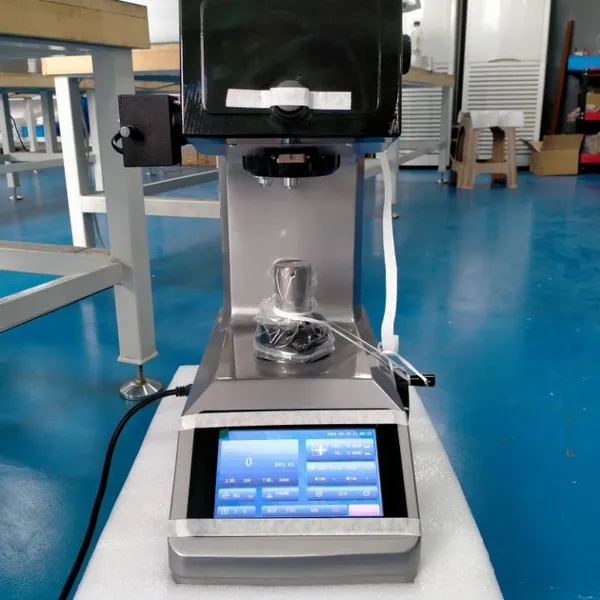

HVS-1000ZT 1kgf Touch Screen Automatic Turrent Micro Vicker Hardness Tester
US$ 20993.70
≥1 Set
Key Specifications
Get Latest Price
type:
NEW
model number:
HVS-1000ZTH
brand name:
hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST HRS-150 45TH HRA HRB HRC HRD HRE HRF Digital Full Rockwell Hardness TesterUS$ 52484.25 - 55983.20MOQ: 1 Set -
HSTR-45T Touch Screen Superficial Rockwell HardnessUS$ 4548.64MOQ: 1 Set
-
HST-HVS1000ZT New Design Tukon Tester Price Microhardness Test Made in ChinaUS$ 2400 - 2800MOQ: 1 Set
-
HSRD-45 Superficial Rockwell Hardness Tester With High QualityUS$ 490 - 650MOQ: 1 Set
-
HSRS-45T Superficial Rockwell Hardness Tester for WholesalesUS$ 490 - 650MOQ: 1 Set
type
NEW
model number
HVS-1000ZTH
brand name
hensgrand
place of origin
Shandong, China
customized support
OEM, ODM
warranty
1 YEAR
Product Name
Touch Screen automatic turrent micro vicker hardness tester
Test force
10gf-1000gf
Test force application method
automatic loading
Min.test unit
0.025um Electronic measuring eyepiece
Test microscope magnification
100X (Observation) 400X(test)
X-Y Test table
Size:100*100mm
Data output
LCD display readout, built-in printer and RS-232 interface
Max Height of Specimen
110mm
est power and load retention time
1-60s
Distance from center head to outer wall
110mm
Products Description
1.Application
HVS- 1000TH-Z touch screen automatic turret digital micro hardness
tester is mainly used for micro Vickers hardness measurement of
various metals and some non-metallic materials. ), non-ferrous metals,
heat post-treated parts, various tiny and thin parts, glass, ceramics,
agate, gemstones, etc. for hardness determination, and also suitable
for carbonization, effective depth of quenching and hardening layer,
coating, surface coating and welding Heat-affected parts of parts. It can
also be used to observe the internal metallographic structure of various
metal parts and to collect, display and output images. It is especially
suitable for measuring the hardness gradient distribution curve of the
workpiece and measuring the surface hardness of the gear after heat
treatment, and the depth of the effective hardened layer.3.Main technical parameters
HST-HVS-1000TH Manual Turret Digital Micro Hardness Tester |
||
Name |
Specification |
|
Test Force |
10gf、25gf、50gf、100gf、200gf、300gf、500gf、1kgf |
|
0.098N 、0.245N 、0.49N 、0.98N 、1.96N 、2.94N 、4.9N 、9.8N |
||
Convert Scales |
HRA 、HRB 、HRC 、HRD 、HRF 、HV 、HK 、HBW 、HR15N 、HR30N 、HR45N、 HR15T 、HR30T 、HR45T |
|
Min. Unit of measurement |
0.0025 μm |
|
Test Mode |
HV/HK |
|
Hardness Test Range |
5~3000HV |
|
Test Force Application Method |
Automatic (loading, dwelling, unloading) |
|
Turret Method |
Automatic |
|
Objective Lens |
10X 、40X |
|
Eyepiece |
10X |
|
Total Magnification |
100X (observation) 400X (measurement) |
|
Test Force Dwell Time |
1~60s |
|
X-Y Table Size |
100*100mm |
|
X-Y Test Table Maximum |
25*25mm |
|
Data Output |
Touch Screen Readout, Built-in Printer |
|
Max. Height of Specimen |
110mm |
|
The Distance From the Center of |
110mm |
|
Power Supply |
AC220V±5％，50~60Hz |
|
Executive Standard |
ISO 6507 ，ASTM E384 ， JIS Z2244 ， GB/T 4340 2 |
|
Dimensions |
405*290*480mm |
|
Net Weight |
About 40KG |
|
