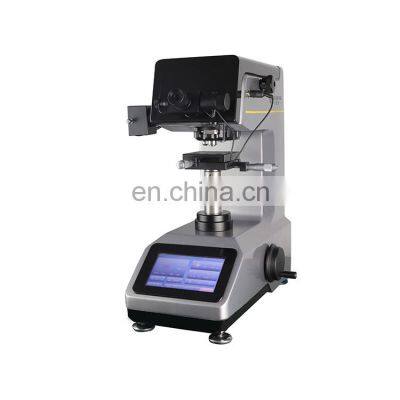

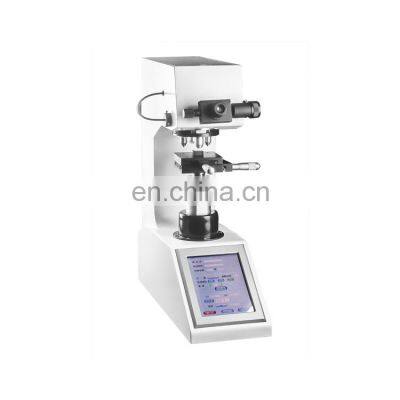

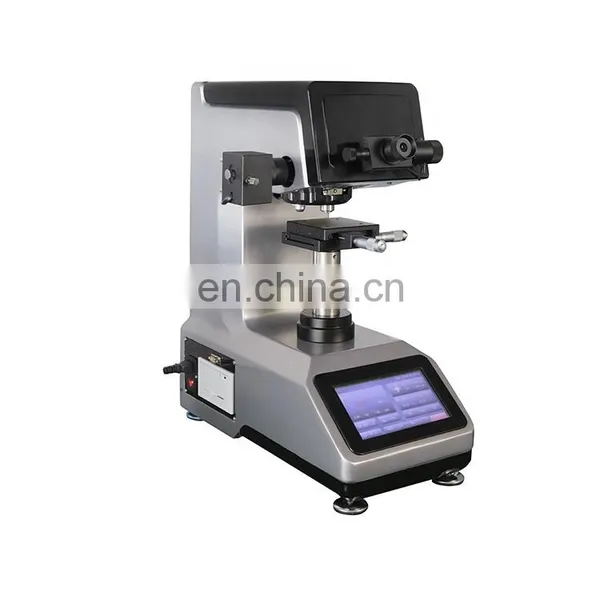

HVS-1000T Large Touch Screen Operation Digital Display Micro Vickers Hardness Tester
- T/T Credit Card
You May Like
-
ISO indenter for HR-150A Rockwell Hardness Tester
-
HR-150A Manual Alloy Steel Rockwell Hardness Tester indenter
-
HST Precision Digital Hardness Tester China Universal Hardness Tester Brinell Rockwell vicker Hardness Tester
-
HST HENSGRAND Manufacture Brinell Rockwell Vicker All In One Digital Universal Hardness Tester Price
-
HST Electronic Universal Hardness Tester hardness tester, metal hardness tester price,hardness testing machine
-
Durometer HBRVS Brinell Rockwell Vickers Hardness Tester / universal hardness tester price
Product Description
HVS-1000A Large Touch Screen Operation Digital Display Micro Vickers Hardness Tester
Mobile/whatsapp: + 86-15866781190 Skype: hstbetty009
HVS-1000A Large Touch Screen Operation Digital Display Micro Vickers Hardness Tester
1. Applications:
It can be used to determine the hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vicker hardness of micro and super thin parts.
2. Feature:
1. A frictionless loading shaft mechanism is adopted in the instrument. As a result, the steady test force has been ensured and the test accuracy has been increased.
2. Computer and angular displacement sensor are adopted so that the test procedure, hardness value display and data-printing are performed automatically.
3. Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
3. Specifications:
|
Model |
HVS-1000T |
|
Conversion Scale |
HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T |
|
Testing Force |
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0% |
|
Min. Measuring Unit |
0.01μm |
|
Hardness Value Rang |
8HV-2900HV |
|
Total magnification |
100X (For Observation) , 400X (For Measurement) (Can be extended to 150X or 600X) |
|
Loading method |
Automatically(Load, dwell and unload the testing force) |
|
Duration Time |
0-60s (each step is 1 second) |
|
Turret |
Manual Turret |
|
Objective lens center and indenter center |
Coincidence accuracy error < 1um (objective lens center position can be adjusted) |
4. Standard accessories
Coordinate anvil: 1 pc. (Table size: 100 x 100mm, travel: 25 x 25mm, grade division of micrometer head: 0.01mm)
Thin shaft anvil (Ø 0.3- Ø 5mm): 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Micro-Vickers standardized block: 2 pcs.
5. Optional accessories
Knoop penetrator
CCD camera and image processing system
