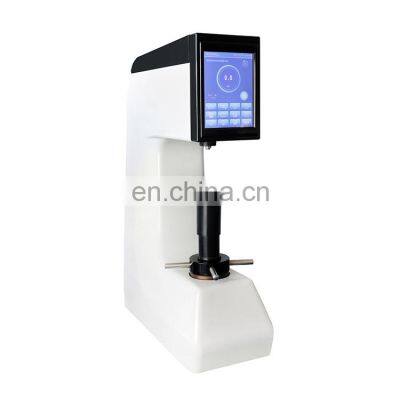

HBRV-187.5D Motor-driven Type Brinell Rockwell Vickers Universal Hardness Tester

1. HBRVS-187.5D Digital Display Motorized Brinell Rockwell & Vickers Hardness Tester has 8-inch touch screen intuitive display and single-chip microcomputer control system, which can realize man-machine dialogue and automatic operation. It has high test accuracy, simple operation, high sensitivity, convenient use and stable display value. The electronic closed-loop control applies the test force; it fully realizes the automatic operation of the test force application, removal, and direct display of hardness values.

Built-in printer, RS232 interface and USB interface, can realize data exchange between computer and hardness tester.

1.Using 8-inch touch screen, rich display content and easy operation

2, ready to use, no need to install weights

3. Electronic loading, closed-loop force control, high accuracy

4, three methods of Brinell, Rockwell, Vickers hardness test

5.Automatic hardness conversion

6.High-precision optical system

7. The measurement data is saved in EXCEL format for easy editing and saving.

8, with RS232 interface, test results can be transmitted to the computer

Application and scope:

Determination of Brinell, Vickers, Rockwell hardness of ferrous metals, non-ferrous metals and hard alloys;

Wide range of applications, can be widely used for determination:

a.Brinell hardness of castings, annealed steels, normalized steels, non-ferrous metals and soft alloys

b. Rockwell hardness of heat-treated materials such as quenching and quenching and tempering

c. Vickers hardness of the nitrided layer, ceramic, sheet, metal foil, electroplated layer, and small parts.

Technical specifications

1.The Power Source and the Voltage:  AC220V±5%, 50-60 HZ

2. Delay control: 0 ~ 90 seconds adjustable

3. The distance from the center of the indenter to the fuselage: 160mm The maximum allowable height of the design: Rockwell 180mm, Brinell 168

4. Dimensions of the hardness tester (length × width × height): 550 × 230 × 780mm

5. Instrument weight: 80kg

6. Total test force:

The Test Force of Rockwell Hardness:60,100,150KGf(588,980,1471N)

The Test Force of Brinell Hardness:15.625,31.25,62.5,125,187.5Kgf(153.2,306.5,612.9,1226,1839N)

The Test Force of Vickers Hardness:5,10,20,30,50,100Kgf(49.03,98.07,196.1,294.2,490.3,980.7N)

7.Scale range:

Rockwell: HRA,HRB,HRC,HRD,HRF,HRG

Brinell:HBW2.5/15.625 HBW2.5/31.25 HBW2.5/62.5 HBW5/125 HBW2.5/187.5

Vickers:HV5,HV10,HV20,HV30,HV50,HV100

8.Measuring range:

Rockwell:20-88HRA,20-100HRB,20-70HRA

Brinell:5-650HBW

Vickers:10-2900HV

9. Magnification:150X,75X,37.5X
