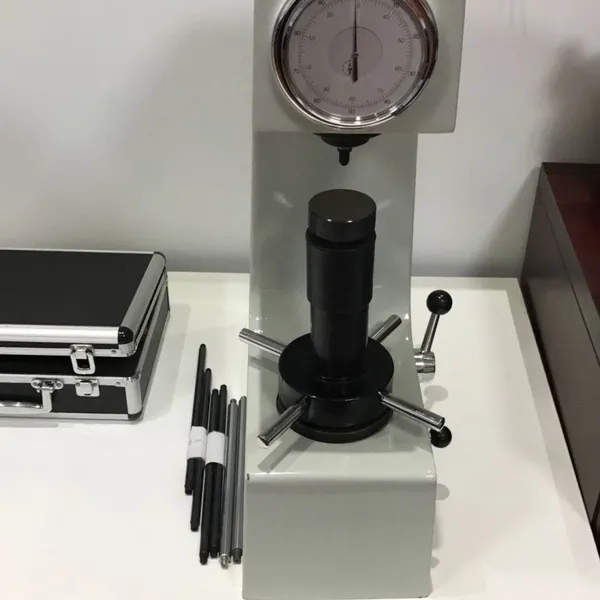

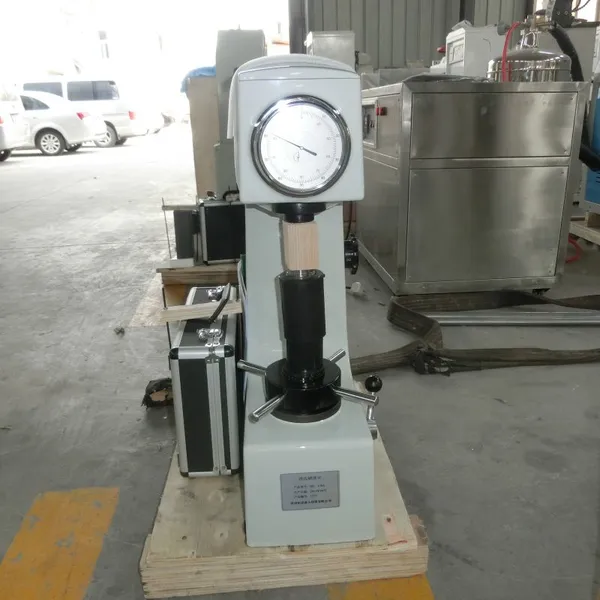

Rockwell Hardness Tester HST-HRD150B Electric High Stroke Rockwell Hardness Tester
US$ 1000 - 1230
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HVS-50Z 50kgf Digital Automatic Turrent Vickers Hardness TesterUS$ 2500 - 3000MOQ: 1 Set -
HST-HSRS45 Touch Screen Display Superficial Rockwell Hardness TesterUS$ 10846.75MOQ: 1 Set
-
HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell MeasurementsUS$ 900 - 1500MOQ: 1 Set
-
HRS-150T Touch Screen HRA HRB HRC Digital Rockwell Hardness TesterUS$ 10496.85MOQ: 1 Set
-
HST HBRV-187.5D Motor-driven Type Brinell Rockwell Vickers Universal Hardness TesterUS$ 9797.06 - 11196.64MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
3KW
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Digital Printing
Product name
Electric High Stroke Rockwell Hardness Tester
Model
HST-HRD150B
Initial test force
98.07n (10kgf)
Total test force
588.4n(60kgf), 980.7n(100kgf), 1471n(150kgf)
Loading method
Automatic (Loading/ Dwell/ Unloading)
Resolution
0.5HR
Dwell time
2-60 seconds
Max. height of specimen
400 mm
Throat
165mm
Power supply
AC220V, 50Hz
HST-HRD150B Motor-driven type High Stroke Rockwell hardness tester Dail Display
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
2.Specifications
HST-HRD150B electric high stroke Rockwell hardness tester uses a motor to control the loading, holding and unloading process of the test force, and the dwell time can be selected. The operation is simple and fast, eliminating human operating errors, and has high sensitivity and stability.
2.Specifications
Item |
HST-HRD150B |
Initial test force |
98.07n (10kgf) |
Total test force |
588.4n(60kgf), 980.7n(100kgf), 1471n(150kgf) |
Loading method |
Automatic (Loading/ Dwell/ Unloading) |
Resolution |
0.5HR |
Dwell time |
2-60 seconds |
Max. height of specimen |
400 mm |
Throat |
165mm |
Power supply |
AC220V, 50Hz |
Execute standard |
ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2 |
Dimension |
230*500*900mm |
Weight |
140kg |
Product Features :
* Using mechanical manual testing, no power supply is required, it has a wide range of applications, is easy to operate, and has
good economy and practicality
* The fuselage is made of high-quality cast iron and is molded in one step, combined with automotive paint processing technology
to create a round and beautiful appearance.
* The dial directly reads the hardness value, and can be equipped with other Rockwell scales; it adopts a friction-free spindle
and has high test force accuracy.
* Adopts an integrally cast precision hydraulic buffer with no buffer leakage, smooth loading and unloading, no impact, and
adjustable speed; the accuracy complies with GB/T230.2-2018 , ISO6508-2 and American ASTM E18-16-M standard.
good economy and practicality
* The fuselage is made of high-quality cast iron and is molded in one step, combined with automotive paint processing technology
to create a round and beautiful appearance.
* The dial directly reads the hardness value, and can be equipped with other Rockwell scales; it adopts a friction-free spindle
and has high test force accuracy.
* Adopts an integrally cast precision hydraulic buffer with no buffer leakage, smooth loading and unloading, no impact, and
adjustable speed; the accuracy complies with GB/T230.2-2018 , ISO6508-2 and American ASTM E18-16-M standard.
