HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements

HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements photo-1

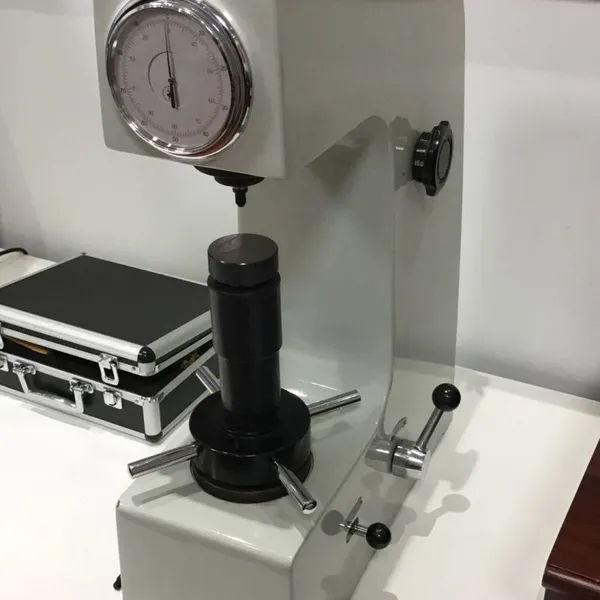

HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements photo-2

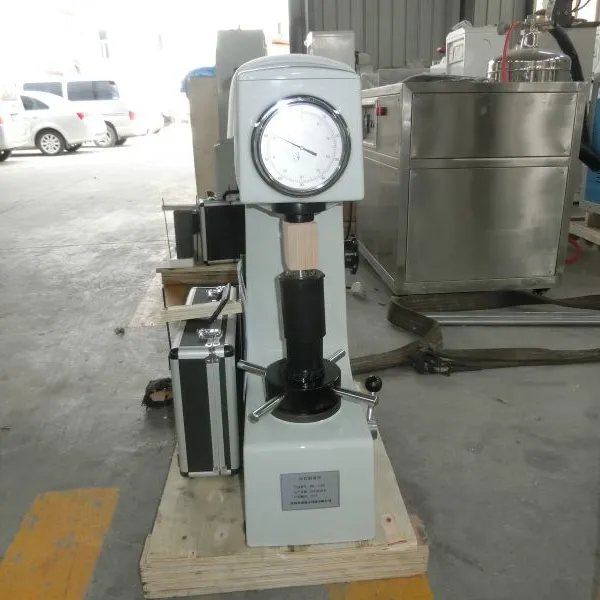

HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements photo-3

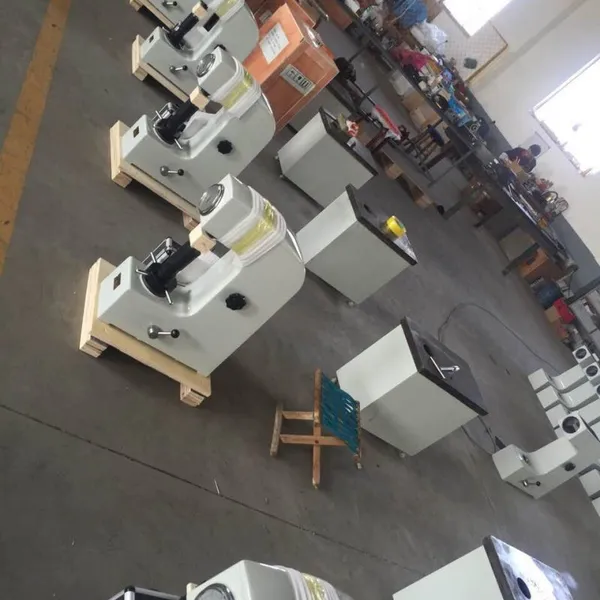

HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements photo-4

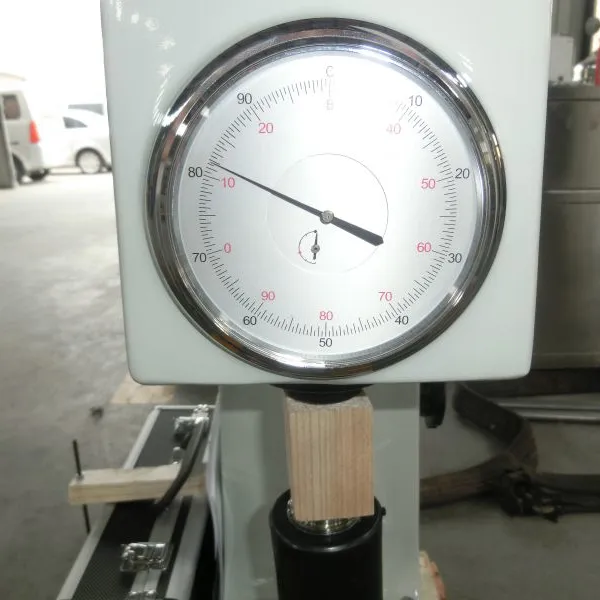

HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements photo-5

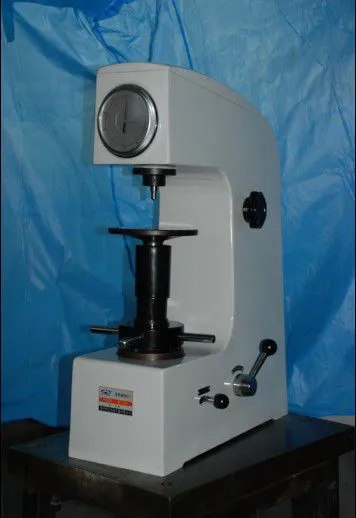

HRS-150/45DT Hardness Tester for Rockwell and Superficial Rockwell Measurements photo-6
US$ 900 - 1500 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
class1
brand name:
hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Accuracy class1
brand name hensgrand
place of origin Shandong, China
customized support OEM, ODM, OBM
power 0.1kw
Protection Class IP55
Voltage 220 V
warranty 1 YEAR
Product name rockwell hardness testing machine hr-150m
Max Height of Specimen 400mm
Indication of Hardness Value LCD display
Data output inside printer, RS232
Conversion Scale Superficial Rockwell, Brinell, Vickers
Distance of Indenter to outer wall 160MM
Preliminary Testing force 10KGF
Testing force 60/100/150KGF
Rockwell Scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK
Net Weight 70kg

HRS-150/45DT Rockwell and superficial rockwell hardness tester

Main Features:



1. Modern and beautiful appearance, stable structure

2. Touch screen interface, easy operation, multi-language versions

3. Unnecessary for installing weights and debugging

4. Electric loading, closed-loop control

5. All Rockwell scales, total 15 types

6. Automatically apply the initial load and main load

7. Automatic correction of high, medium and low hardness numbers

8. Automatic correction of load, with the force accuracy increased by a numerical level

9. More information of sample and testing

10. Data stored in USB flash disk, EXCEL format, easy for compiling and processing

11. Adopt the modular design, easy maintenance

12. Larger sample space, huge sample stage



Application Fields:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.

Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.
