500N or 50KG spring tension and compression load universal test machine
Application:
Adopting electric load reduction system after deceleration to driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process. It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring, saucer reed, tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.
cheap TLS digital display spring testing machine specification:
|
Model |
TLS- 005 |
TLS- 01 |
TLS- 02 |
TLS- 05 |
TLS- 1 |
TLS- 2 |
TLS- 3 |
TLS- 5 |
|
Max test force(N) |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
|
Structure |
Single column, double spaces(lower tensile,upper compression) |
|||||||
|
Control method |
Single chip control |
|||||||
|
Test accuracy |
1 class |
|||||||
|
Test force test arrange (F·S) |
2%~100%F·S |
|||||||
|
Test force value relative error |
≤±1% |
|||||||
|
Displacement value relative error |
≤±1% |
|||||||
|
Displacement resolution |
0.01mm |
|||||||
|
Deformation value relative error |
≤±(50+0.15L)um |
|||||||
|
Speed adjust range |
0.05-500mm/min(stepless speed regulating) |
|||||||
|
Speed relative error |
≤±1% |
|||||||
|
Effective tensile space |
Standard: 600mm Heighten: 850mm |
|||||||
|
Effective compression space |
Standard: 600mm Heighten:850mm |
|||||||
|
Pressure plate size |
110mm |
|||||||
|
Upper and lower platen parallelism |
≤0.05mm |
|||||||
|
Power supply |
AC220V±10%,50Hz |
|||||||
|
Dimension |
550×400×1600mm |
|||||||
|
Weight |
About 100kg |
|||||||
Main Features:
1. Automatic calibration: system can automatically realize the accuracy of the calibration value
2. Automatic stop: After the sample broken, the moving beam automatic stop.
3. Automatic display: Real-time display two kinds curves: spring testing force and height, test force and deformation
4. One point or multi-point test: can preset standard values, upper and lower deviation, automatically determine whether spring qualified, lower or higher than the standard value of the standard value;
5. Measurements can be segmented, and can be calculated each segment stiffness (elastic coefficient) K, and the average stiffness;
6. Automatic return: beam automatic return to initial position when testing finished.
7. Breakage judgment: sample after fracture,beam automatic stop moving
8. Limiting protection: Program control and Mechanical limiting protection.
9. Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working.

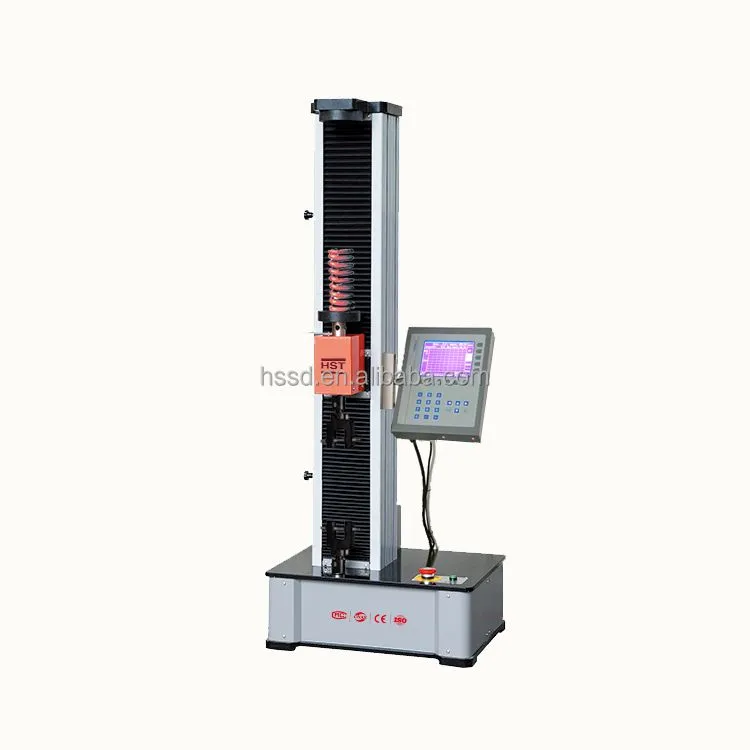

single column digital universal spring testing machine:

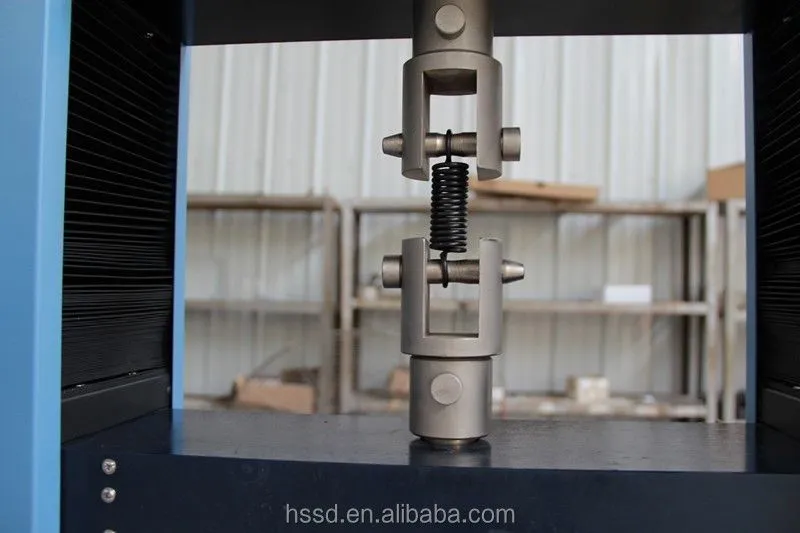

Fixture photo:
|
|
|
|

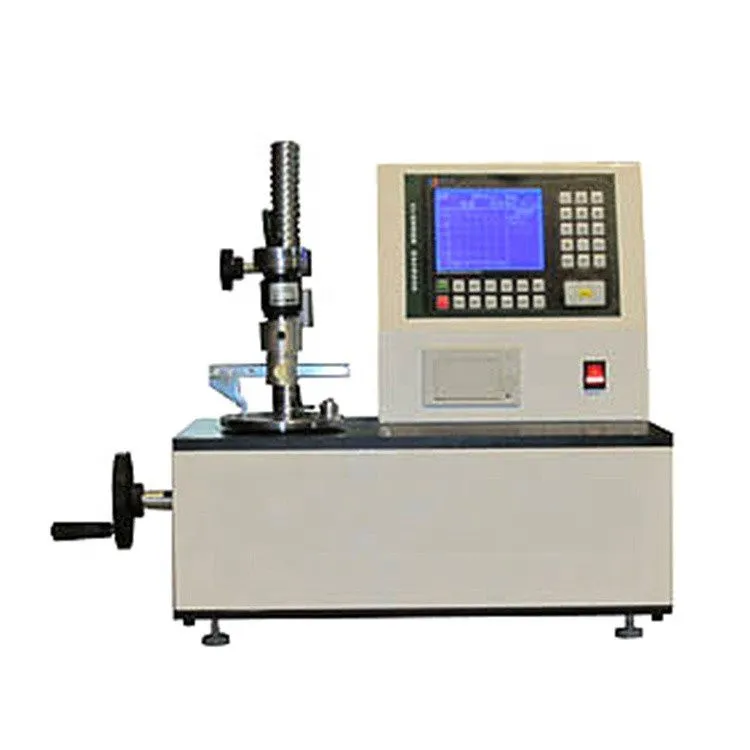

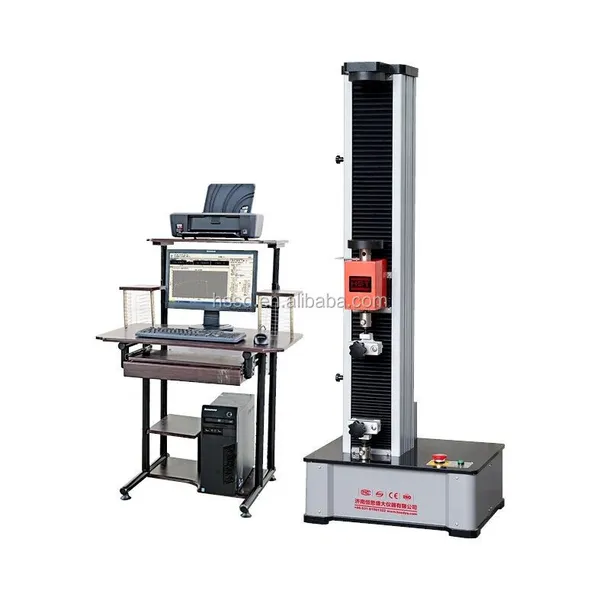

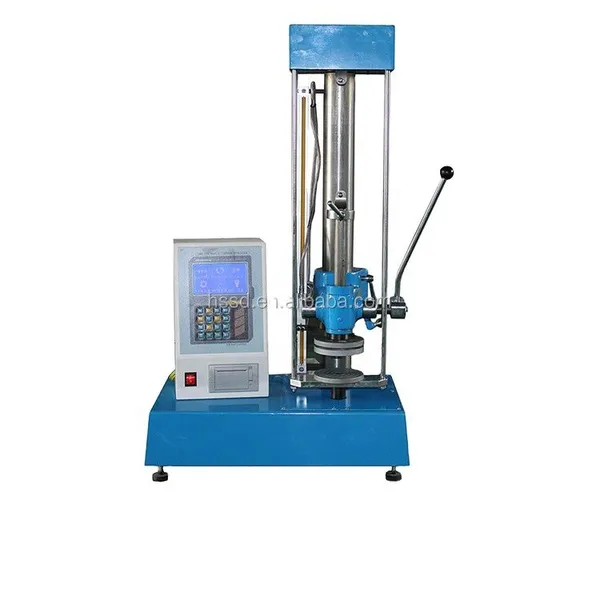

| 10N-10KN Touch scree spring tension compression tester | 10N-5KN Digital display spring tension compression tester | 10N-5KN Digital display spring tension compression tester |
|
|
|
|

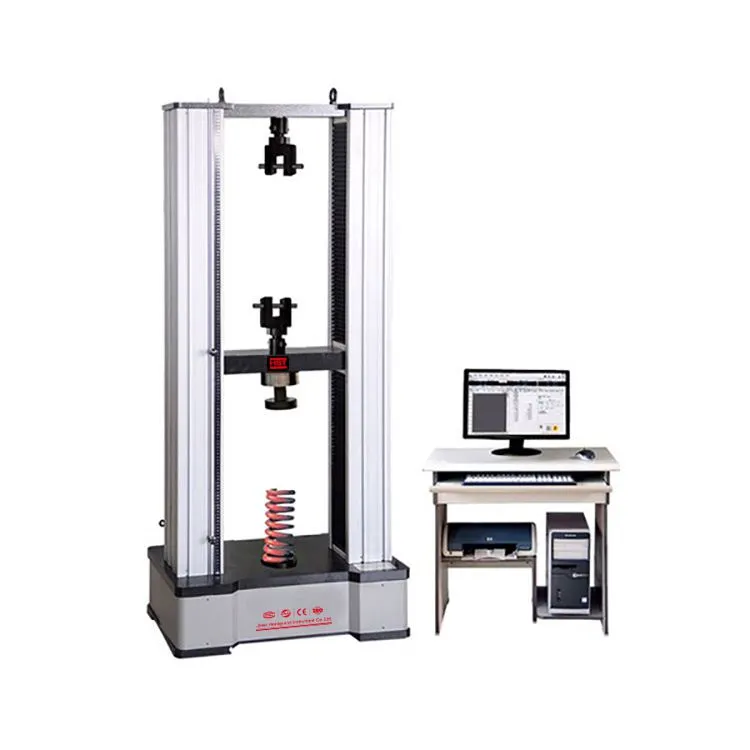

| 20N-5KN Digital display spring tension compression testing machine | 10-100kn spring tension compression testing machine | Spring fatigue tester |
|
|
|
| Spring torsion tester | Spring fatigue tester | Spring torsion testing machine |
