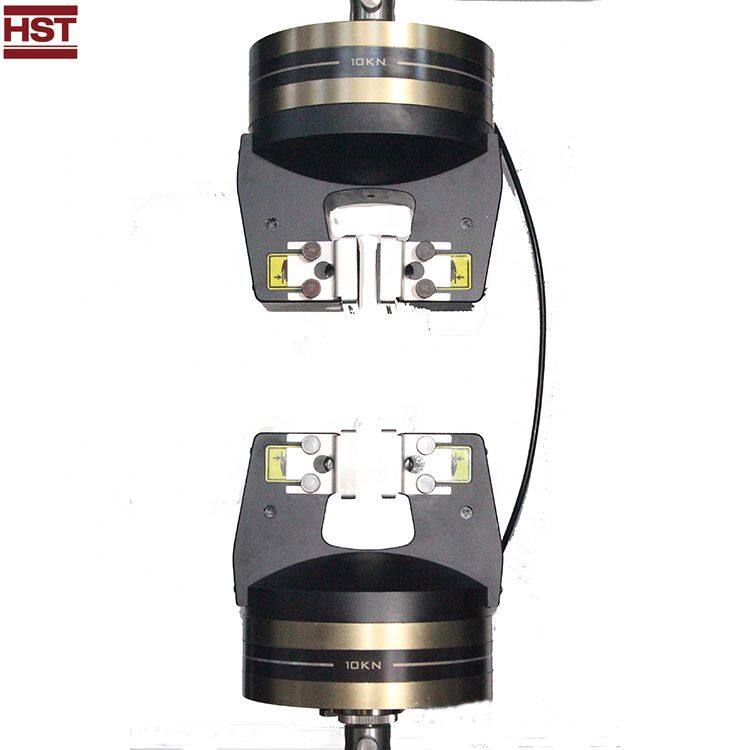

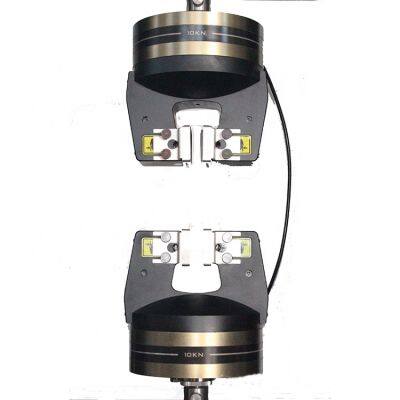

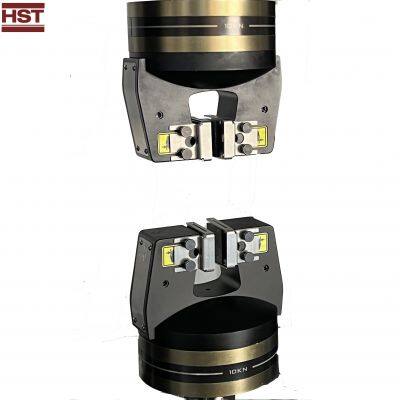

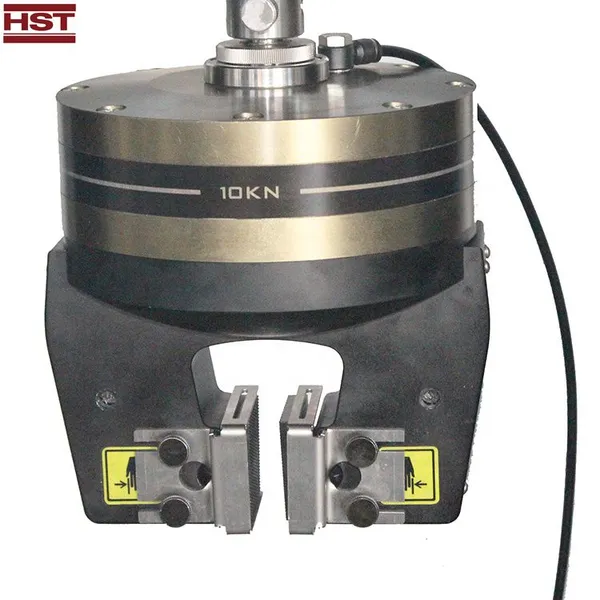

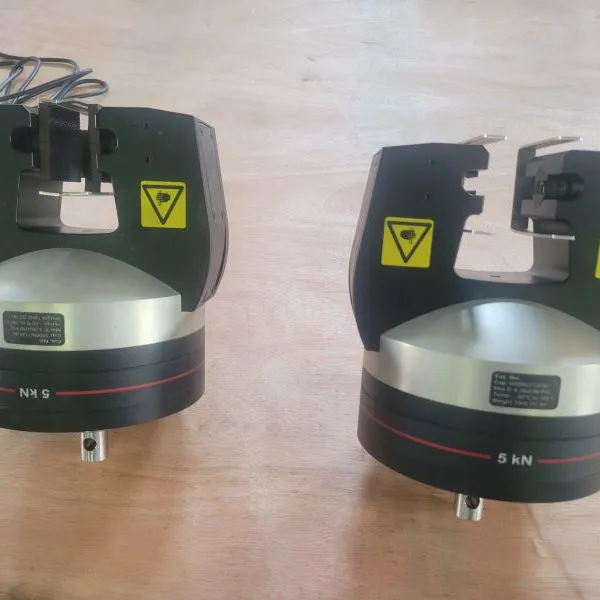

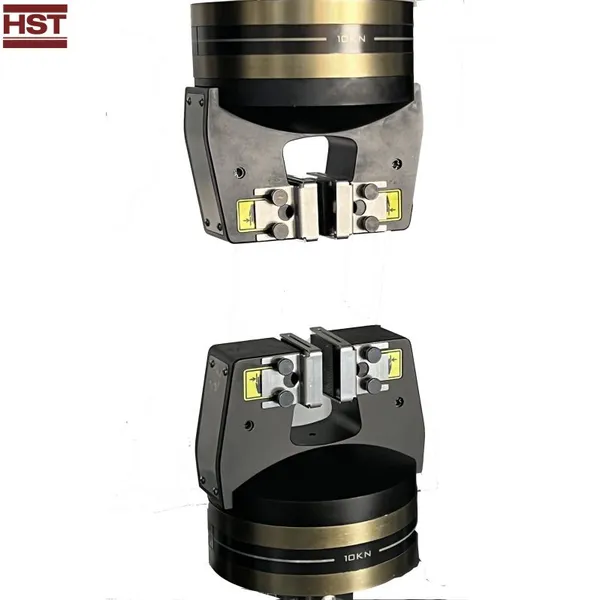

5/10KN Pneumatic Tensile Grips for Universal Testing Machine
Application:
• Static tensile tests on a wide range of materials and specimen types including plastics, metals, textiles,
paper, thin sheet, foil, and wire.
• Type of loading: Tensile, static and tension-tension cyclic tests. Not suitable for high-cycle dynamic fatigue tests.
• Specimen shapes: Round (wires) and flat specimens with or without shoulder.
Features:
• Robust design
• Dual-action gripping ensures the specimen self-centers.
The 5 and 10 kN models feature adjustable offset for lap-shear and other asymmetrical specimens

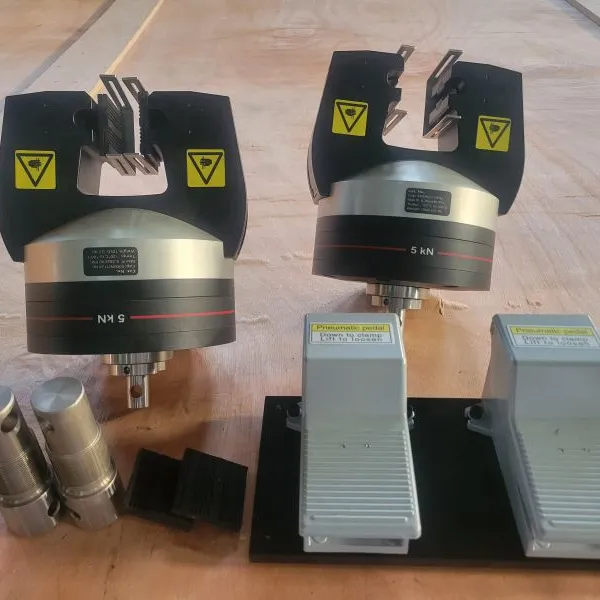

• Each grip features an air valve to open and close the grips or there is an optional foot switch
• Rotatable air inlet with air flow control improves hose runs and provides adjustable closing speed
• Unique locknut design removes backlash in the loadstring without the need for tools
• Jaw faces can be changed in seconds without the use of tools or pins
• Large space between the jaw faces and the grip body eases specimen insertion and reduces the risk of
pinched fingers
• Jaw face shields add another layer of protection for the operator, as well as having markings that help you to
maintain good specimen alignment
• Excellent, repeatable gripping performance is assured by the robust, fully enclosed self-centering mechanism
• Enclosed design resists dirt and debris
• High quality, low maintenance components provide reliability and low cost of ownership
• Wide opening for thicker specimens
• Variety of jaw face sizes and surfaces
• Specimen Alignment Device ensures accurate specimen placement (optional accessory)
|
Maximum Force Capacity |
1kN |
5 kN |
10kN |
|
Maximum Specimen Thickness |
13mm |
26 mm |
26 mm |
|
Maxim Jaw Face Travel |
13mm |
8 mm |
8 mm |
|
Upper Fitting |
6 mm clevis (Type Om) |
1/2 in clevis (Type Dm) |
1/2 in clevis (Type Dm) |
|
Lower Fitting |
6 mm clevis (Type Om) |
1/2 in clevis (Type Dm) |
1/2 in clevis (Type Dm) |
|
Overall Width (A) |
126 mm |
199 mm |
208 mm |
|
Effective Length (B) |
176 mm |
236 mm |
239 mm |
|
Jaw Center to Grip Edge (C) |
16 mm |
19 mm |
19 mm |
