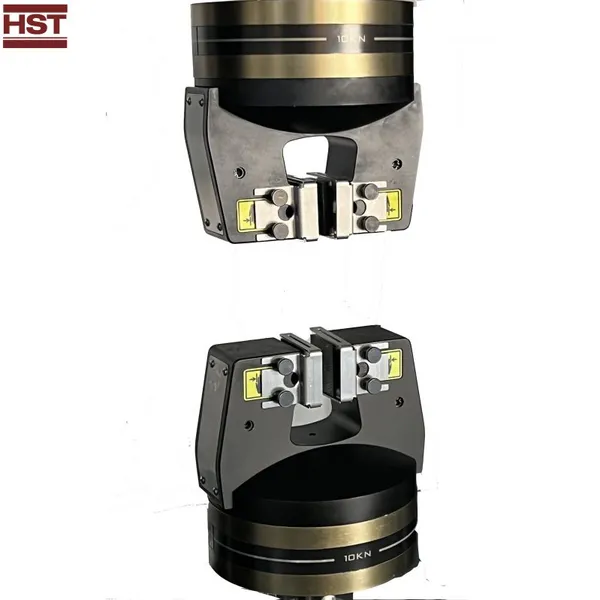

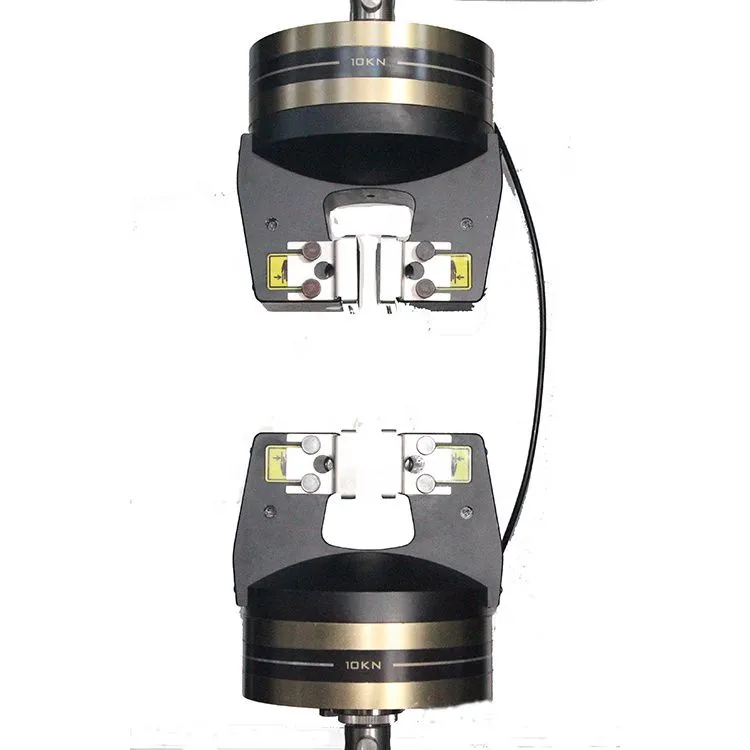

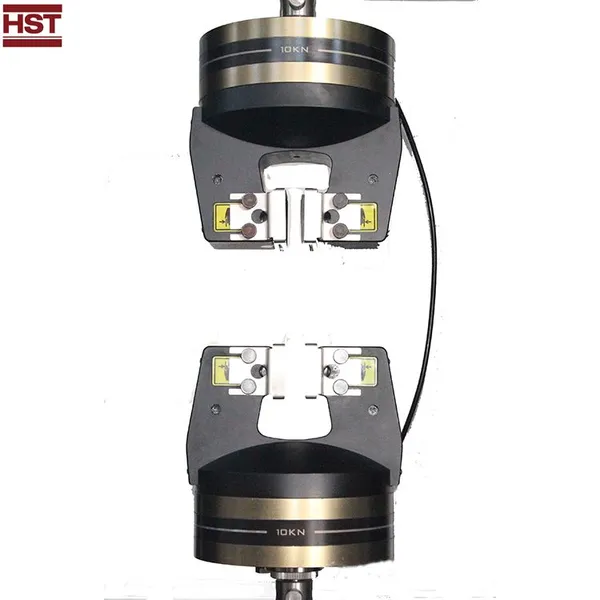

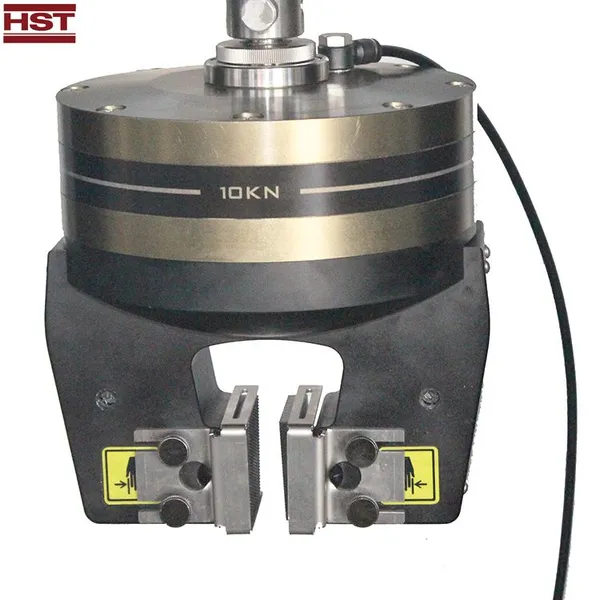

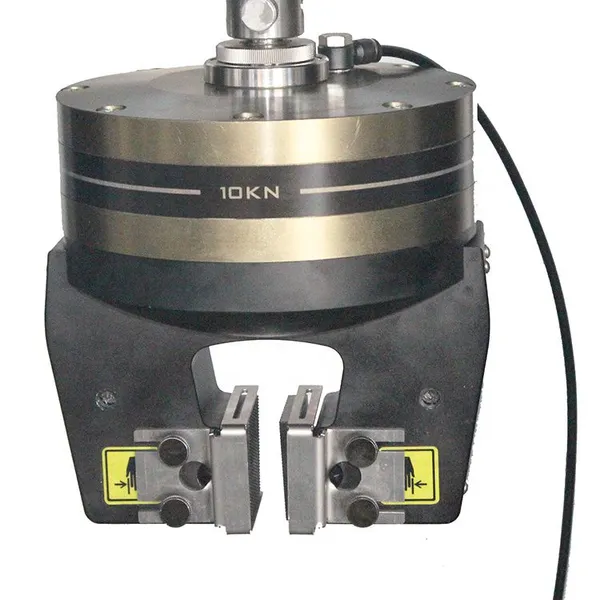

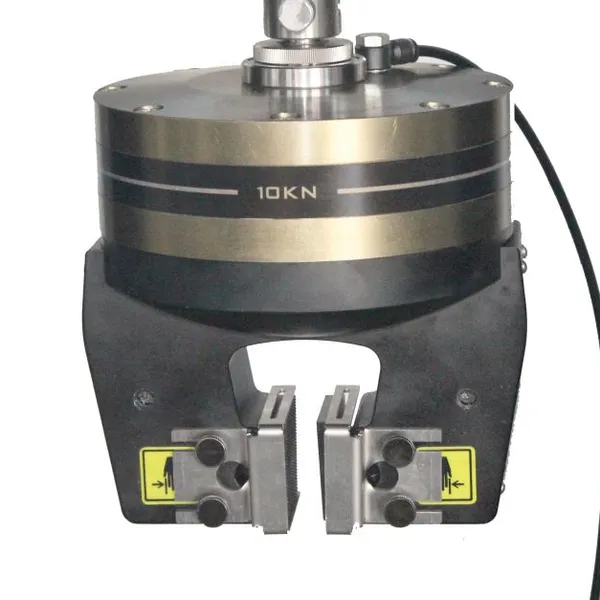

Rubber Plastic 1kN 5kN 10kN Pneumatic Side Action Tensile Grips for Electronic Universal Testing Machine
US$ 559.84
1 Set
US$ 489.86
≥2 Set
Key Specifications
Get Latest Price
brand name:
HST
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1kN 5kN 10kN Film Elastomers Fleece Wood Pneumatic Side Action Tensile GripsUS$ 17494.75 - 19594.12MOQ: 1 Set -
30KN Manual Type Tensile Grips Testing AccessoriesUS$ 1999 - 2005MOQ: 1 Set
-
5/10KN Pneumatic Tensile Grips for Universal Testing MachineUS$ 2255 - 3155MOQ: 1 Set
-
3-point Bending Fixture for Universal Testing MachineUS$ 1999 - 2005MOQ: 1 Set
-
Spare Parts for Testing MachineUS$ 100 - 200MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
warranty
1 YEAR
model number
HST
Product name
Pneumatic grips
Model
HS
Grips
pneumatic
Application
Installed on testing machine
Certificate
CE/ASTM/JIS
Material
Metal
applicable models
electronic universal testing machine
Capacity
1kN 5kN 10kN
Brand
HST HENSGRAND
Usage
Test bolt nut
Rubber plastic 1kN 5kN 10kN pneumatic side action tensile grips for electronic universal testing machine
Product Description
PRINCIPLE OF OPERATIONPneumatic side-action grips offer a versatile gripping solutionfor a wide range of materials. The gripping force is controlledby adjusting the inlet air pressure and remains constanteven if the specimen thickness changes significantly duringthe test. The quick and easy operation of the grips improvesproductivity and usability compared to other types ofgripping techniques.
Grips are attached to the system by a simple clevis pin.The ergonomically designed locknuts eliminate backlash.Jaw faces can be changed single-handedly in secondswithout the use of tools or pins. The grips can be left onthe system and there are no loose items to misplace.
Specification Data
Capacity: 1kn, 2kn , 5kn ,10kn
Jaws include:
Brake Liningjaws: For gripping composite tows and other hard, but easily damaged, materials
Line Contact jaws: For gripping paper and elasticated fabrics
Rubber jaws: For gripping threads, fabrics, plastic tapes,and materials where a compliant surface is beneficial.
Serrated jaws: For gripping plastics, metals, fabric, and soft materials, such as elastomers.
Smooth jaws: For gripping films, foils, fine wires, thin sheets, and tapes.
Vee Serrated jaws: For gripping larger diameter rounds, such as thicker metal wires, tubes, and hard plastic.
Wave Profile jaws: For gripping coated, fabrics, tough foils, and engineering textiles.
