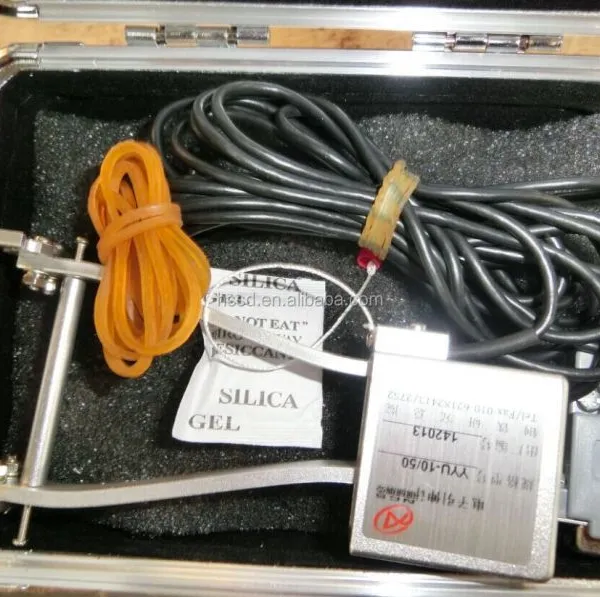

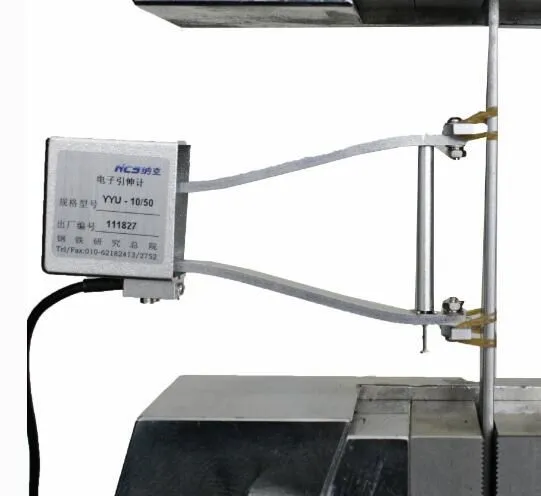

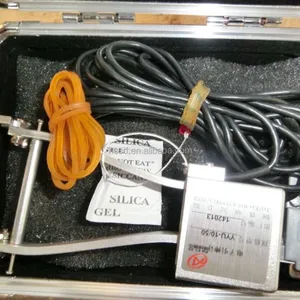

YYU-25/10 Hot Selling Electronic Extensometer
Electronic extensometer is a sticked resistance strain gauge measuring the line deformation between two points of a component and an object. It is composed of elastic elements and a strain gauge pasted on it. When the extensometer is stretched, it causes the deformation of the elastic body and changes the resistance value of the strain gauge pasted on it. It is then scaled up, converted and processed by computer.
Electronic extensometer has the characteristics of high precision, high sensitivity, simple structure, good stability and easy to use. The product has 0.5 grade, 1.0 grade accuracy extensometer, which can be used for static and dynamic mechanical properties test.
1. Strain gauge resistance value :350Q
2. Supply bridge voltage :≤6V(DC, AC can be)
3 output sensitivity: about 2mV/V4. Extensometer range :YYU series 5mm~lm; YYJ Series 5~25mm
5. Maximum deformation :YYU Series 100mm; YYJ Series 10mm
6. Output connector: conventional four-core, five-core, nine-hole, nine-pin or USB plug, can also be based on user requirements customize.
