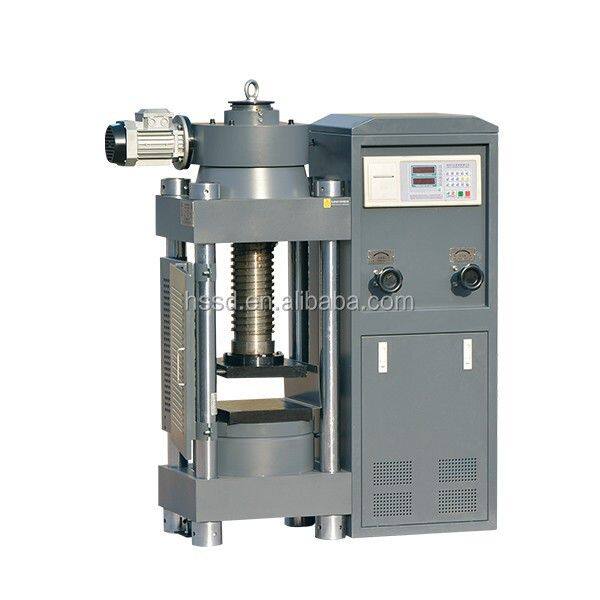

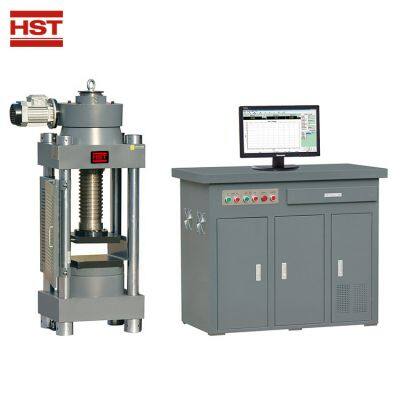

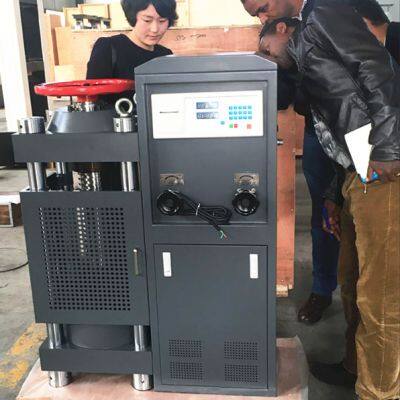

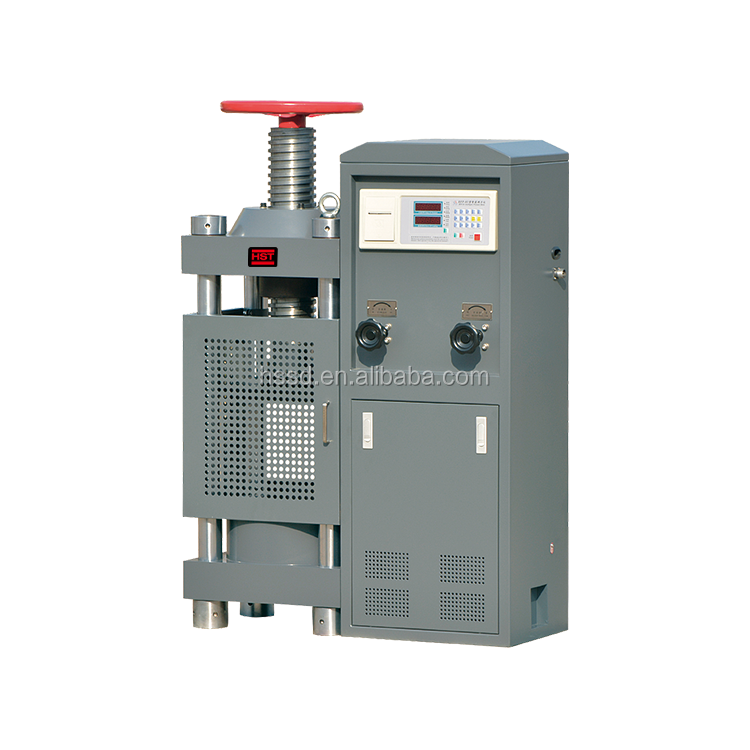

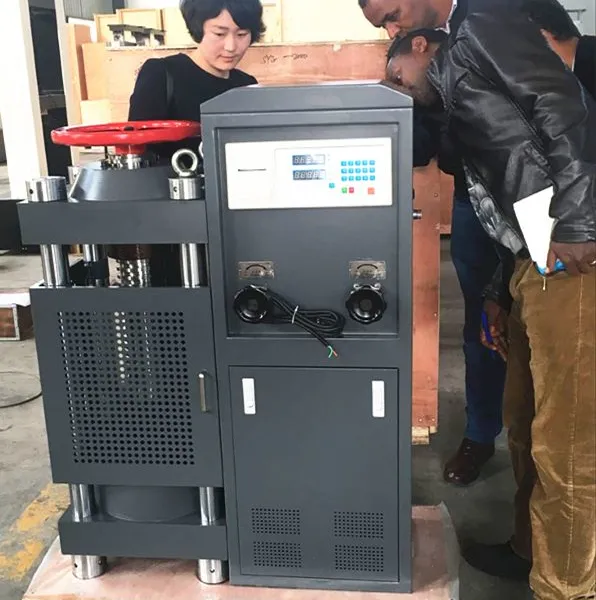

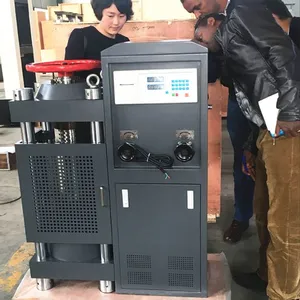

Help Center3000KN Hydraulic Press Tester / Concrete Compressive Strength Testing Machine
Related Products
-
YAW-3000D Computer Control Electric Screw Brick And Cement Concrete Hydraulic Compression Testing MachineNegotiableMOQ: 1 -
YAW-3000D 300TON Computer Automatic Compression TesterNegotiableMOQ: 1
-
YAW-2000D Calculates Automatically Computer Control Electric Screw Concrete Compression Testing MachineNegotiableMOQ: 1
-
Concrete Compressive Strength Testing Machine for Sale 2000 kn Compression Testing MachineNegotiableMOQ: 1
-
HST Concrete Compressive Strength Test Machine 2000 Kn Concrete TestingUS$ 11546.54 - 11896.43MOQ: 1 Set
YES-3000D Hydraulic Compression Testing Machine
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure: mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting
* Measuring control system: The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device: When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications
|
Model |
YES-3000D |
|
Max test force |
3000kN |
|
Test space adjusting way |
Electric ball screw adjusting |
|
Control way |
Manual control loading process |
|
Accuracy class |
1 class |
|
Test force range |
4%~100%F·S |
|
Test value accuracy |
Better than ±1% |
|
Oil cylinder stroke |
80mm |
|
Max distance between upper and lower plate |
340mm |
|
Max distance between two columns |
280mm |
|
Pressure plate |
270×270mm |
|
Main unit dimension |
1000×500×1450mm |
|
Power supply |
2.0Kw/AC380V |
|
Weight |
1500Kg |
YES-3000D Hydraulic Used Concrete Compression Testing Machine
