VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine

Hst Group Co.,ltd. Gold Verified Supplier
1Yr
Verified Business License
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine thumbnail-1
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine thumbnail-2
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine thumbnail-3
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine thumbnail-4
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine thumbnail-5
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine thumbnail-6
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine photo-1
VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine photo-2

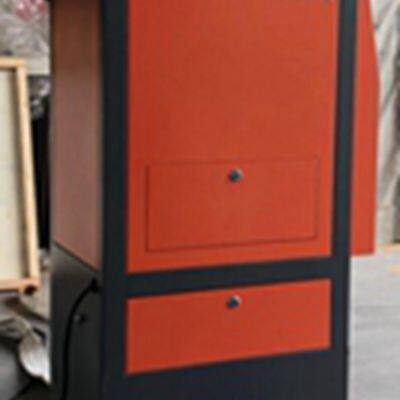

VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine photo-3

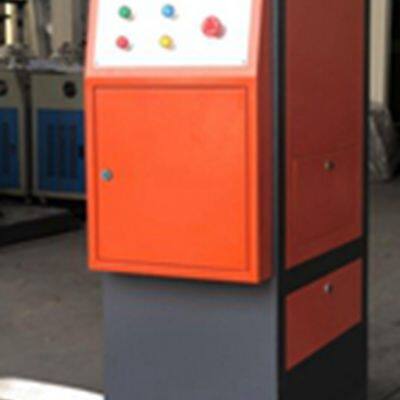

VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine photo-4

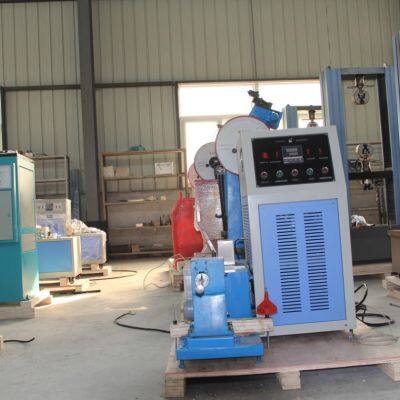

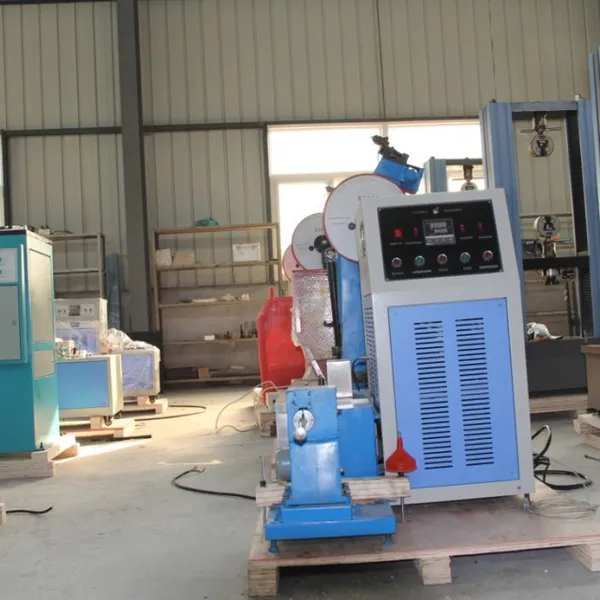

VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine photo-5

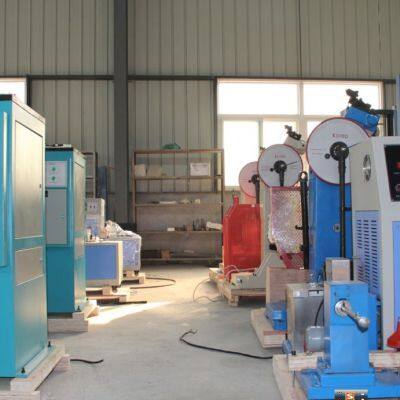

VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine photo-6
US$ 100 - 2000 MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
12 Months
brand name:
HST
place of origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 12 Months
brand name HST
place of origin Shandong, China
customized support OEM, ODM, OBM
power Hydraulic
warranty 3 years
model number VU-2Y
Product name VU-2Y Hydraulic Metal Impact Charpy V Notch Broaching Machine
Shape of sample gap v, u
Application broach impact sample
sample size 10*10*55mm
Broach moving distance 350MM
Broaching speed 2.5m/min
Motor power 400w
power supply 380, 220V
Product Description
1. Application The machine is special processing equipment "metal Charpy notched impact test method" in the impact of the sample produced V-and U-requirements and developed according to GB / T229-2007, fully meet GB229-2007, ASTM, E23-02a, indicators specified in the standard EN10045, ISO148, ISO083 and so on. 2.Test standard GB / T229-2007, GB229-2007, ASTM, E23-02a, EN10045, ISO148, ISO083 3.Descriptions: The machine consists of working parts, hydraulic drive parts, electrical control, lubrication and cooling section, and other auxiliary section. Random configuration 2mm V type and 2mm U type broaches, a notch forming, one time can successfully draw two standard notch, broaches the use of special materials, special technology precision manufacturing, high hardness, wear resistance, long service life.
Shape of sample notch
2 mm V type,2 mm U type，
(U 3 mm, U 5 mm is optional )
Sample size
(10, 7.5, 5 mm) x 10 mm x 55 mm
Cutting mode
Hydraulic
Journey of broach
V2, U2, U3 350mm; U5 380mm
Broaching Speed
2.5 m/min
Broach material
W18 Cr4V
Power supply
220V 60Hz 400W
Max. Dimension
660x500x1240mm
Weight
200kg
Recommend Products
CST-50

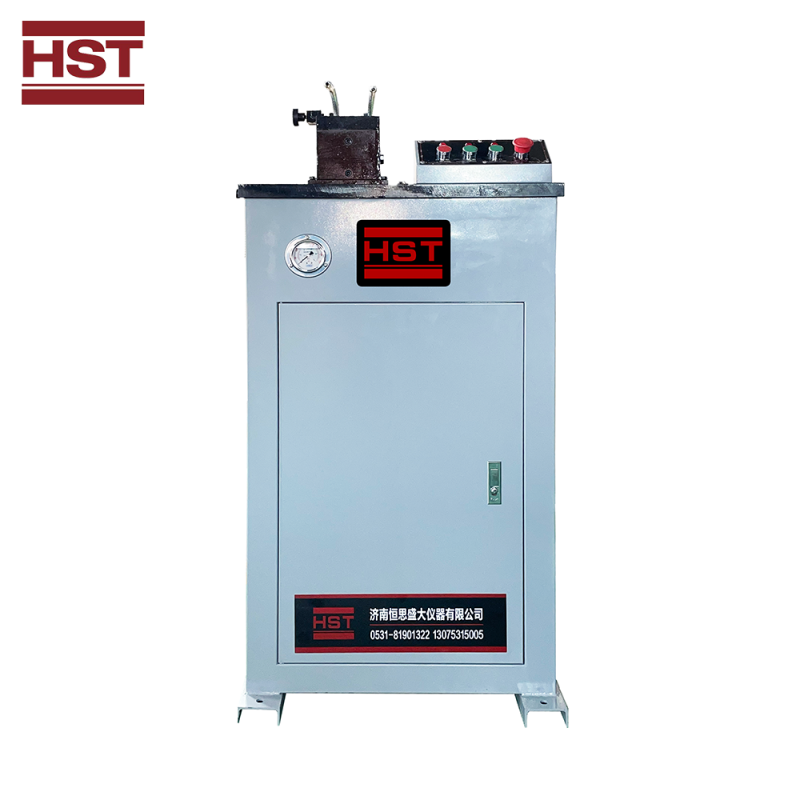

VU-2Y
DWC -40/60/80/100

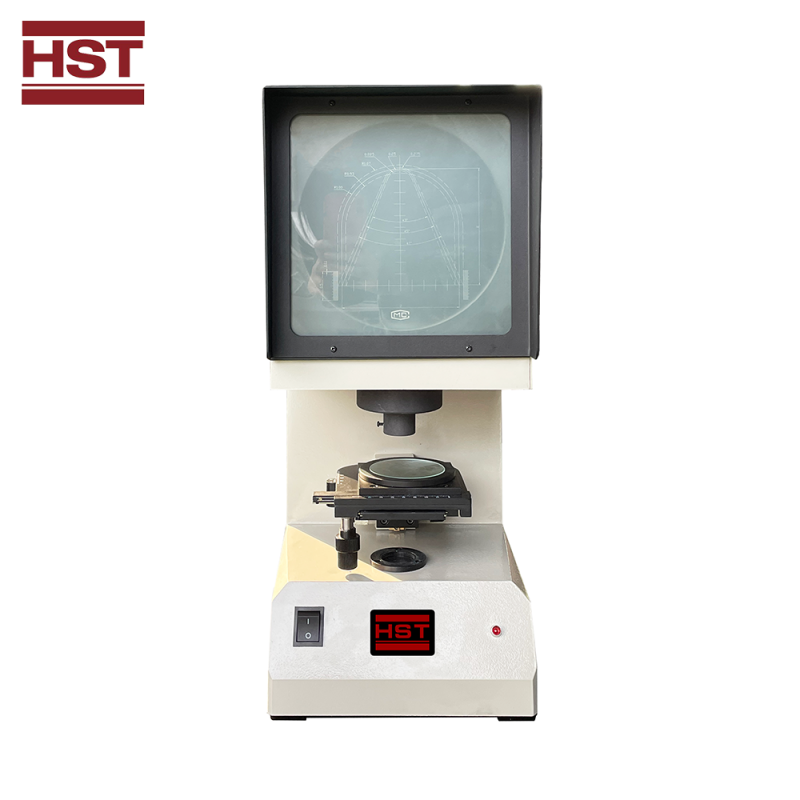

   Projector for Impact Specimen
Electric Hydraulic Broaching Machine

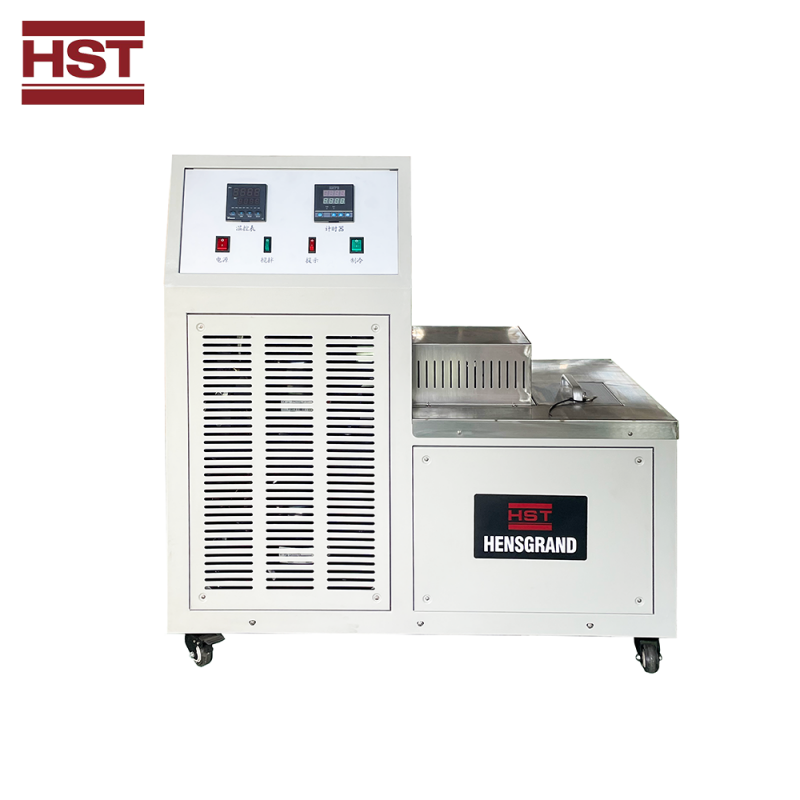

impact test temperature chamber
