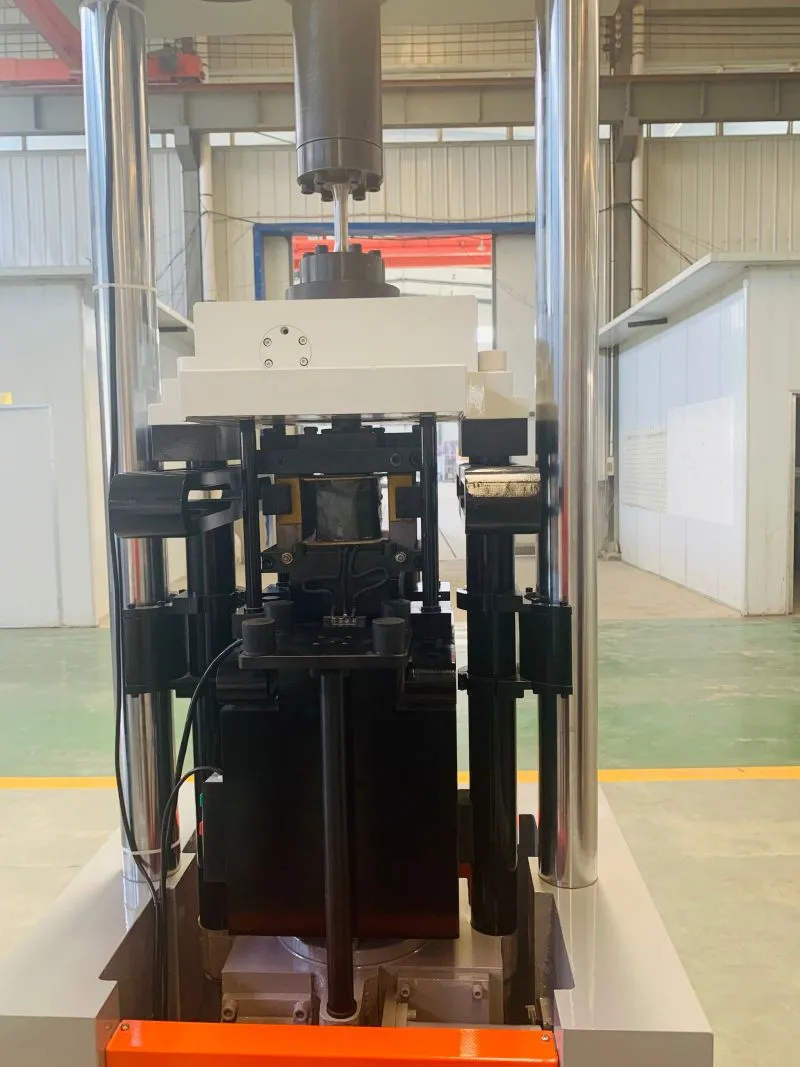

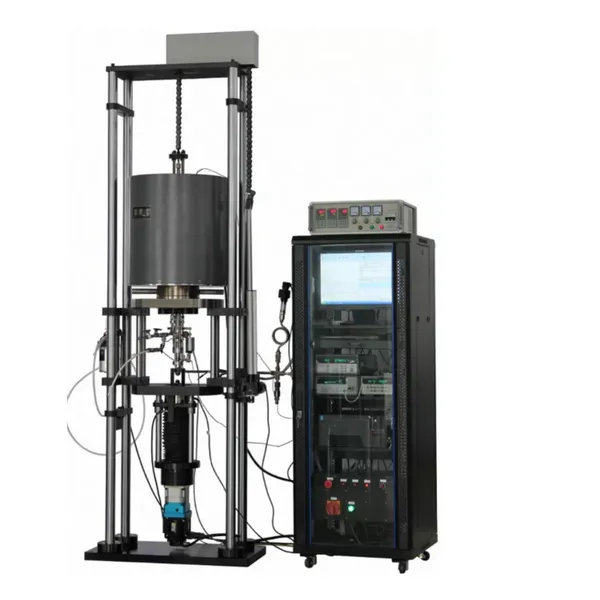

High temperature gas corrosion testing machine
Introduction:
High temperature gas corrosion testing machine is used for metal materials, parts, components, components and other metal materials, non-metallic materials, alloy materials, composite materials, under the combined action of persistent tensile stress (working stress, thermal stress, residual stress, etc.) and corrosive medium Constant rate tensile test, enduring tensile test, constant load creep test, corrosion fatigue test, corrosion stress cracking compression, corrosion crack growth test, crack growth test test and research.
Application:
Applicable metal, pipe fittings, components (casing, tubing, plain end casing, liner, short section, welded steel pipe, seamless steel pipe, buried pipe, condenser tube, brass, aluminum alloy, stainless steel, steel cable, high pressure Gas cylinders, steel cylinders).
Simulated environment (transporting oil and gas, drilling, logging, workover, formation fracturing process, ocean, space, underground, mine).
Corrosion Fatigue Test;
(SSRT) Slow strain rate test;
Sulfide stress corrosion test (SSC);
Stress corrosion test (SCC);
Hydrogen-induced cracking test (HIC);
Slow strain rate stress corrosion test (SSRT);
Stress-directed hydrogen induced cracking test (SOHIC);
Full metal immersion test for uniform corrosion;
Corrosion resistance test;
Pitting corrosion test;
Intergranular corrosion test;
Crevice corrosion test;
Galvanic corrosion test;
High temperature and high pressure corrosion test
Technical parameter:
| Model | HST-300 | HST-500 | HST-1000 | |
| Load Capacity (kN) | Static | 300 | 500 | 1000 |
| 1.1 | Dynamic | 300 | 500 | 1000 |
| Frame | Four columns | |||
| Measurement Accuracy | Load | ±1.0% of Reading | ||
| 1.2 | Displacement | ±1% FS of Each File | ||
| 1.3 | Deformation | ±1% of Reading | ||
| Range Of Frequency | 0.01~ 15Hz /20Hz/30Hz | |||
| Amplitude(mm) | ±50 | |||
| Effective width between Columns(mm) | 650*500 | 850*600 | 950*700 | |
| Test space(mm) | 1000 | 1500 | 1500 | |
| Compression plate diameter size(mm) | 200mm | |||
| Resolution of displacement, (mm) | 0.001 | |||
| Resolution of loading, (kN) | 0.001 | |||
| Power supply | 380V , 50hz, three phase | |||
|
|
|
|
|
