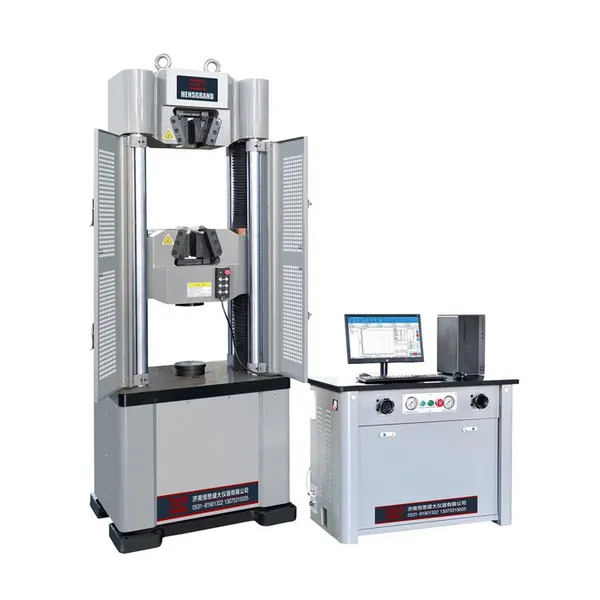

30T Computer Hydraulic Universal Testing Machine 300 Kn Hydraulic Auto Clamping Fixture HST WEW-300E
US$ 6700 - 8280
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2000kN Digital Display Hydraulic Universal Testing Machine Tensile Space:1250mm 2000KN HST WE-2000DUS$ 23500 - 28200MOQ: 1 Set -
HST 120T 1200kN Digital Display Hydraulic Universal Testing Machine 1200KN 6 Columns Frame Tensile Space:930mm HST WE-1200DUS$ 13500 - 16000MOQ: 1 Set
-
HST 100T 1000kN Digital Display Hydraulic Universal Testing Machine 1000KN 6 Columns Frame, Tensile Space:950mm HST WE-1000DUS$ 7800 - 9000MOQ: 1 Set
-
HST 600kN Digital Display Hydraulic Universal Testing Machine 600KN 6 Columns Frame, Tensile Space:780mm HST WE-600D 60TUS$ 6000 - 7500MOQ: 1 Set
-
HST 300kN Digital Display Hydraulic Universal Testing Machine 300KN 6 Columns Frame Tensile Space:680mm HST WE-300D 30TUS$ 5600 - 7000MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
2.75KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Hydraulic Universal Testing Machine
Model
HST WEW-300E
Load Capacity
300kN
Calibration standard
Class 1
Testing load Accuracy
±1%
Load Measuring Range
2%~100%FS
Load Resolution
1/500,000 of FS
Manual displacement control speed rang
0~300mm/min
Power supply
2.75kW, 3 phase, AC380V±10%, 50Hz
HST WEW-300E 300kN Computer Display
Hydraulic Universal Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
WEW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
* Metals:wire, rod, tube, strip, plate, strip
* Fasteners:tensile, proof, single and double shear
* Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.
Applied Standards:
* Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
* Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
WEW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
* Metals:wire, rod, tube, strip, plate, strip
* Fasteners:tensile, proof, single and double shear
* Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.
Applied Standards:
* Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
* Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications:
Product Model |
HST WEW-300E |
|
Number of columns |
6 (4 columns and 2 screws) |
|
Load Capacity |
300kN |
|
Load Capacity |
30000kgf |
|
Calibration standard |
ISO 7500 |
|
Calibration standard |
Class 1 |
|
Testing load Accuracy |
±1% |
|
Load Measuring Range |
2%～100%FS |
|
Load Resolution |
1/500,000 of FS |
|
Manual displacement control speed rang |
0～300mm/min |
|
Displacement measurement resolution |
0.01mm |
|
Displacement measurement accuracy |
Better than ≤±0.5% |
|
Deformation measuring range |
1%～100%FS |
|
Deformation resolution |
1/500000FS of the max deformation |
|
Deformation accuracy |
≤±0.5% of Indicating Value |
|
Overload Protection |
≥5% of Full Range |
|
Main frame parameters |
||
Max. Tensile Testing Space |
780mm |
|
Max. Compression Testing Space |
550mm |
|
Column center space |
485mm |
|
Column diameter |
Φ60mm |
|
Max. Piston stroke |
200mm |
|
Piston diameter |
Φ130mm |
|
Loading rate range |
0.02%-2%FS |
|
Max speed of piston moving without load |
300 mm/min |
|
Cross beam adjustment for max speed |
About 220 mm/min |
|
Cross beam moving motor power |
0.4KW |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
Hydraulic servo oil source parameters |
||
Max. pressure |
25MPa |
|
Max. oil pump flow |
4 L/min |
|
Oil filter accuracy |
10um |
|
Main oil pump motor power |
2.2KW |
|
Oil tank capacity |
50L |
|
Accessory parameters |
||
Clamping mode |

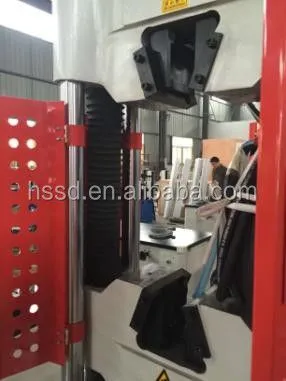

Built-in wedge type hydraulic automatic clamping |
|
Overall dimensions of the jaws |
90x90mm |
|
Round specimen clamping range |
Φ6-13mm, Φ13-26mm, Optional:Φ26-40mm; |
|
Flat specimen clamping thickness |
0-20mm;Optional:20-40mm |
|
Compression plate dimensions |
Φ160mm |
|
Machine parameter |
||
Load frame dimension |
745x685x1900mm |
|
Oil power dimension |
1000x600x780mm |
|
Total weight |
1450kg |
|
Power supply |
2.75kW, 3 phase, AC380V±10%, 50Hz |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||
Other tensile grip (optional)
Test area for compression /flexural / bending/shear (optional)
In the lower test area, various testing devices may be coupled, such as compression plates, or test devices for flexural, bending.punching, etc.
