Home > Instruments & Meters > Test Instrument > Test Machine > WDW-3E 3000n Computer Paper Fiber Cloth Plastic Film Tensile Tester

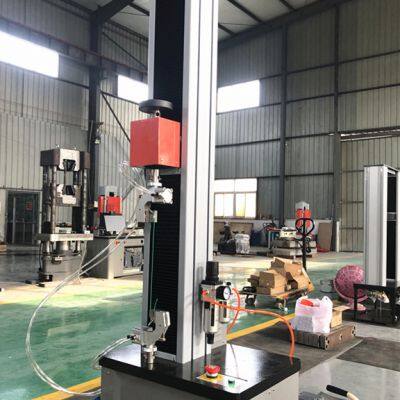

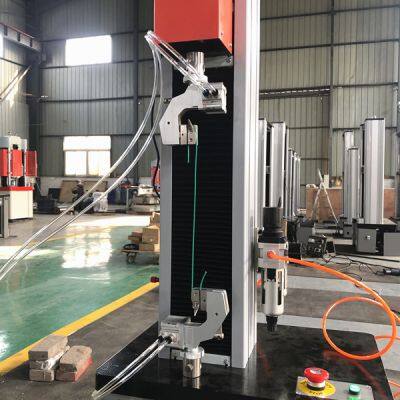

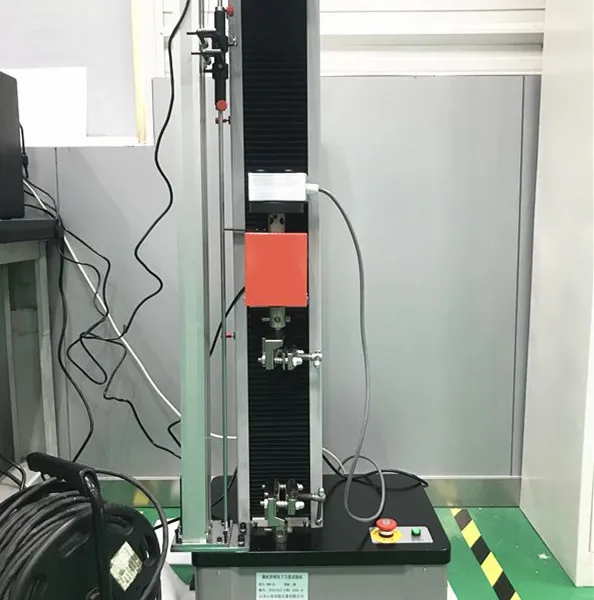

WDW-3E 3000n Computer Paper Fiber Cloth Plastic Film Tensile Tester
US$ 1500 - 1800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Electronic Tensile Testing Machine
Maximum Compressive Space:
600 mm
Maximum Tensile Space:
600 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WDW-02E 200N/1000N/5000N Yarn Tensile Strength TesterUS$ 22393.28MOQ: 1 Set -
ASTM 4 10kN 20kN 50kN 100kN 200kN 300kN Computer Universal Steel Tensile Strength Testing MachineUS$ 33589.92 - 34289.71MOQ: 1 Set
-
WDW-600E 60t 600KN Computerized Electronic Universal Tensile Testing EquipmentUS$ 21999 - 29999MOQ: 1 Set
-
HST Hot Selling Fiber Equipment Universal Testing Machine Modulus of ElasticityUS$ 38488.45 - 45486.35MOQ: 1 Set
-
0-20KN Two Column Tensile Testing Machine Compression Tester Bend Test Machine PriceUS$ 33589.92 - 34289.71MOQ: 1 Set
Maximum Compressive Space
600 mm
Maximum Tensile Space
600 mm
Model Number
WDW-01 02 1 2 3 5E
Brand Name
HST
Place of Origin
Shandong, China
Crossbeam Displacement Accuracy
±0.01 mm
Power Supply
220 V
Product name
WDW-3E 3000n tensile tester for plastic film
Test material
Rubber, plastic, fiber, film,polymer, woven, etc
Structure
Single Column
Function
Tensile Compression Bending test
Standard
BS.EN.ASTM
Color
White or blue or OEM
Application
0.5 class
tensile space
600mm
grip
ripple, wedge, winding grip, etc
Power
Electronic
Products Description
WDW-02E 200N/1000N/5000N yarn tensile strength tester
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Technical parameter:
Model |
WDW-02E |
WDW-05E |
WDW-1E |
WDW-2E |
WDW-5E |
||||
Structure |
Single column double spaces |
||||||||
Max. Load(N) |
200 |
500 |
1000 |
2000 |
5000 |
||||
Material |
All aluminum alloy surface spray painting shell |
||||||||
Load accuracy |
ISO 7500 Class 0.5 |
||||||||
Load range |
0.2%～100%F ·S |
||||||||
Load resolution |
1/ 30000 |
||||||||
Resolution of displacement |
0.01mm |
||||||||
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
||||||||
Speed accuracy |
within ±1% set speed |
||||||||
E-Tensile space(mm) |
600 (can be customized) |
||||||||
E-Compression space(mm) |
600 (can be customized) |
||||||||
D-Test width(mm) |
100 |
||||||||
F-Beam travel distance(mm) |
772 |
||||||||
H-Workbench thickness(mm) |
26 |
||||||||
G-Base height(mm) |
158 |
||||||||
Power supply |
AC220V±10% ，50Hz/60Hz(can be customized) |
||||||||
operating video link |
https://youtu.be/HY7xD6LTbug |
||||||||
