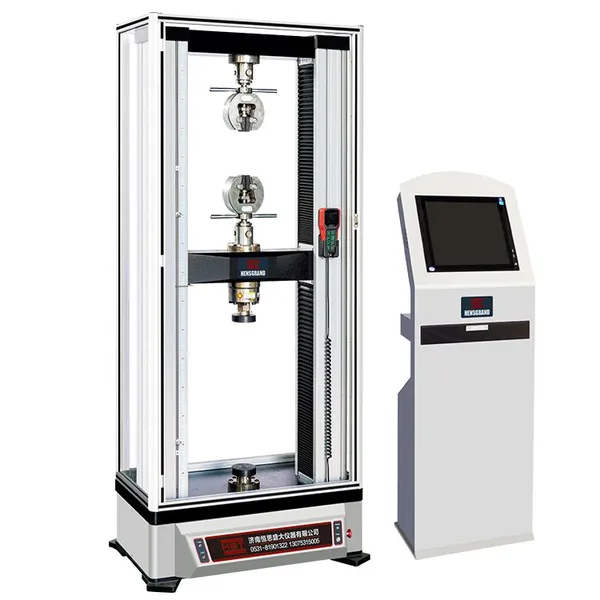

5kN-100kN 10Ton Computer Controlled Electronic Universal Tensile Testing Machine Price
US$ 27991.60
1 - 4 Set
US$ 26592.02
≥5 Set
Key Specifications
Get Latest Price
Warranty:
1 Year
Model Number:
WDW- 10/ 20/30/50/100/200/300E
Brand Name:
Hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Electronic Universal Material Testing Machine 10KN-600KN Tensile Testing MachineUS$ 24492.65MOQ: 1 Set -
HST WDW Computer Control Electronic Universal Testing Machine With DBX-800 Large Deformation ExtensometerUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST Updating Computerized Electronic Universal Testing Machine Electrical Load Test EquipmentUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST WDW-20E Universal Tensile Test Laboratory Equipment for Plastic Tensile Test 20kn Universal Testing Machine PriceUS$ 38488.45 - 48985.30MOQ: 1 Set
-
Tension Spring Tensile Fatigue Testing Machine Exceed Electronic Equipment Digital Electronic Gold Tester Metal & Non-metal 20KNUS$ 41987.40 - 48985.30MOQ: 1 Set
Warranty
1 Year
Model Number
WDW- 10/ 20/30/50/100/200/300E
Brand Name
Hensgrand
Place of Origin
Shandong, China
Product name
10Ton Electronic Universal Tensile Testing Machine Price
Test force
10 / 20/ 30/ 50/ 100/ 200/ 300KN
Load Accuracy
±1% or ±0.5%
resolution of load
1/300000 of full scale
Tensile Test Space
650mm
Grips
Manual Grip or Hydraulic Grip
Power supply
220V/380V/110V, 50-60HZ
Application
Leather, textile, metal,wire etc.
resolution of deformation measurement
2%-100%
Certification
CE ISO
Customized support
OEM, ODM, OBM
Power
Electronic
Products Description
WDW-10E 5kn 10kn 20kn servo motor universal testing machine
Application:
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Device
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. |
Items |
Model |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
WDW-100E |
||||
1 |
Host |
Structure |
column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||||
Tensile space(mm) |
670 |
700 |
770 |
650 |
|||||||
Compression space(mm) |
900 |
1000 |
1000 |
1000 |
|||||||
Effective test width |
450 |
450 |
450 |
550 |
|||||||
size(mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
840 x 570 x 1850 |
950x660x2000 |
|||||||
Host Weight (mm) |
370kg |
420kg |
420kg |
680kg |
|||||||
Power Supply |
220V/50-60Hz |
||||||||||
