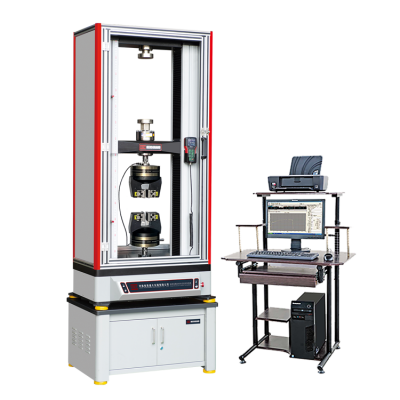

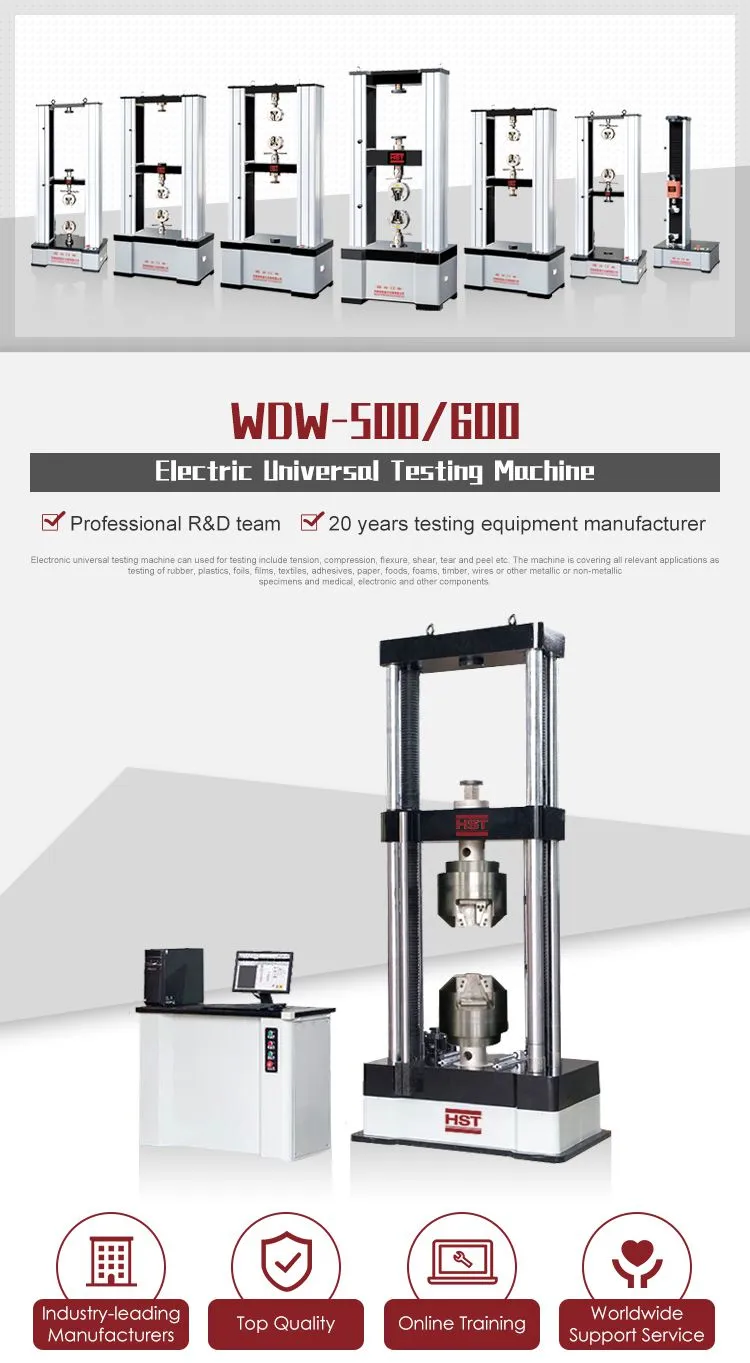

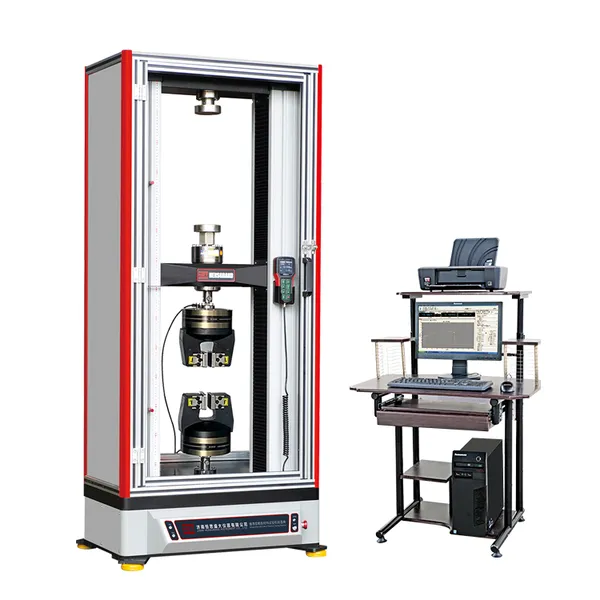

WDW- 600E 60t 600KN Computer Electronic Universal tensile testing machine
1. Application:
WDW-Eused universal testing machine are designed and manufacture according to
ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research
and development, test institutes and training centers etc.
2. Main Specifications: used universal testing machine
|
Model |
WDW-200E WDW-200 |
WDW-300E WDW-300 |
WDW-500E WDW-500 |
WDW-600E WDW-600 |
|
Max. Load |
200kN 20000kgf 44800lbf |
300kN 30000kgf 67200lbf |
500kN 50000kgf 112000lbf |
600kN 60000kgf 134400lbf |
|
Load accuracy |
≤±0.5% |
|||
|
Load range |
0.2%-100% of full scale |
|||
|
Load resolution |
1/500000 of full scale |
|||
|
Disp. resolution |
0.01mm |
|||
|
Test speed |
0.01-200mm/min |
|||
|
Tensile space |
600mm|21.6in |
|||
|
Comp. space |
600mm|21.6in |
|||
|
test width |
600mm |
600mm |
570mm |
570mm |
|
Grips |
Manual(Hydraulic grip optional) |
Hydraulic grip |
||
|
Dimension |
1110×750×2560mm |
1110×780×2600mm |
||
|
round specimen |
Φ9-Φ26mm |
Φ9-Φ32mm |
||
|
flat specimen |
0-20mm |
0-20mm |
||
|
Power supply |
380V, 3ph, 3KW |
380V, 3ph, 4KW |
||
|
Weight (kg) |
2100kg|4620lb |
2500kg|5500lb |
||
3.Feature: used universal testing machine
3.1 Main Unit:
This machine adopt double space structure, the upper space used for tensile test, the lower space used for compression and bending test. The beam moving speed is stepless adjust. The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.
