Home > Instruments & Meters > Test Instrument > Test Machine > HST Electronic Auto UTM Material Steel Universal Tensile Testing Machine for Tension Abrasion Torsion Bending Fatigue Strength

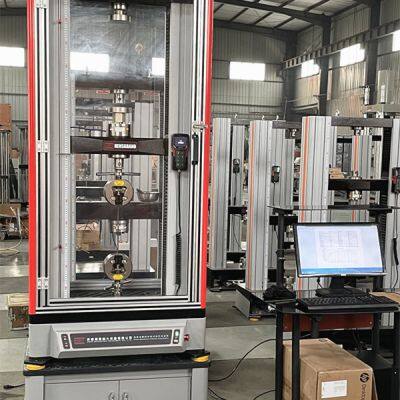

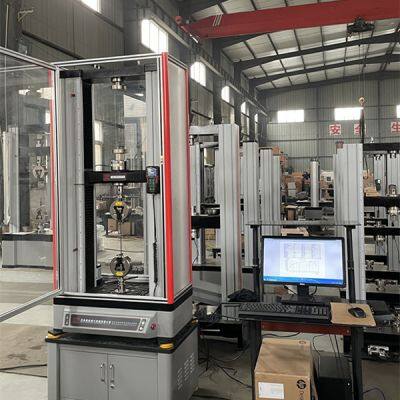

HST Electronic Auto UTM Material Steel Universal Tensile Testing Machine for Tension Abrasion Torsion Bending Fatigue Strength
US$ 55983.20
1 - 4 Set
US$ 41987.40
≥5 Set
Key Specifications
Get Latest Price
Type:
Electronic Tensile Testing Machine, high quality universal tensile test equipment
Maximum Compressive Space:
900 mm
Maximum Tensile Space:
750 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WDW-1000E 1000kn Computer Control Electromechanical Universal Tensile Testing MachineUS$ 70000 - 72000MOQ: 1 Set -
HST 100KG 50KG 300KG Composite Material Tensile Testing Machine High Accuracy Tensile Strength Tester Terminal Testing MachineUS$ 20993.70 - 24492.65MOQ: 1 Set
-
HST Electronic Auto UTM Material Steel Universal Tensile Testing Machine for Tension Abrasion Torsion Bending Fatigue StrengthUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST 200Kn Universal Multi-speed Load Frame for Material Testing MachineUS$ 38488.45 - 48985.30MOQ: 1 Set
-
WDW-5E 200N/1000N/5000N Electric Universal Tensile Testing MachineUS$ 21693.49MOQ: 1 Set
Maximum Compressive Space
900 mm
Maximum Tensile Space
750 mm
Brand Name
HST
Place of Origin
Shandong, China
Crossbeam Displacement Accuracy
±0.01 mm
Power Supply
220 V
testing force
10kN-600kN 1Ton-60Ton
fixture clamp method:
manual clamp(hydraulic auto clamp)
Load range
2%-100% of full scale
Load resolution
1/200000 1/500000 of full scale
Disp. resolution
0.01mm
test speed
0.05-500mm/min
Tensile space
750mm
Compression space
750mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. | Items | Model | WDW-10E | WDW-20E | WDW-30E | WDW-50E | WDW-100E | ||||
1 | Host | Structure | column and 2 Ball Screw | ||||||||
Max. Load(kN) | 10 | 20 | 30 | 50 | 100 | ||||||
Tensile space(mm) | 670 | 700 | 770 | 650 | |||||||
Compression space(mm) | 900 | 1000 | 1000 | 1000 | |||||||
Effective test width | 450 | 450 | 450 | 550 | |||||||
size(mm) | 850 x 590 x 1750 | 840 x 570 x 1850 | 840 x 570 x 1850 | 950x660x2000 | |||||||
Host Weight (mm) | 370kg | 420kg | 420kg | 680kg | |||||||
Power Supply | 220V/50-60Hz | ||||||||||
