HST MWW Computerized LVL Mechanical Tester - Surface Bonding, Tensile, Static Bending, GB/T14897
US$ 4500 - 7800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Weight:
320kg
Accuracy:
0.5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital 1KN-10KN Electronic Universal Tester for Rubber & Plastic Materials, Computer ControlUS$ 22393.28 - 24492.65MOQ: 1 Set -
HST-WDW-E Computerized Universal Testing Machine 1KN/5KN/10KN for Rubber/Plastic, ISO 527, ASTM D638US$ 22393.28 - 24492.65MOQ: 1 Set
-
HST WDW-5E 5KN ASTM D429 Rubber to Metal Adhesion Test Equipment Universal Testing MachineUS$ 24492.65 - 31490.55MOQ: 1 Set
-
WDW-E Series Electromechanical Universal Testing Machine 10/20/50/100KN Computer-Controlled Electronic Power 1 Year WarrantyUS$ 6000 - 7500MOQ: 1 Set
-
WDW-100E Electronic Universal Testing Machine Microcomputer Controlled Compression Tensile TesterUS$ 4999 - 5899MOQ: 1 Set
Accuracy
0.5
brand name
HST OR OEM
place of origin
Shandong, China
customized support
OEM, ODM, OBM, Software Reengineering
power
/
Protection Class
/
Voltage
220 V
warranty
1 YEAR
Max testing force(KN)
10/20/30/50/100/200/300
Testing force level
1 Level or 0.5 level
Testing range
0.2%/ 2%--100%FS
Relative error of indicating value
≤±1%
Force resolution
1/300000
Displacement resolution
≤±1%
Displacement resolution(mm)
0.01
Load speed(mm/min)
0.05-500
Power
220V,50Hz,0.5KW
Products Description
Application

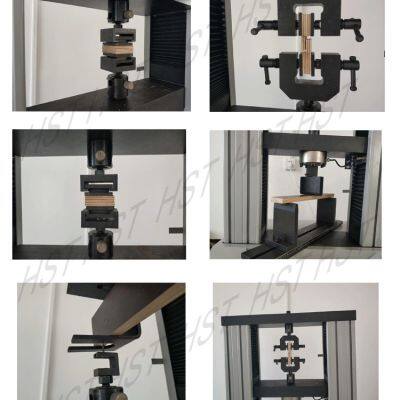

Computer Control Wood-based Panels Universal Testing Machine made for the wood manufacturing and quality supervision station.Can do the following test: Plywood shear test, Surface Bonding Strength Test,Internal Bonding Strength Test, Screw Holding Strength Test, Static Bending Strength and Elastic Modulus Test, Glue strength measurement and tensile strength Test.Test Material: MDF, shaving board, plywood, core-board and other wood based panel.
Standards
EN310, JIS A 5908, GB/T17657-1999, GB 16491-2008, ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications:
Model |
MWW-10E |
MWW-20E |
MWW-30/50E |
MWW-100E |
MWW-200/300E |
||||
Max. Load(kN) |
10 |
20 |
30/50 |
100 |
200/300 |
||||
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
||||
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
||||
Load range |
2%~100%F·S/ 0.2%~100%F·S |
||||||||
Load resolution |
1/500000 |
||||||||
Resolution of deformation |
0.04um |
||||||||
Accuracy of displacement |
Within±0.5%of indicating load |
||||||||
Resolution of displacement |
0.01mm |
||||||||
Motor |
AC servo-motor |
||||||||
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
||||||||
